3Q machine
Product overview

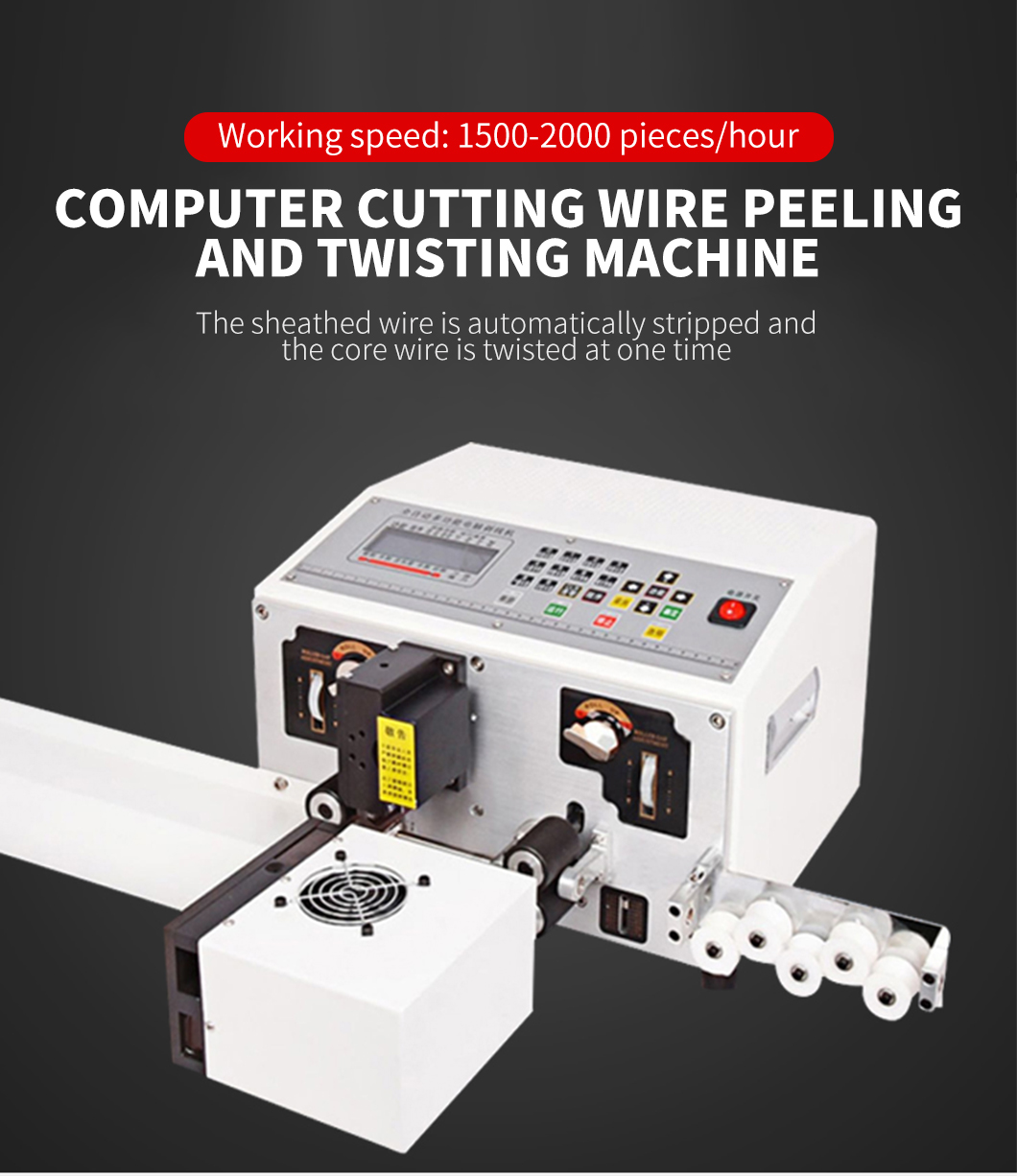

Product name：Computer cutting wire peeling and twisting machine.

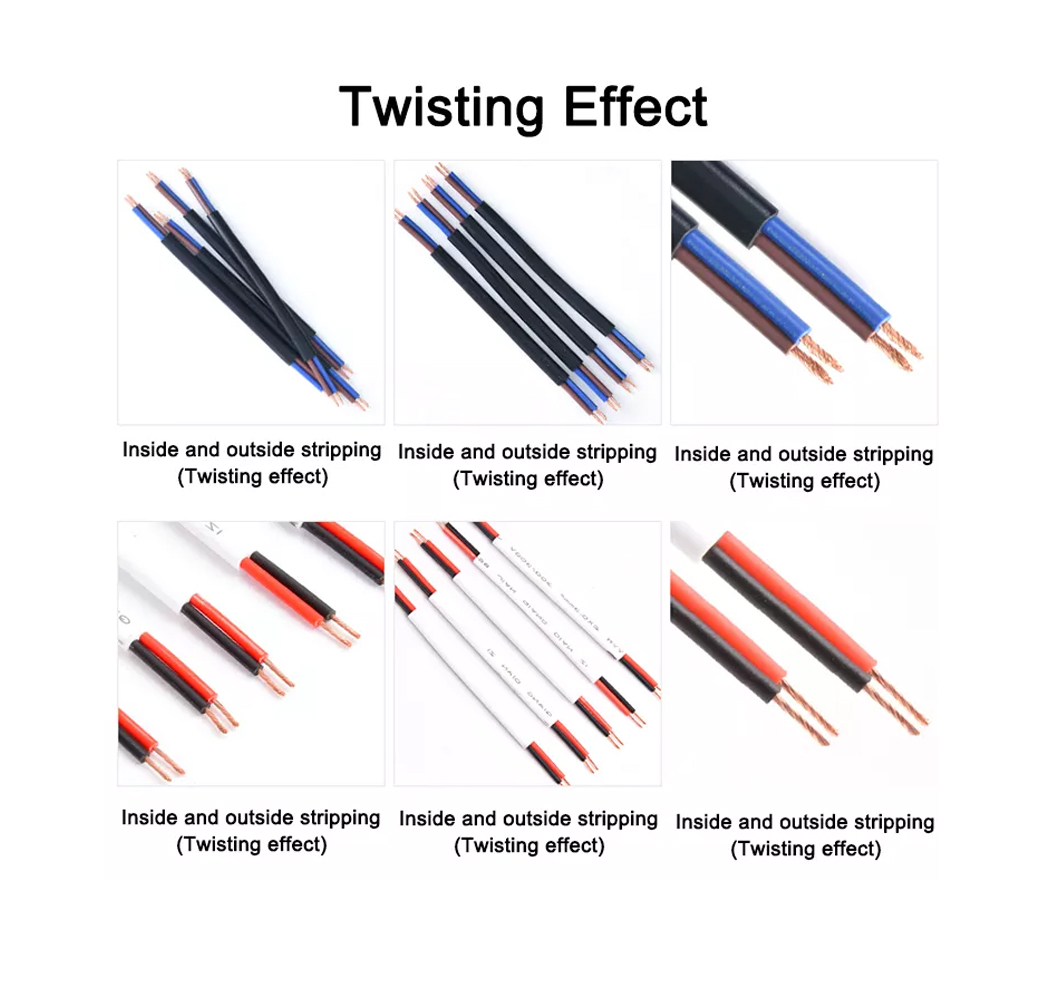

Product characteristic: The sheathed wire is automatically stripped and the core wire is twisted at one time)

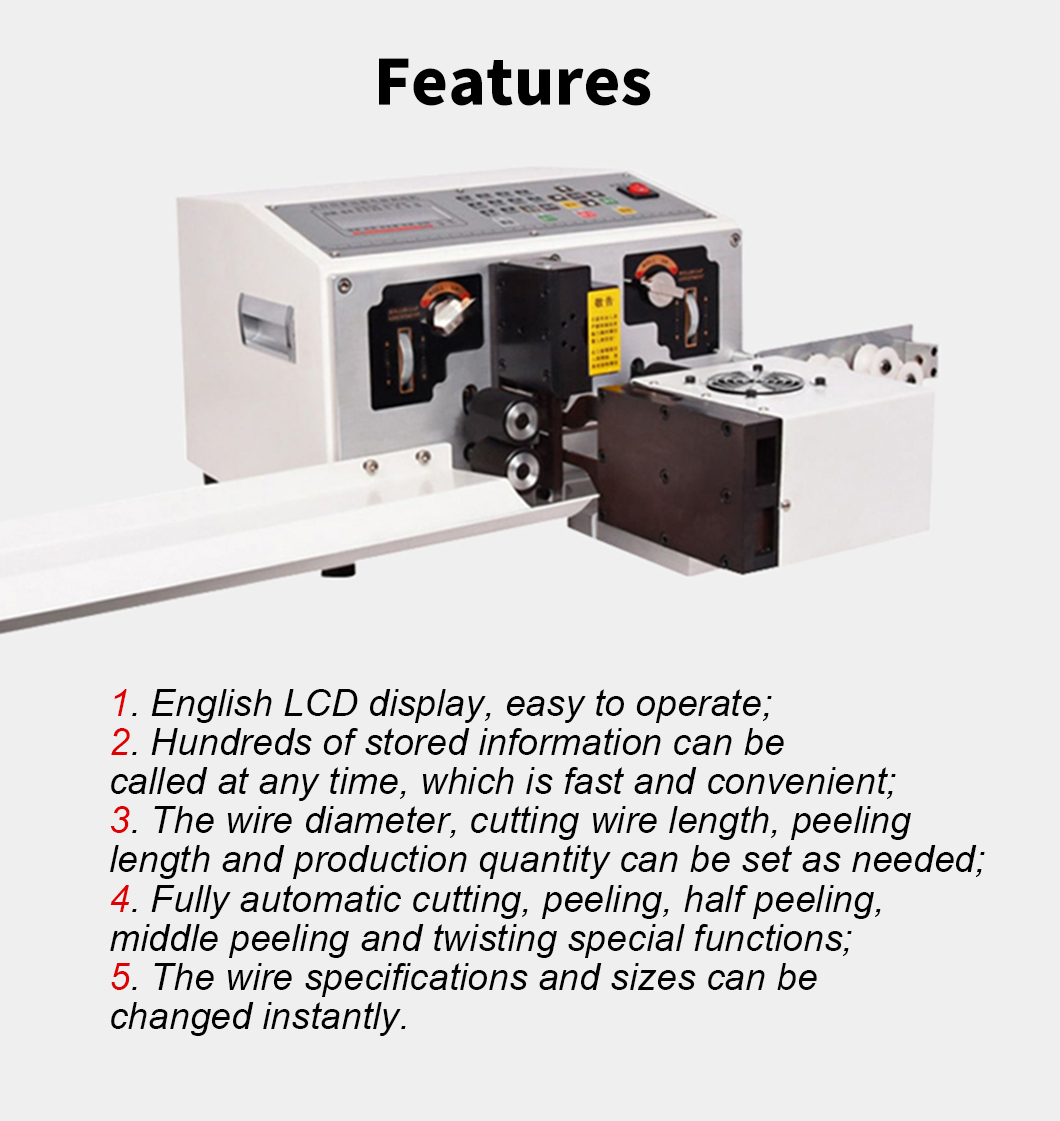

Features:
1. English LCD display, easy to operate.
2. Hundreds of stored information can be called at any time, which is fast and convenient.
3. The wire diameter, cutting wire length, peeling length and production quantity can be set as needed.
4. Fully automatic cutting, peeling, half peeling,middle peeling and twisting special functions.
5. The wire specifications and sizes can be changed instantly.

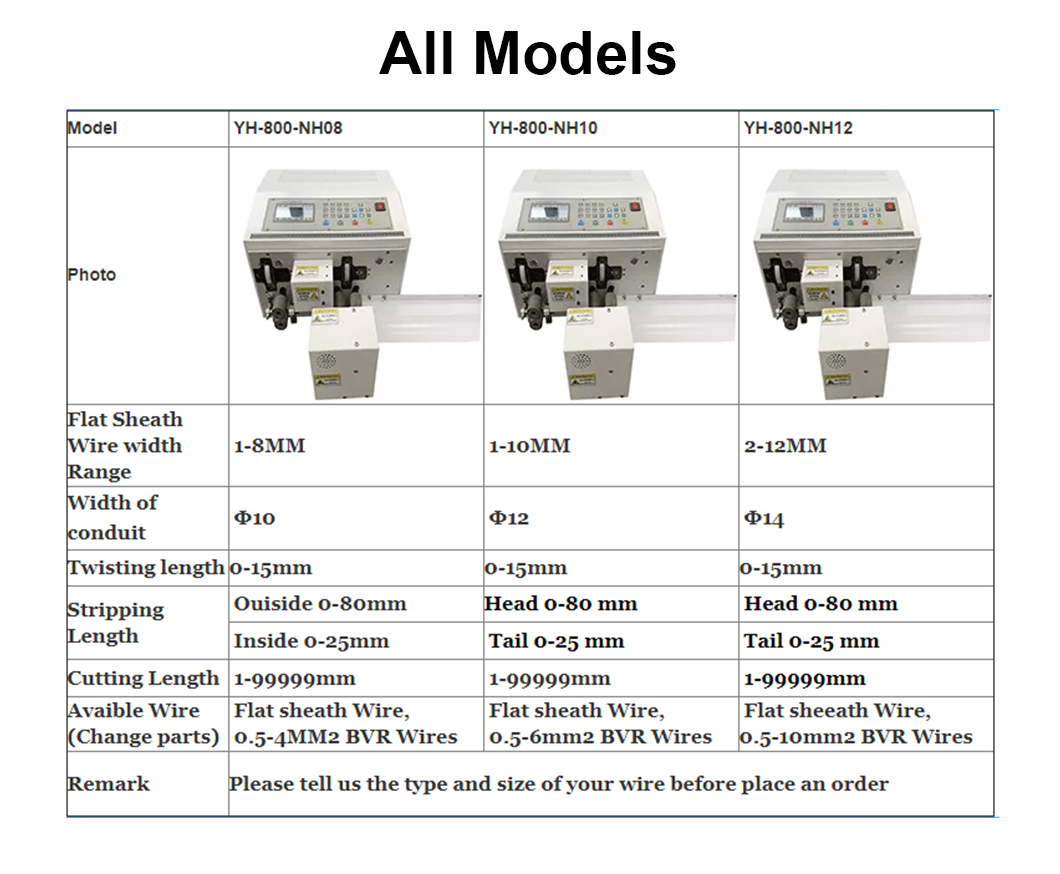

All models of Computer cutting wire peeling and twisting machine:
Model 1: YH-800-NH08
Flat sheath wire width range:1-8MM
Width of conduit:Φ10
Twisting length:0-15mm
Stripping length: outside 0-80mm inside 0-25mm
Cutting length:1-99999mm
Available wire(change parts):flat sheath wire, 0.5-4MM2 BVR Wires
Remark：please tell us the type and size of your wire before place an order.
Model 2: YH-800-NH10
Flat sheath wire width range:1-10MM
Width of conduit:Φ12
Twisting length:0-15mm
Stripping length: outside 0-80mm inside 0-25mm
Cutting length:1-99999mm
Available wire(change parts):flat sheath wire, 0.5-6MM2 BVR Wires
Remark：please tell us the type and size of your wire before place an order.
Model 3: YH-800-NH12
Flat sheath wire width range:2-12MM
Width of conduit:Φ14
Twisting length:0-15mm
Stripping length: outside 0-80mm inside 0-25mm
Cutting length:1-99999mm
Available wire(change parts):flat sheath wire, 0.5-10MM2 BVR Wires
Remark：please tell us the type and size of your wire before place an order.

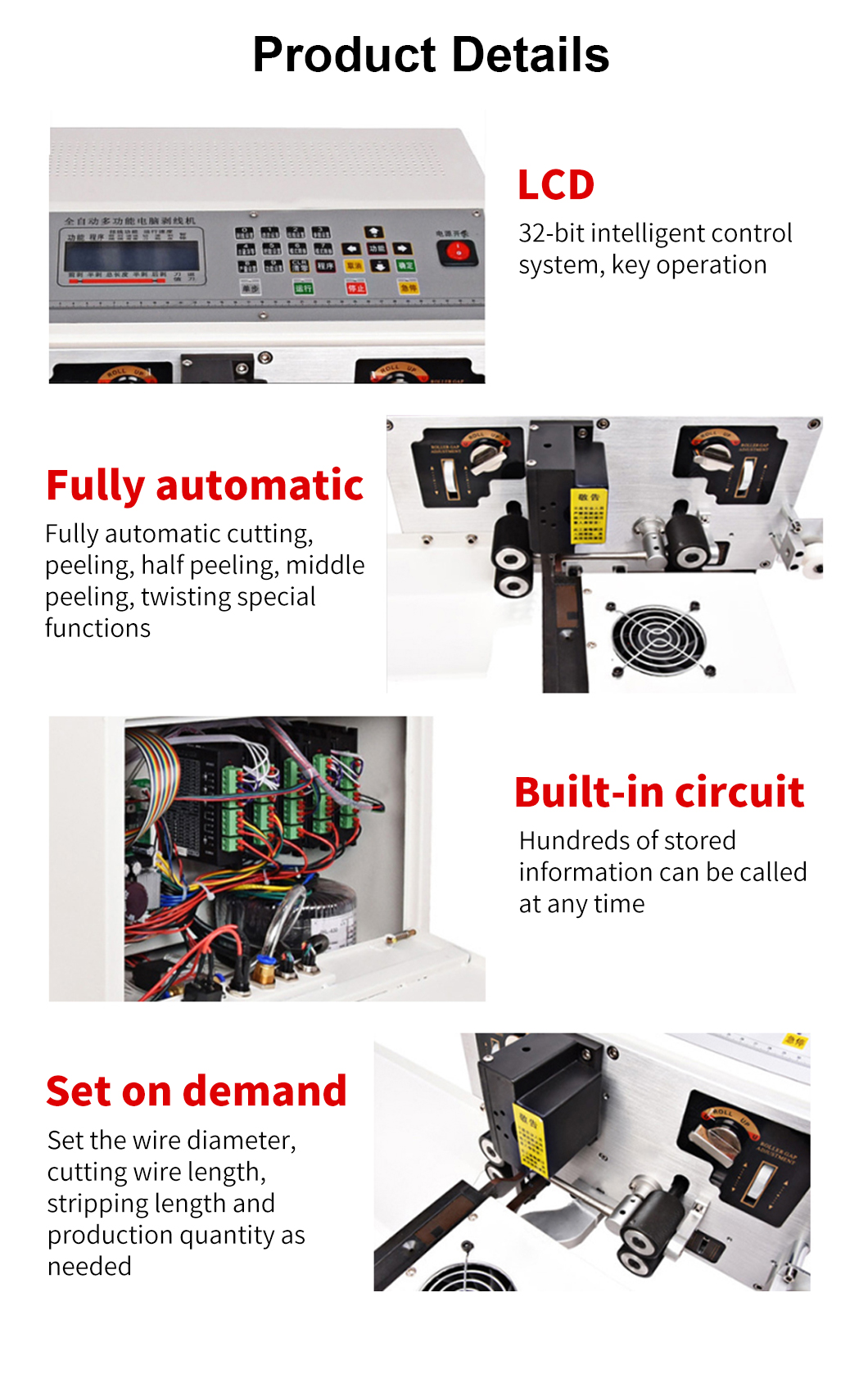

Product details:
1. LCD
32-bit intelligent control system, key operation
2. Fully automatic
Fully automatic cutting,peeling, half peeling, middle peeling, twisting special
functions
3. Built-in circuit Hundreds of stored information can be called at any time
4. Set on demand
Set the wire diameter,cutting wire length, stripping length and production quantity as needed.
Data sheet display
| Equipment model | SQ-BJYJ8114-1 | SQ-BJYJ8114-2 | SQ-BJYJ8114-3 | |
| Equipment function | Line cutting, peeling and middle peeling 200 sections | |||
| Equipment characterisis | Simple operation, high accuracy, suitable for dffterent specifications of wire and external stripping knife | |||
| Overall dimension | 480*420* 280mm | 490*450* 290mm | 46KG | |
| Machine weight | 30kg | 33KG | ||
| Working voltage | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | |
| Cutting length | 1-99999.9mm | 1-99999.9mm | 1-99999.9mm | |
| Stripping Length | The front end is 0-30mm, the middle stripping is 0-40mm, and the rear end is 0-30mm | |||
| Motor power | 420W | 500W | 650W | |
| Processing range | 1.5- 4mm2 | 1.5- 8mm2 | 1.5-16mm2 | |
| Production fficiency | About 2000 pieces 1 h (depending on the length of wood and the number of intermediate strpping sections) | |||
| Intermediate stripping | Paragraph 200 | |||
| Cutting tolerance | Within 0.002xlmm | |||
