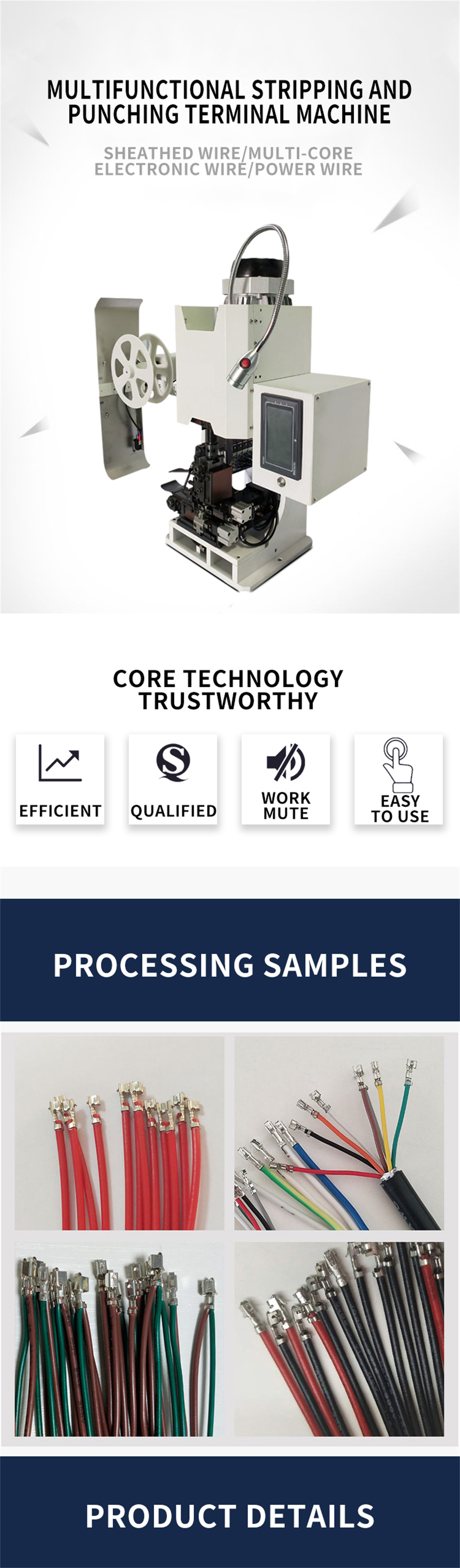

Product overview
Product name:Multifunctional stripping and punching terminal machine.
Processing samples:
Suitable for terminal processing in industries such as electronic and electrical toys, automobiles and motorcycles, suitable DC terminal, AC terminal, single grain terminal, joint terminal, computer terminal, etc.
Features:
1. Core technology trustworthy
2. Efficient
3. Qualified
4. Work mute
5. Easy to use
Product details:

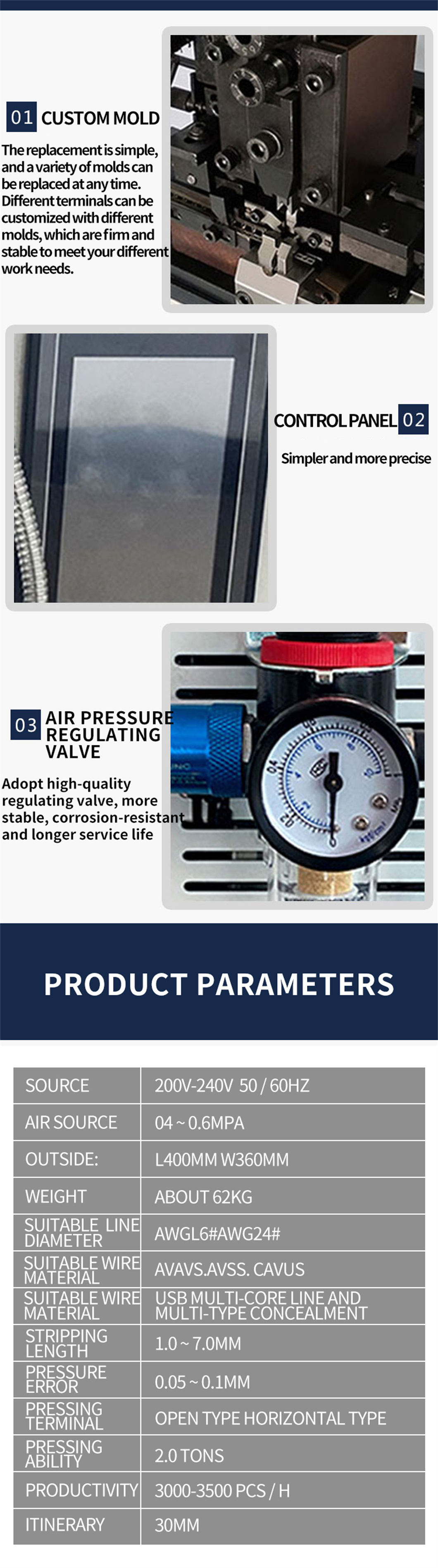

1. custom mold
There placement is simple,and a variety of molds can be replaced at any time.Different terminals can be customized with different molds, which are firm and stable to meet your different work needs.
2. Control panel
Simple and more precise
3. Air pressure regulating value
Adopting high-quality regulating value,more stable,corrosion-resistant and longer service life.

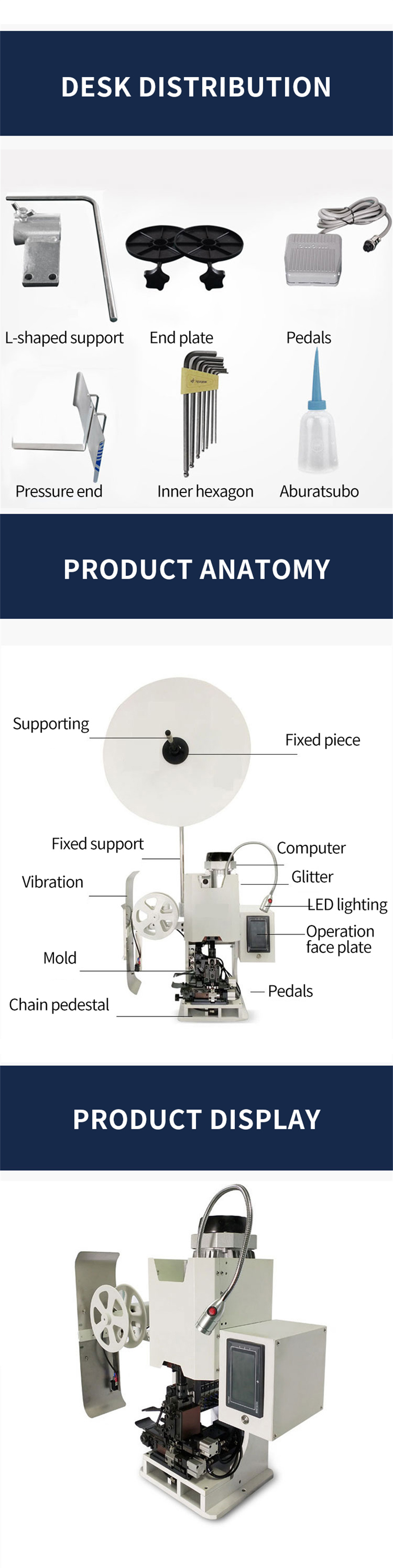

Desk distribution:
1. L-shaped support
2. End plate
3. Pedals
4. Pressure end
5. Inner hexagon
6. Aburatsubo
Product anatomy
1. Supporting
2. Fixed piece
3. Fixed support
4. Vibration
5. Mold
6. Chain pedestal
7. Computer
8. Glitter
9. LED Lighting
10. Operation face plate
11. Pedals
Wire harness industry:
1. Led
2. Grid
3. New energy
4. Telecommunication
5. Air conditioner
6. Medical instruments
7. Smart electronic device
8. New energy vehicles
9. Medical instruments
Data sheet:
| SOURCE | 200V-240V 50 / 60HZ |
| AIR SOURCE | 04 ~ 0.6MPA |
| OUTSIDE | L400MM W360MM |
| WEIGHT | ABOUT 62KG |
| SUITABLE LINE DIAMETER | AWGL 6#AWG24# |
| SUITABLE WIRE MATERIAL | AVAVS.AVSS. CAVUS |
| SUITABLE WIRE MATERIAL | USB MULTI-CORE LINE AND MULTI-TYPE CONCEAL MENT |
| STRIPPING LENGTH | 1.0~ 7.0MM |
| PRESSURE ERROR | 0.05~ 0.1MM |
| PRESEEURE TERMINAL | OPEN TYPE HORIZONTAL TYPE |
| PRESS TERMINAL | 2.0 TONS |
| PRODUCTIVITY | 3000-3500PCS/H |
| ITINERARY | 30MM |
