Product overview

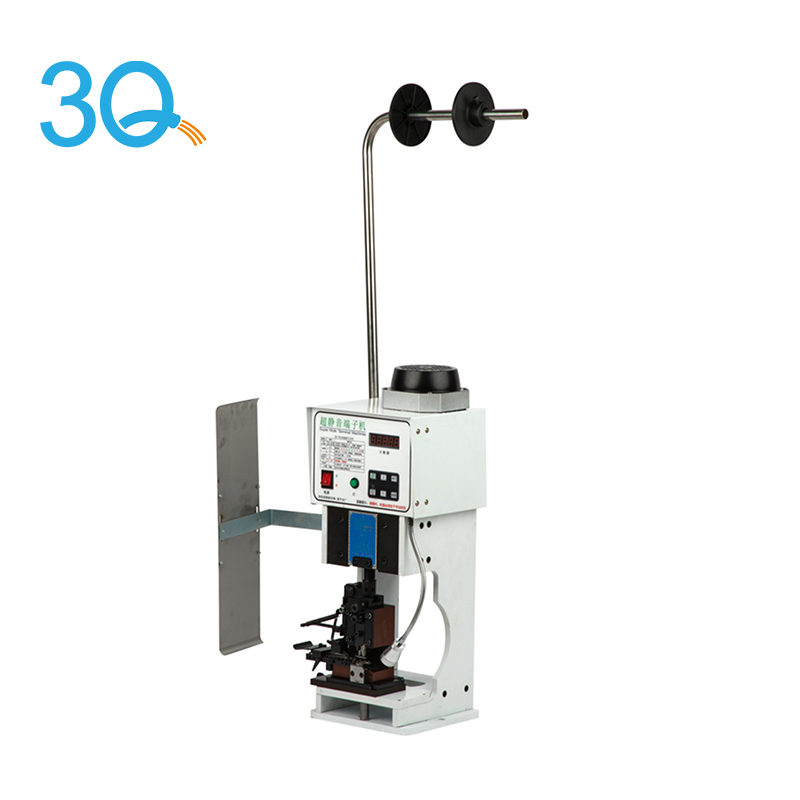

Product name: Mute terminal machine

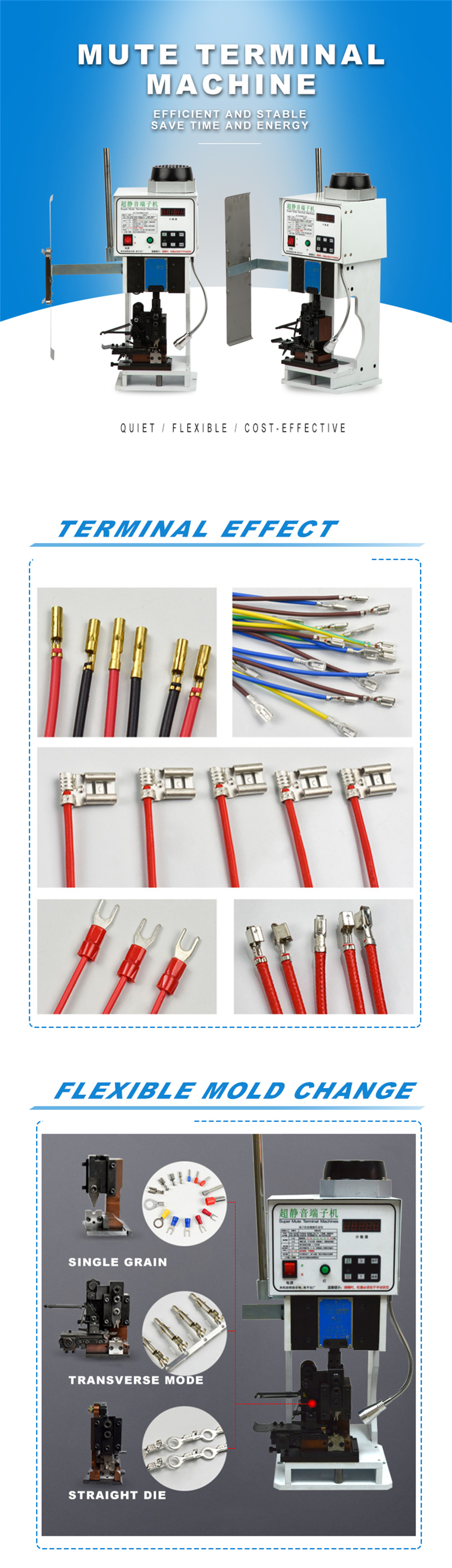

Processing samples:
Suitable for terminal processing in industries such as electronic and electrical toys, automobiles and motorcycles, suitable DC terminal, AC terminal, single grain terminal, joint terminal, computer terminal, etc.
Features:
1. Efficient and stable save time and energy.
2. Quite, flexible and cost-effective.
3. Flexible mold change.
4. Different blade size

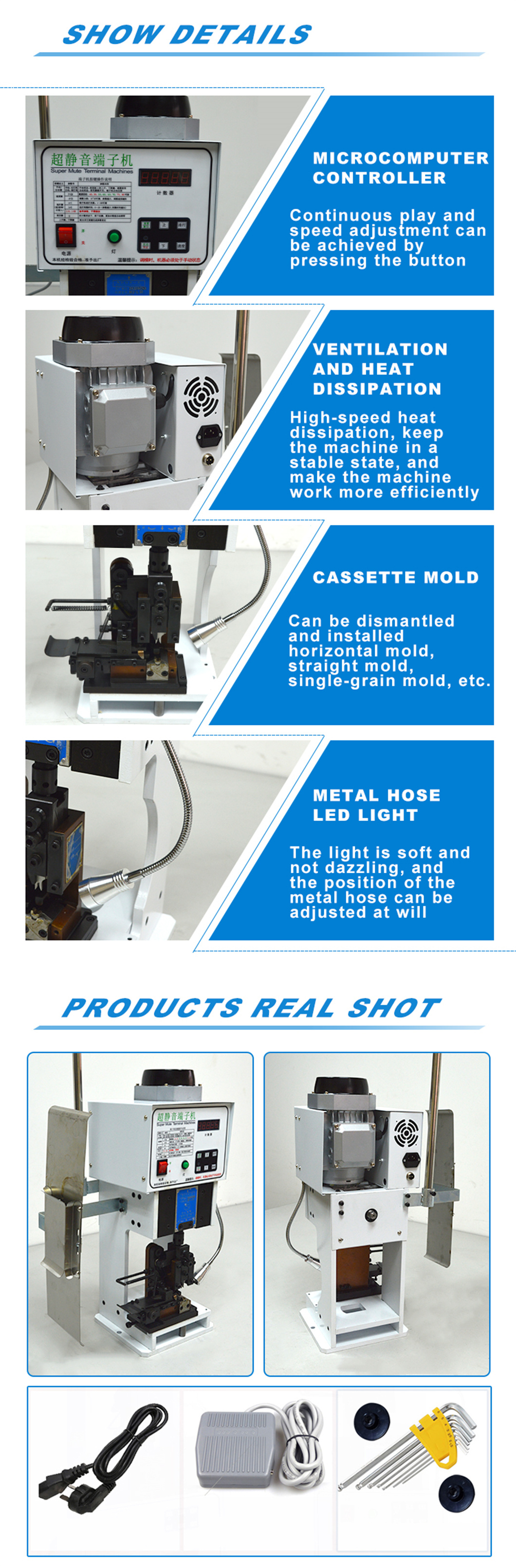

Product details:
1. Microcomputer controller
Continuous play and speed adjustment can be achieved by pressing the button.
2. Ventilation and heat dissipation
High-S peed heat dissipation, keep the machine in a stable state, and
make the machine work more efficiently
3. Cassette mold
Can be dismantled and installed horizontal mold, straight m old,..
single-grain mold, etc.
4. Metal hose led light
The light is soft and not dazzling, and the position of the metal hose can be adjusted at will.

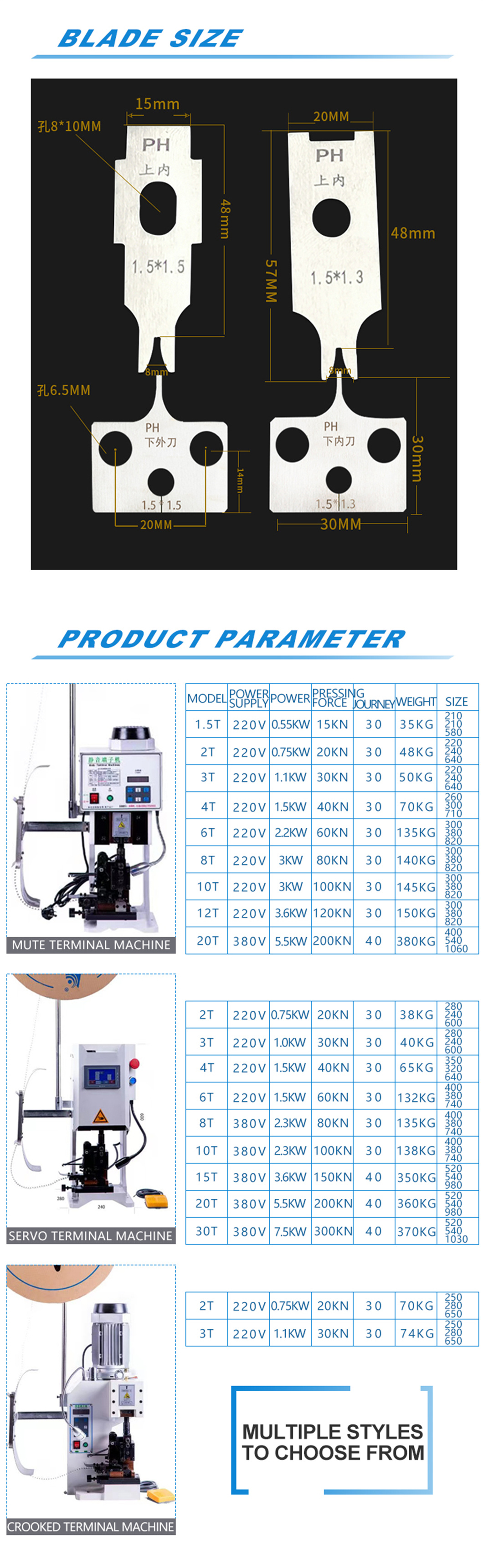

Data sheet:
| product name | Mute terminal machine |
| model | power supply | power | pressing force | journey | weight | size |
| 1.5T | 220V | 0.55KW | 15KN | 30 | 35KG | 210*210*580mm |
| 2T | 220V | 0.75KW | 20KN | 30 | 48KG | 220*240*640mm |
| 3T | 220V | 1.1KW | 30KN | 30 | 50KG | 220*240*640mm |
| 4T | 220V | 1.5KW | 40KN | 30 | 70KG | 260*300*710mm |
| 6T | 220V | 2.2KW | 60KN | 30 | 135KG | 300*380*820mm |
| 8T | 220V | 3KW | 80KN | 30 | 140KG | 300*380*820mm |
| 10T | 220V | 3KW | 100KN | 30 | 145KG | 300*380*820mm |
| 12T | 220V | 3.6KW | 120KN | 30 | 150KG | 300*380*820mm |
| 20T | 220V | 5.5KW | 200KN | 40 | 380KG | 400*540*1060mm |
| product name | Servo terminal machine |
| model | power supply | power | pressing force | journey | weight | size |
| 2T | 220V | 0.75KW | 20KN | 30 | 38KG | 280*240*600mm |
| 3T | 220V | 1.0KW | 30KN | 30 | 40KG | 280*240*600mm |
| 4T | 220V | 1.5KW | 40KN | 30 | 65KG | 350*320*640mm |
| 6T | 220V | 1.5KW | 60KN | 30 | 132KG | 400*380*740mm |
| 8T | 220V | 2.3KW | 80KN | 30 | 135KG | 400*380*410mm |
| 10T | 220V | 2.3KW | 100KN | 30 | 138KG | 400*380*740mm |
| 15T | 220V | 3.6KW | 150KN | 40 | 350KG | 520*5400*980mm |
| 20T | 220V | 5.5KW | 200KN | 40 | 360KG | 520*540*980mm |
| 30T | 220V | 7.5KW | 300KN | 40 | 370KG | 520*540*1030mm |
| product name | Crooked terminal machine |
| model | power supply | power | pressing force | journey | weight | size |
| 2T | 220V | 0.75KW | 20KN | 30 | 70KG | 250*280*650mm |
| 3T | 220V | 1.1KW | 30KN | 30 | 74KG | 250*280*650mm |
