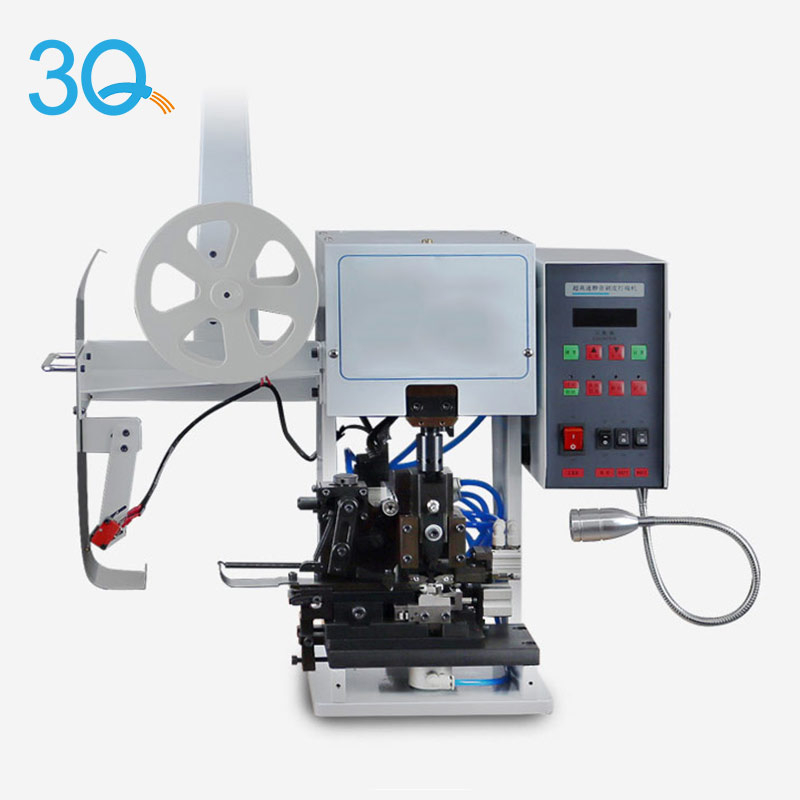

Product name:Multifunctional stripping and punching terminal machine.
Applicable range:applicable to all kinds of horizontal strip terminals ,finished peeling and end,ultra-quiet operation,high crimping accuracy,high production efficiency.
Features:
1. The peeling and punching of the terminal is completed at one time, and the efficiency is almost the same as that of the ordinary terminal machine.
2. The crimping machine is 1.8T, suitable for large and small terminals, no need to worry about pressure
3. The machine adopts Japanese SMC pneumatic and air valve, which has good durability
4. The mechanical adjustment method is simple, fast and fast
5. The appearance design is beautiful, simple and generous, using electromagnetic clutch, no noise
6. Adopt frequency conversion circuit board control, with durable and stable functions, you can use it with confidence
7. It has a device that automatically absorbs waste
8. Precise control of frequency conversion speed motor, low noise, low power consumption, high speed.
9. Stripping and terminal crimping at one time.

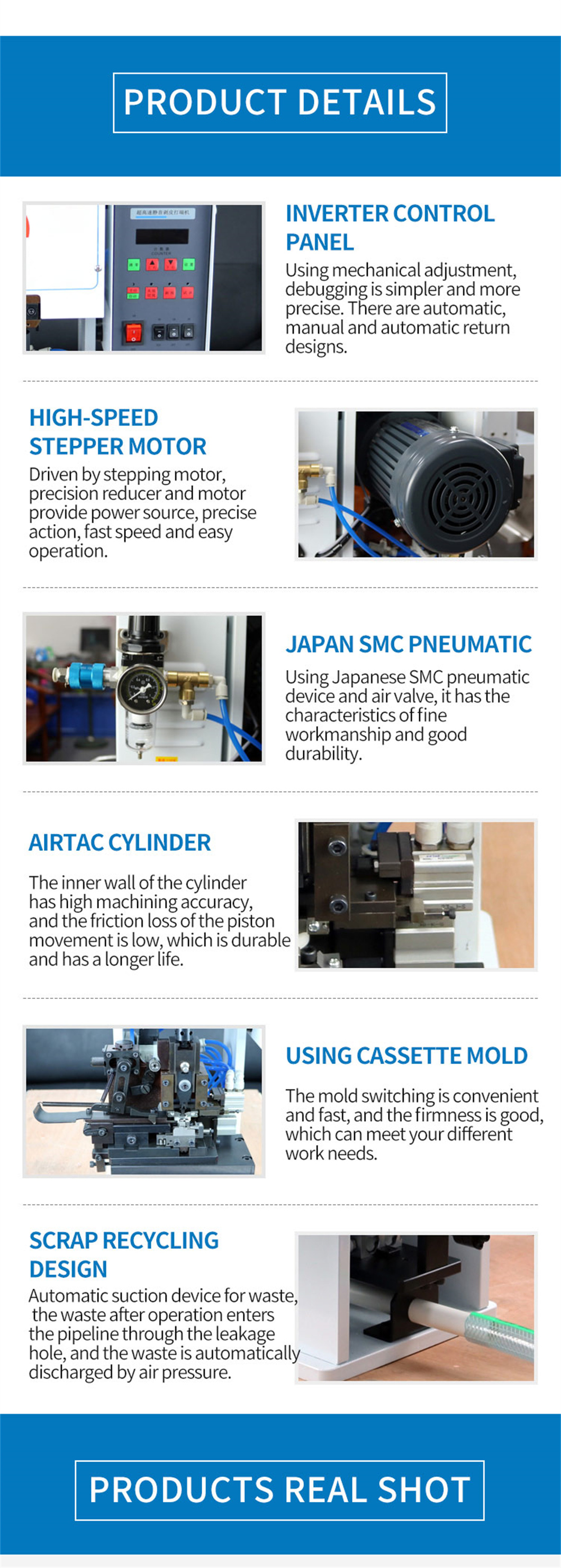

10.INVERTER CONTROL PANEL Using mechanical adjustment, debugging is simpler and more precise. There are automatic,manual and automatic return
designs.
11. HIGH-SPEED STEPPER MOTOR
Driven by stepping motor, precision reducer and motor provide power source, precise action, fast speed and easy operation.
12. JAPAN SMC PNEUMATIC
Using Japanese SMC pneumatic device and air valve, it has the characteristics of fine workmanship and good durability.
13. AIRTAC CYLINDER
The inner wall of the cylinder has high machining accuracy, and the friction loss of the piston movement is low, which is durable and has a longer life.
Using cassette mold
The mold switching is convenient and fast, and the firmness is good,
which can meet your different work needs.
Scrap recycling design
Automatic suction device for waste, the waste after operation enters
the pipeline through the leakage hole, and the waste is automatically
discharged by air pressure.
Random accessories:
1. end plate
2. End plate
3. Trachea
4. Power cable
5. Foot switch
6. Some springs
7. Wrench
8. Hexagonal wrench
Product details:

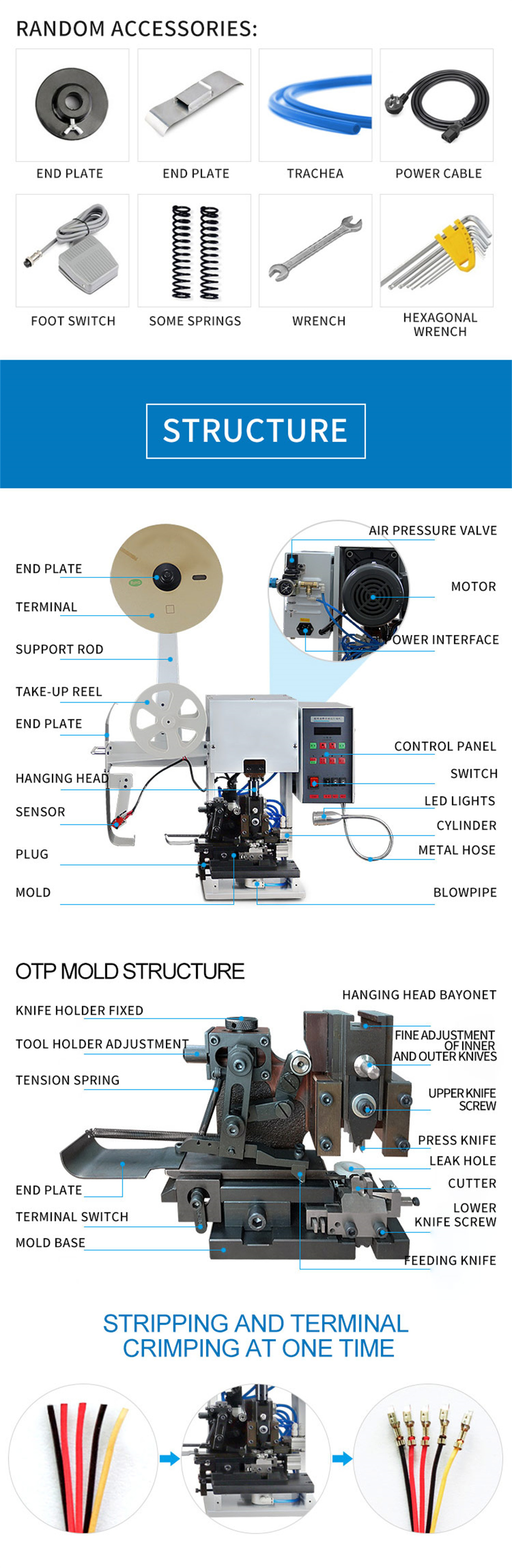

1. Product structure:
2. end plate
3. Terminal
4. Support rod
5. Take-up reel
6. End plate
7. Handing head
8. Sensor
9. Plug
10. Mold
11. Air pressure value
12. Motor
13. Lower interface
14. Control panel
15. Switch
16. Led lights
17. Cylinder
18. Metal hose
19. Blowpipe
OTP mold structure
1. knife holder fixed
2. Tool holder adjustment
3. Tension spring
4. End plate
5. Terminal switch
6. Mold base
7. Hanging head bayonet
8. Fine adjustment of inner and outer knives
9. Upper knife screws
10. Press knife
11. Leak hole
12. Cutter
13. Lower knife screw
14. Feeding knife
Wire harness industry:
1. Led
2. Grid
3. New energy
4. Telecommunication
5. Air conditioner
6. Medical instruments
7. Smart electronic device
8. New energy vehicles
9. Medical instruments

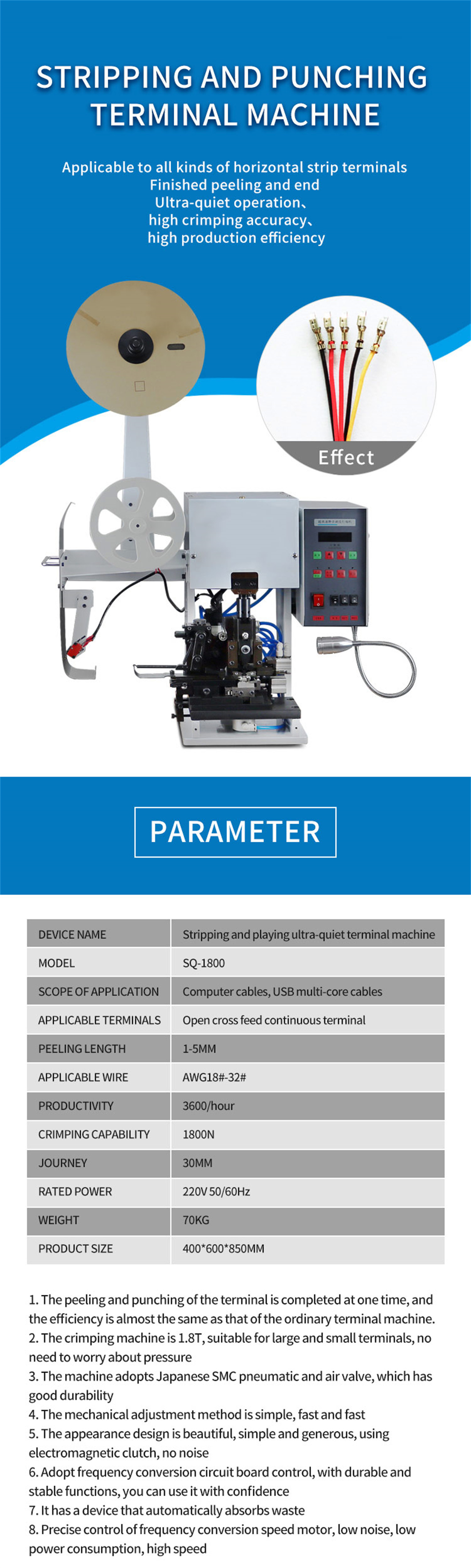

Data sheet:
| DEVICE NAME | Stripping and playing ultra quiet terminalmachine |
| MODEL | SQ-1800 |
| SCOPE OF APPLICATION | Computer cables, USB multicore cables |
| APPLICABL E TERMINALS | Open cross feed continuous terminal |
| PEELING LENGTH | 1-5MM |
| APPLICABLE WIRE | AWG18#-32# |
| PRODUCTIVITY | 3600/hour |
| CRIMPING CAPABILITY | 1800N |
| JOURNEY | 30MM |
| RATED POWER | 220V 50/60Hz |
| WEIGHT | 70KG |
| PRODUCT SIZE | 400*600* 850MM |
