3Q machine
Overview introduction

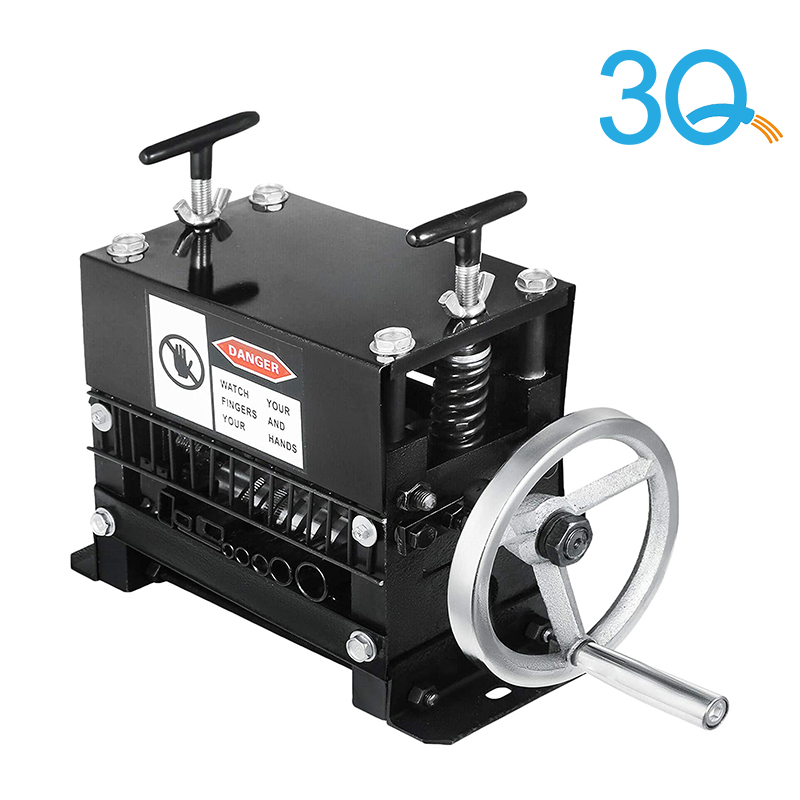

Product name: Automatic manual wire stripper machine
Features
１．【HEAVY DUTY CONSTRUCTION】- Industrial heavy-duty frame, users can mount to any bench or work station as easy as possible. Full-metal structure, built to last a lifetime.
２．【SAFE CUTTER WHEELS】- Cutter wheels are of high hardness, to be anti-rust. Fast stripping speed. 10 blades for your wire stripping. A protective cover for complete safety and ensuring continued high performance.
３．【MULTIPLE STRIPPING CHANNELS】- Designed with both round holes and flat stock cable cutting channels. Ergonomic hatchback design or adjusting two screws to feed wires in different.
４．【HAND-CRANK DRIVEN】- Stripping speed is all up to your own pace. This manual stripping machine works according to your working preferences with the adjustable handle.
５．【WIDE APPLICATION AREA】- This manual wire stripper is capable of stripping round wires from 1.5mm - 38mm and flat wires of various specifications. Such copper wire recycle will remove the plastic and rubber insulation from undamaged scrap wire.
Product sample introduction:
This is a rolling peeling machine, 1-20 mm Cable Wires Stripping Tool. It has an ideal two rollers drive equipped. Efficient, precise cable peeling machine with about 1-20mm dimension thin wire. The rolling stripping machine is solid steel and equipped with a serration peeling roller.' Thus, no matter is the peeling roller, or the guiding roller drive wire will avoid sliding.
Product Details
1. Stable & Durable
Portable and heavy-duty design to ensure safety. Made of durable metal material. Easy to operate with two installation holes.
2. Fully Blades Protection
10 blades are of high hardness, to be anti-rust—fast stripping speed. The housing is used to protect the blade from damage.
3. Sufficient Stripping Force
Stripping Capacity: 1.5mm - 38mm / 0.06"-1.5". Ergonomic hatchback design, adjustable two screws. The cutting force of this machine can be adjusted by regulating the distance between shafts through-bolts adjustment.
4. 11 Cutting Channels
Includes both flat slot and round channels for stripping scrap copper wire and accommodate a variety of wire sizes.
5. Adjustable Handle
It cut the necessary depth within the ring gear. The drive is manually carried on by the supplied handwheel.
6. Various Application
The manual wire stripper is able to strip round wires and flat wires of various specifications.
Manual Hand Cranked Industrial Wire Stripping Machine
The Manual Wire Stripping Machine features 11 channels of cutting wheels for stripping scrap copper wire. It strips wire form 1.5mm up to 38mm diameter. Generally speaking, this machine can remove the plastic and rubber insulation from undamaged scrap wire, recycle copper wire and benefit from non-insulated pure copper wire.
Heavy-duty Construction
Safe Cutter Wheels
Multiple Stripping Channels
Hand-crank Driven
Package size
Length: 52cm / 20.47 inch
Width: 14cm / 5.51 inch
Height: 29cm / 11.42 inch
Package Content
1 x Wire Stripping Machine
Data sheet:
| Wire gauge range | 1.5mm - 38mm / 0.06"-1.5" |
| Channels of Cutters | 11 |
| Cutting Blades | 10 |
| Overall Dimensions with handle | 520 x 135 x 290 mm / 20.47" x 5.31" x 11.42" |
| Weight | 22kg / 48.5lb |
| Feeding hole diameter | A. flat cable feeding hole B: 1.5~6mm diameter feeding hole C: 6.0~9.0 diameter feeding hole D: 9.0~13mm diameter feeding hole E: 13.0~16.0mm diameter feeding hole F: 16.0~19.0 diameter feeding hole G: 19.0~24mm diameter feeding hole H: 24~28 mm diameter feeding hole I: 28~38 diameter feeding hole |
