3Q machine

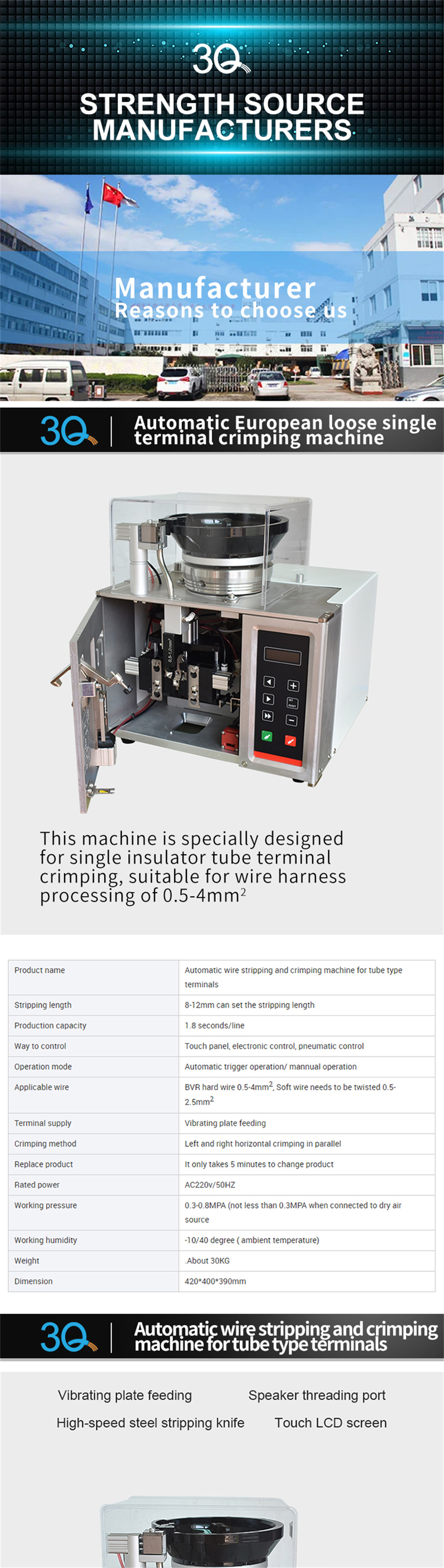

Product overview

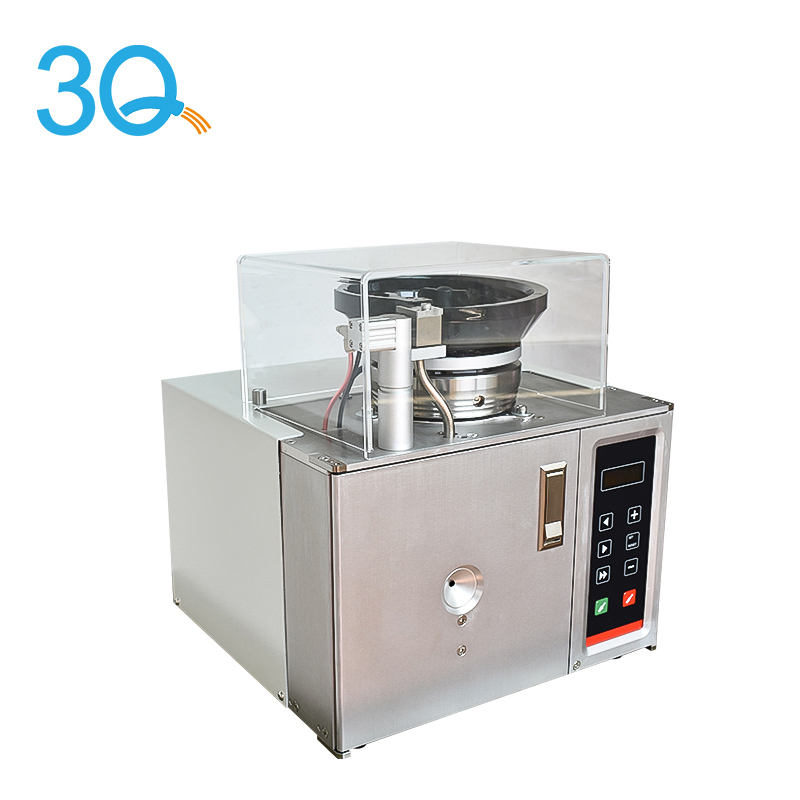

Product name: Automatic European loose single terminal crimping machine.
Applicable range:This machine is specially designed for single insulator tube terminal
crimping, suitable for wire harness processing of 0.5-4mm2
Processing sample display: This model is specially designed for single-grain tube terminal crimping. Suitable for wire harness processing of 0.5 4mm2

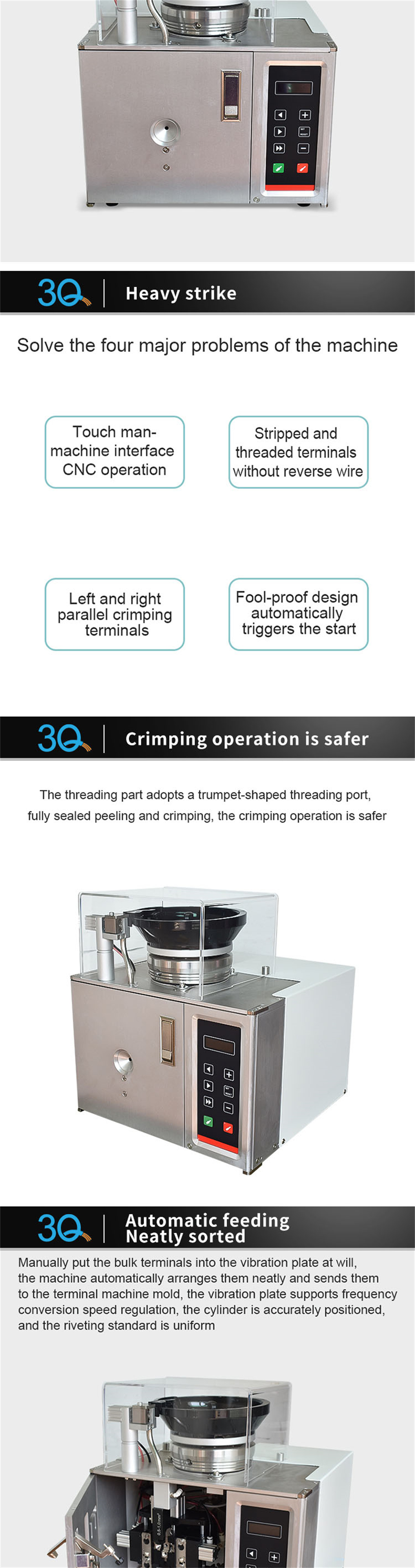

Feature:
1. Safe for crimping operation.
The threading part adopts a trumpet-shaped threading port, fully sealed peeling and crimping, the crimping operation is safer.
2. Automatic feeding neatly sorted
Manually put the bulk terminals into the vibration plate at will, the machine automatically arranges them neatly and sends them ,to the terminal machine mold, the vibration plate supports frequency conversion speed regulation, the cylinder is accurately positioned, and the riveting standard is uniform.
Structure of machine:
1. vibrating plate feeding
2. Speaker threading port
3. High-speed steel stripping knife
4. Touch LCD screen.

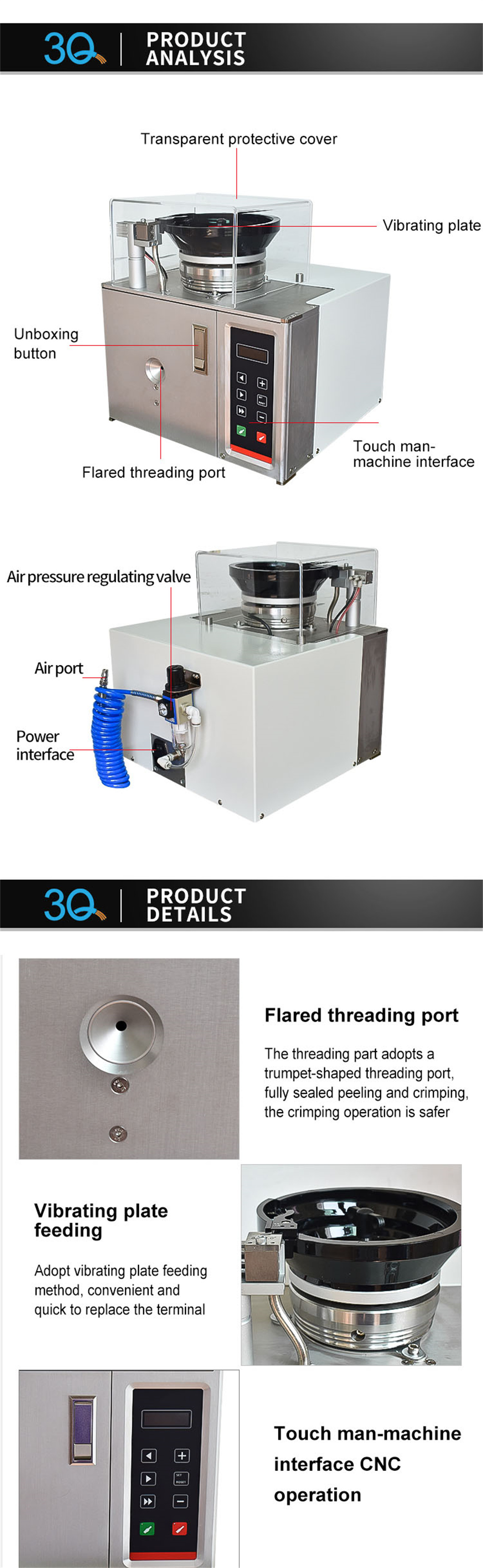

Product analysis:
1. transparent protective cover
2. Vibrating plate
3. Unboxing button
4. Touch man-machine interface
5. Flared threading port
6. Air pressure regulating valve
7. Air port
8. Power interface.
Product details:
1. flared threading port
The threading part adopts a trumpet-shaped threading port, fully sealed peeling and crimping,the crimping operation is safer.
2. Vibrating plate feeding
Adopt vibrating plate feeding method, convenient and quick to replace the terminal.
3. Touch man-machine interface cnc operation.

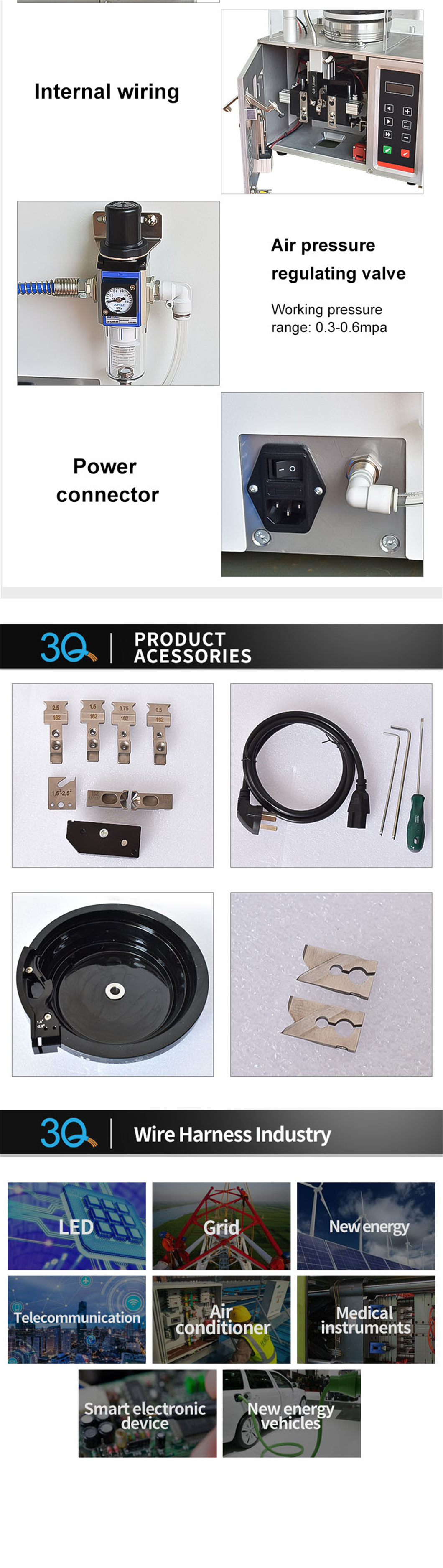

4. internal wiring.
5. Air pressure regulating value.
Working pressure
Range:0.3-0.6mpa.
6. power connector
Wire harness industry:
1. Led
2. Grid
3. New energy
4. Telecommunication
5. Air conditioner
6. Medical instruments
7. Smart electronic device
8. New energy vehicles
9. Medical instruments

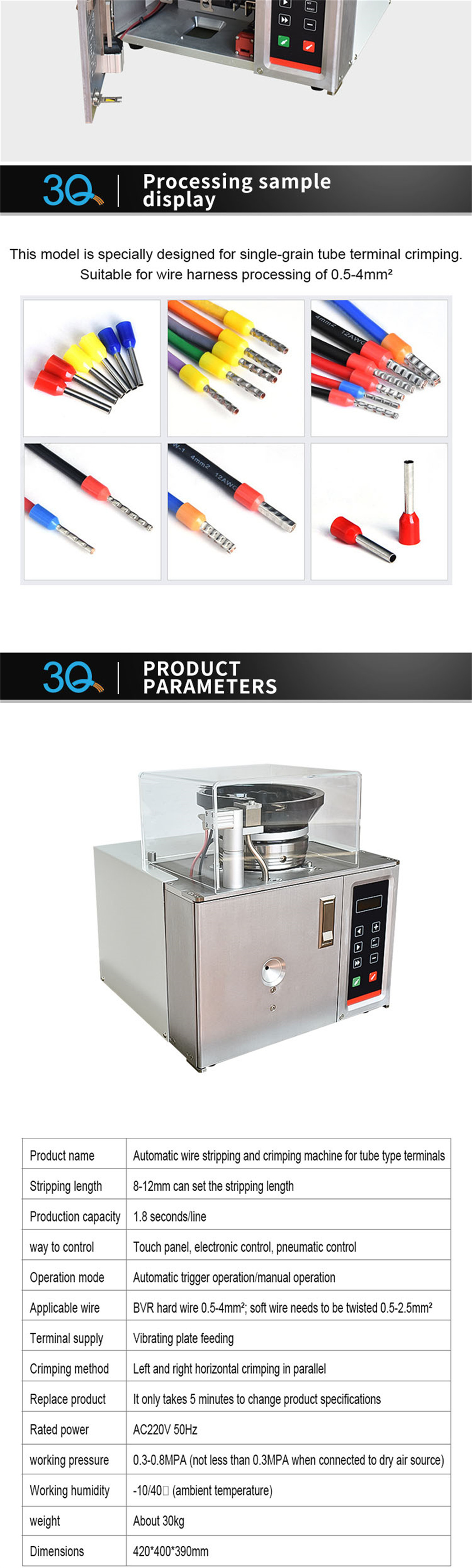

Data sheet:
| Product name | Automatic wire sipping and crmping machine for tube type temials |
| Stipping length | 8-12mm can set the stpping length |
| Production capacty | 1.8 secondsline |
| way to control | Touch panel, ectronic control, pneumatic contol |
| Operation mode | Automatic tigger operation/manual operation |
| Aplicable wire | BVR hard wire 0.5-4mm?, soft wire needs to be twisted 0. 5-2 5mm? |
| Terminal supply | Vibrating plale feing |
| Crimping method | Lett. and right hoizontal cimping in prallel |
| Replace product | It only takes 5 minutes to change product seicationsn |
| Rated power | AC220V 50Hz |
| working pessure | 0.3-0.8MPA(not less than 0.3MPA when cnmected to dry air soure) |
| Working humidity | -101400 (ambient temperature) |
| weight | About 30kg |
| Dimensions | 420400*390mm |
