Automatic Double End Peeling Cutting And Insert Plastic Shell Machine

Availability:
Quantity:
  • 3Q machine

详情_01详情_02详情_03

wire stripping machine

工厂展示_01工厂展示_02工厂展示_03独立站证书

WIRE STRIPPING MACHINE

Product overview

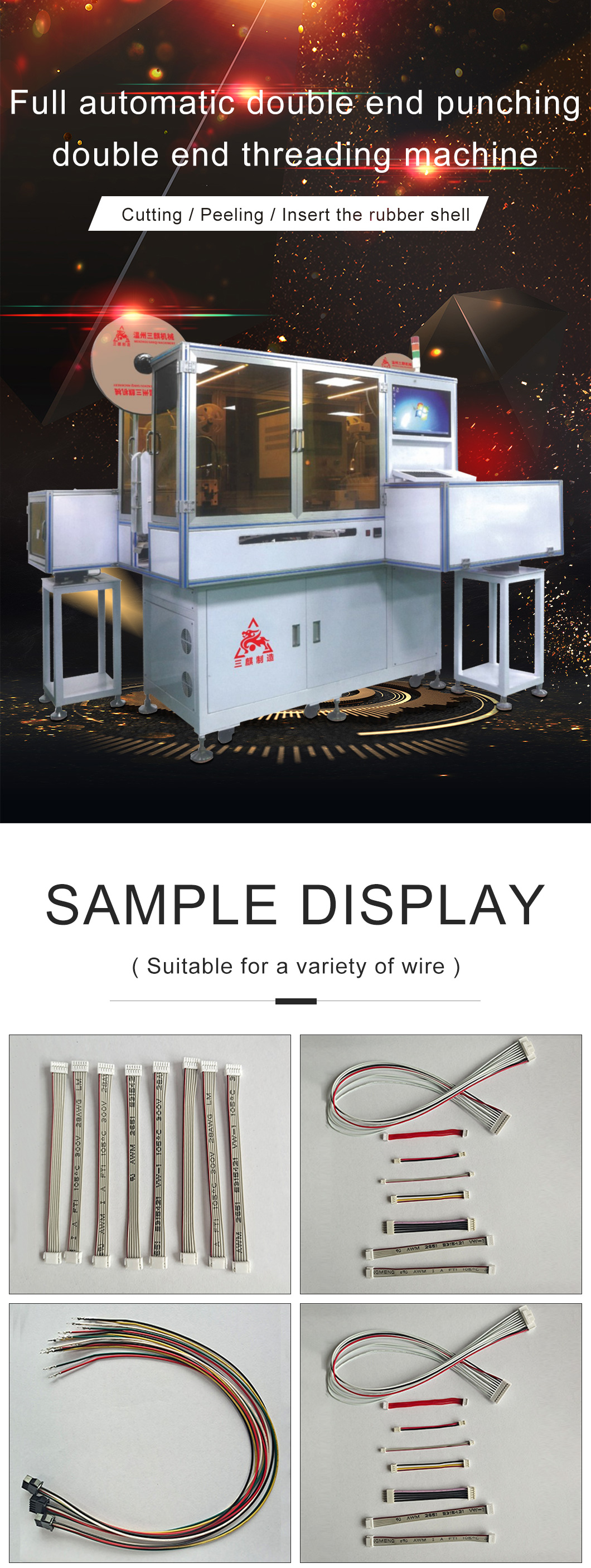

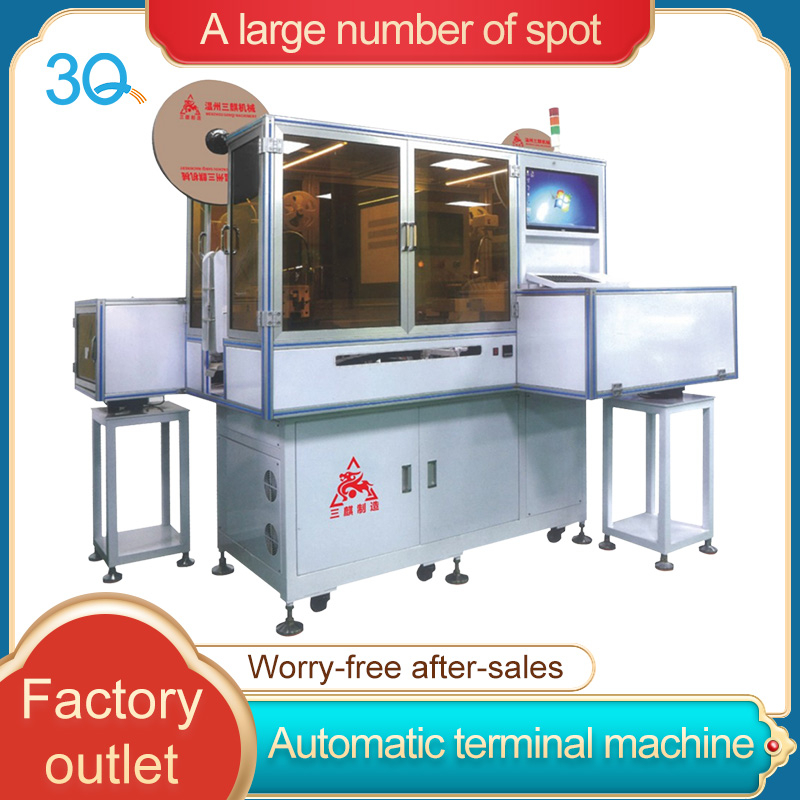

Product name: automatic double end peeling cutting and insert plastic shell machine.

Product function:cutting.peeling,insert the rubber shell.suitable for a variety of wire.


Features:

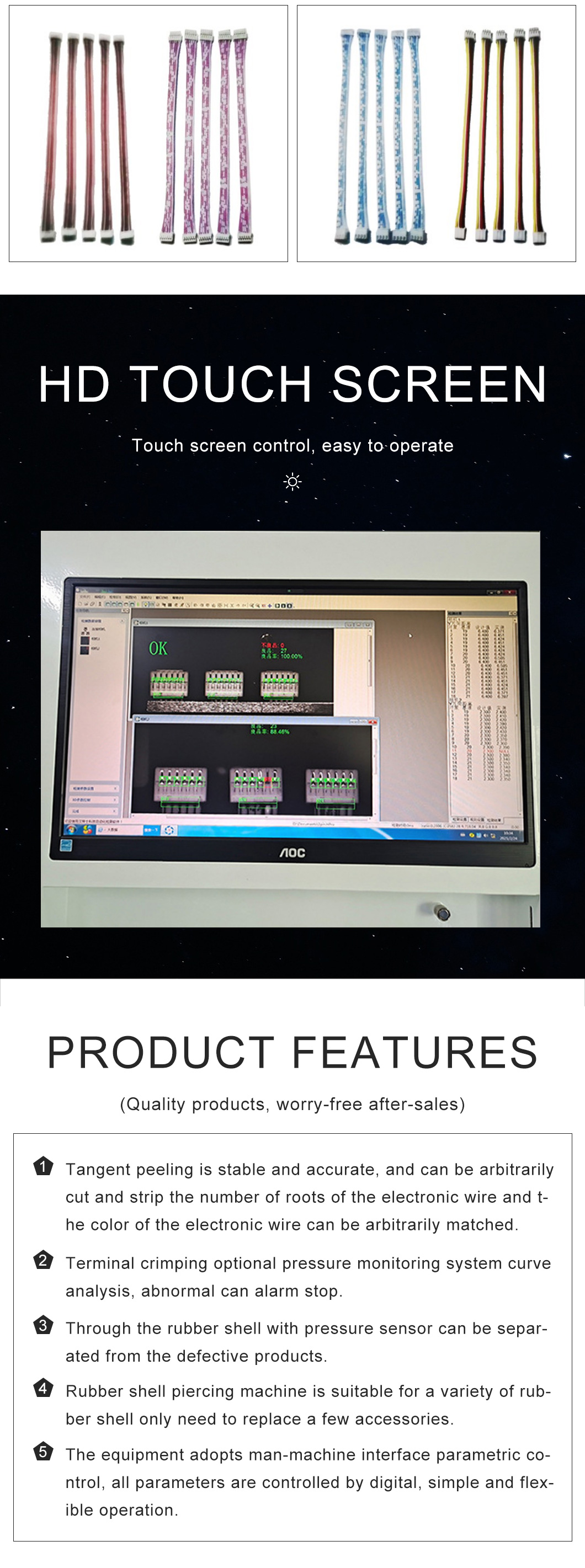

1. HD touch screen.touch screen control.easy to operate.

2. Tangent peeling is stable and accurate, and can be arbitrarily cut and strip the number of roots of the electronic wire and the color of the electronic wire can be arbitrarily matched.

3. Terminal crimping optional pressure monitoring system curve analysis, abnormal can alarm stop.

4. Through the rubber shell with pressure sensor can be separated from the defective products.

5. Rubber shell piercing machine is suitable for a variety of rubber shell only need to replace a few accessories.

6. The equipment adopts man-machine interface parametric control, all parameters are controlled by digital, simple and flexible operation.

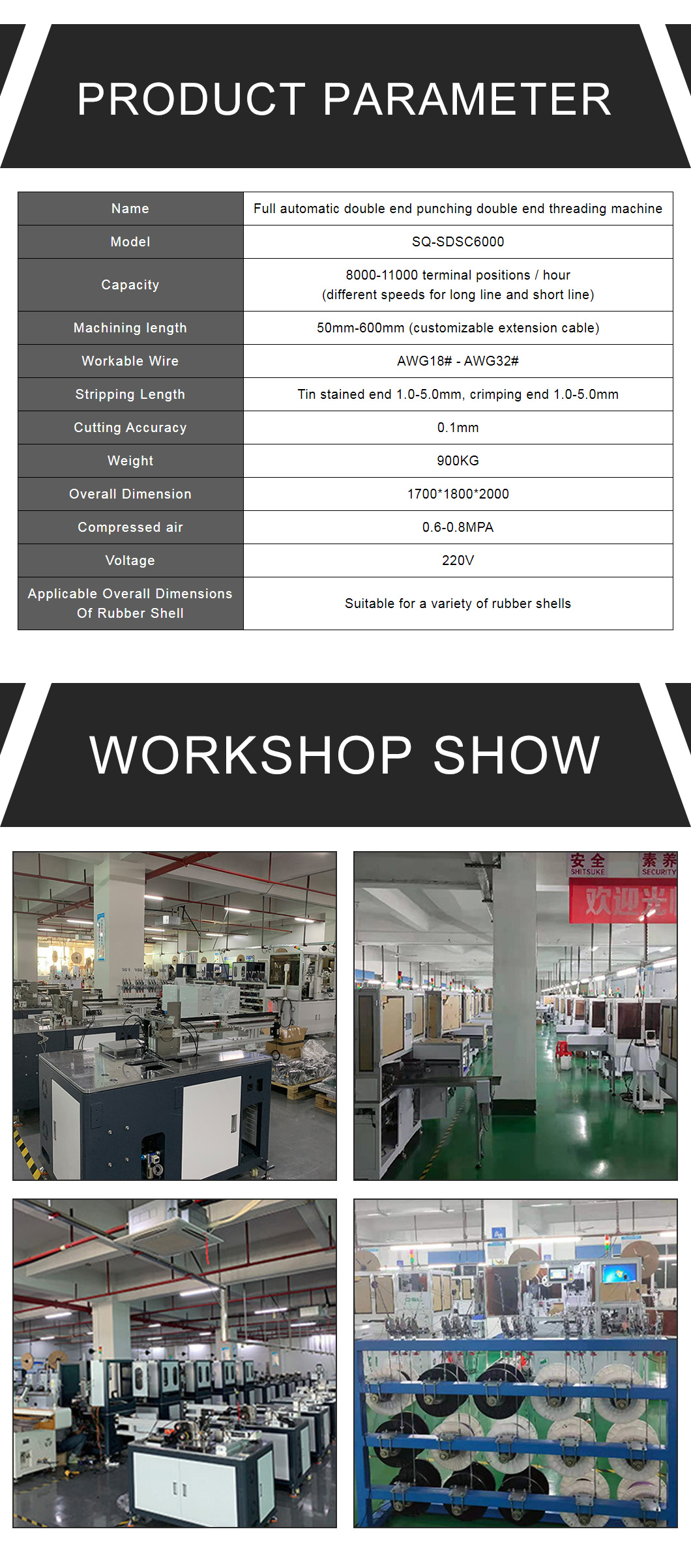

Data sheet:

NameFull automatic double end peeling cutting and insert plastic shell machine.
ModelSQ-SDSC6000
Capacity8000-11000 terminal positions / hour(different speeds for long line and short line)
Machining length50mm-600mm (customizable extension cable)
Workable WireAWG18# - AWG32#
Stripping LengthTin stained end 1.0-5 0mm, crimping end 1.0-5.0mm
Cutting Accuracy0.1mm
Weight900KG
Overall Dimension1700*1800*2000
Compressed air0.6-0.8MPA
Voltage220V
Applicable Overall Dimensions Of Rubber ShellSuitable for a variety of rubber shells
