3Q machine
Scrap Copper Wire Stripping Machine
Scrap Copper Wire Stripping Machine
Overview introduction

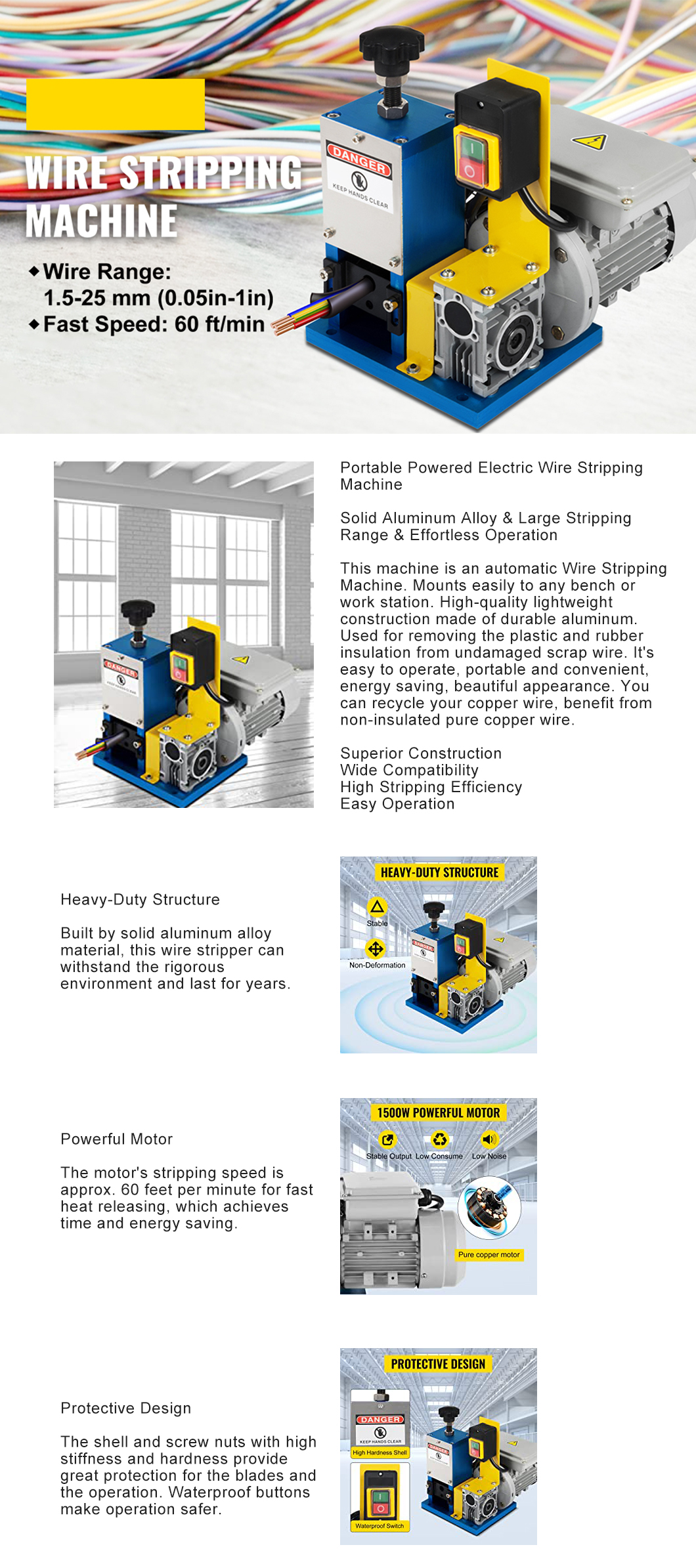

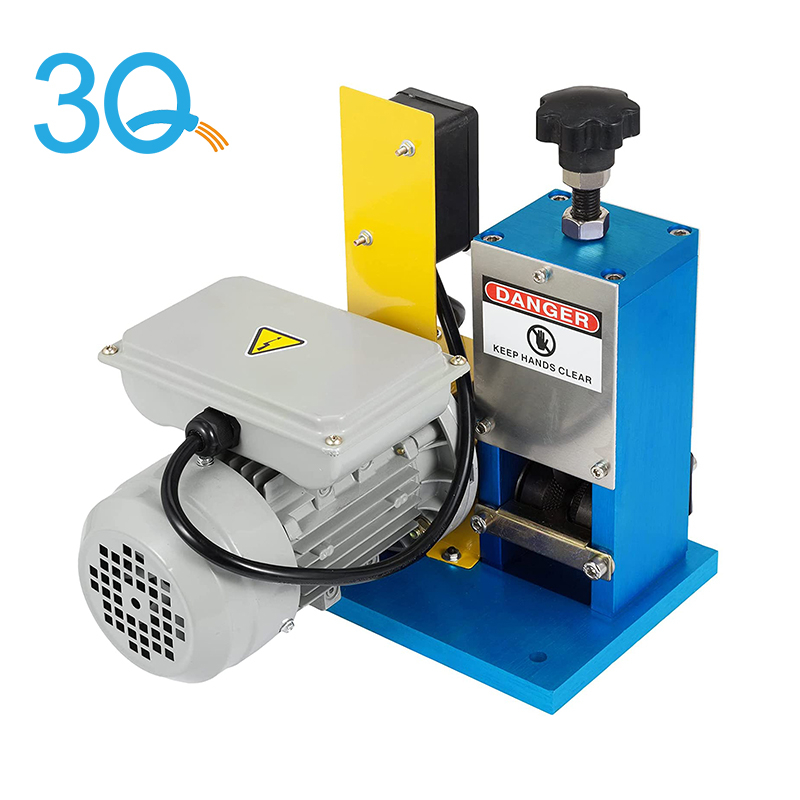

Product name: Automatic wire stripping machine 0.05"-0.98" portable dark blue wire stripping machine, copper scrap recycling wire stripping machine (dark blue)
Wire range” 1.5-25mm (0.05in-1in)
Fast speed:60ft/min
Features about this project
1. [Portable and durable]-This wire stripper is made of sturdy aluminum alloy, which can withstand harsh environments and is durable. Relatively light and compact structure, easy to carry and use.
2. [Powerful Motor]-Single-phase cable stripping 1/4HP 110V, power: 180 W. Through the ON/OFF button next to the motor, you can easily control it as needed.
3. [High-strength blade]-Sharp blade, peeling speed: approx. 60 feet per minute. Wire entry holes of different sizes are suitable for most wires. Wire gauge range: 1.5mm-25mm (0.05"-0.98").
4. [Fast wire stripping speed]-The wire stripping speed is fast, the machine position is fixed, and the use is safe and reliable. The quick start and stop buttons are protected by a plastic cover to save energy. Easy to use, easy to carry, energy saving
5. [Wide applications]-Very suitable for recycling copper wires, removing plastic and rubber insulation from undamaged waste wires, and the wire range is up to 0.98 inches.
6. Superior Construction
7. Wide Compatibility
8. High Stripping Efficiency
9. Easy Operation
10. Easily to any bench or work station.
11. High-quality lightweight construction made of durable aluminum.
12. Used for removing the plastic and rubber insulation from undamaged scrap wire.
13. It is easy saving, beautiful appearance.
14. Recycle copper wire,benefit from non-insulated pure copper wire.
15. Heavy-duty structure:
Built by solid aluminum alloy material, this wire stripper can withstand the rigorous environment and last for years.
16. Powerful motor
The motor's stripping speed is approx.60 feet per minute for fast heat releasing, which achieves time and energy saving.
17. Protective design
The shell and screw nuts with high stiffness and hardness provide great protection for the blades and the operation. Waterproof buttons make operation safer.
18. Heavy-duty gearbox
Direct roller driven with worm gear reducer. This quality gearbox leads to fast stripping speed, fixing machine position, and safe & reliable use.
19. Adjusting screw nut
You can adjust the height of the blade by turning the screw nut to fit wires of different sizes.
20.Wide Application
The electrical wire stripper is widely used in cable/wire manufacturer, recycling plant, copper products factory .excellent for removing the plastic and rubber insulation.
Details of this item
1. Heavy-Duty Structure
Built by solid aluminum alloy material, this wire stripper can withstand the rigorous environment and last for years.
2. Powerful Motor
The motor's stripping speed is approx. 60 feet per minute for fast heat releasing, which achieves time and energy saving
3. Protective Design
The shell and screw nuts with high stiffness and hardness provide great protection for the blades and the operation. Waterproof buttons make operation safer.

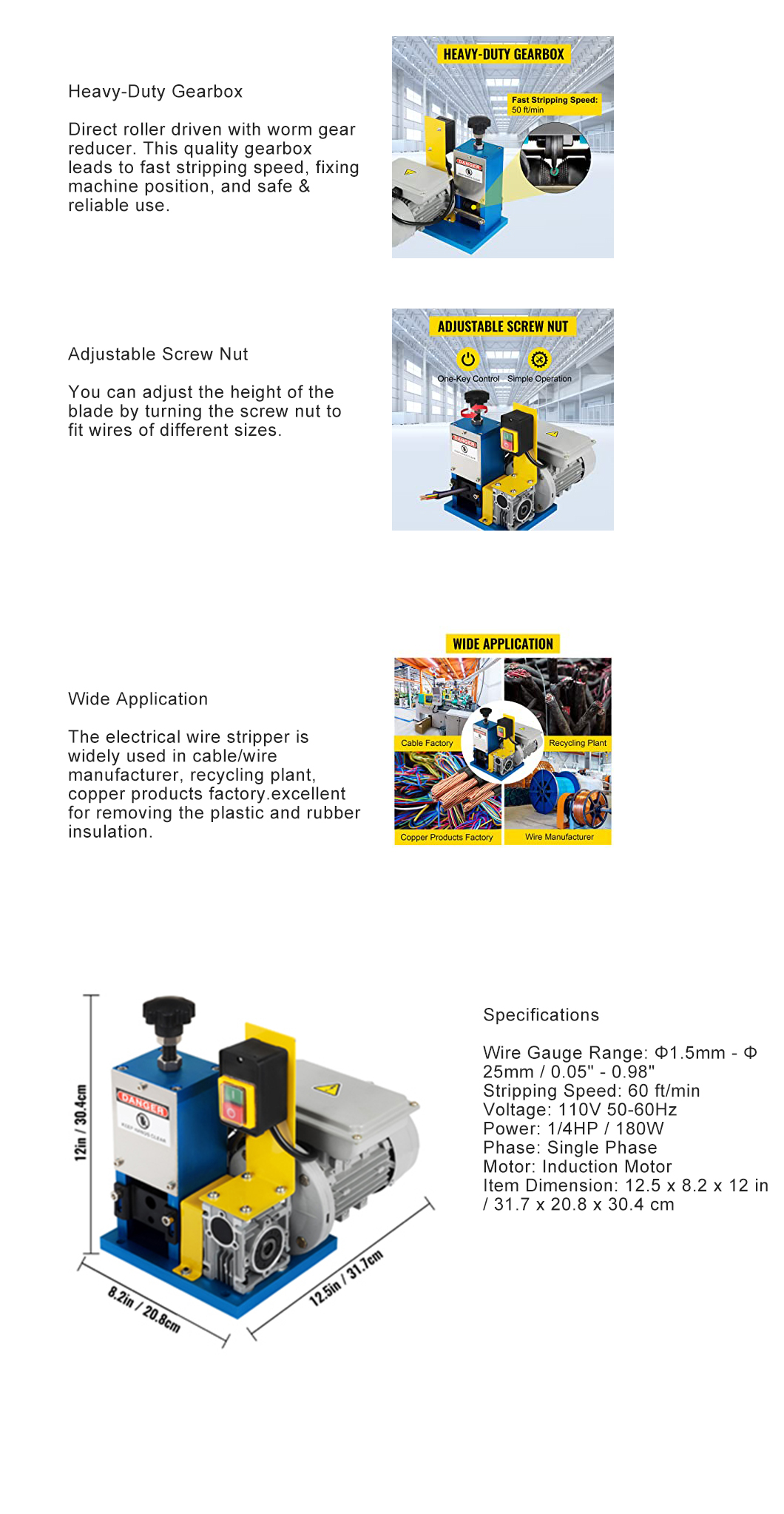

4. Heavy-Duty Gearbox
Direct roller driven with worm gear reducer. This quality gearbox leads to fast stripping speed, fixing machine position, and safe & reliable use.
5. Adjustable Screw Nut
You can adjust the height of the blade by turning the screw nut to fit wires of different sizes.
6. Wide Application
The electrical wire stripper is widely used in cable/wire manufacturer, recycling plant, copper products factory.excellent for removing the plastic and rubber insulation
Specifications
1. Wire Gauge Range: Φ 1.5 mm - Φ25 mm / 0.05" - 0.98"
2. Stripping Speed: 60 ft/min
3. Voltage: 110V 50-60Hz
4. Power: 1/4 HP / 180W
5. Phase: Single Phase
6. Motor: Induction Motor
7. Overall Dimensions:240 x 320 x 320 mm / ”
8. Item dimension:12.5*8.2*12 in /31.7*20.8*30.4cm
Package Content
1 x Portable Powered Electric Wire Stripping Machine
1 x Feeding Panel
1 x Instruction Manual
Data sheet:
Part Number | Cable stripping machine |
Item Weight | 28.6 pounds |
Product Dimensions | 8.5 x 12.5 x 12 inches |
Country of Origin | China |
Item model number | Cable Wire Stripping Machine |
Is Discontinued By Manufacturer | No |
Color | Dark Blue |
Material | Metal |
Power Source | AC/DC |
Item Package Quantity | 1 |
Handle Material | Plastic |
Included Components | Feeding Panel, Wire Stripping Machine, Instruction Manual |
Batteries Included | No |
Batteries Required | No |
