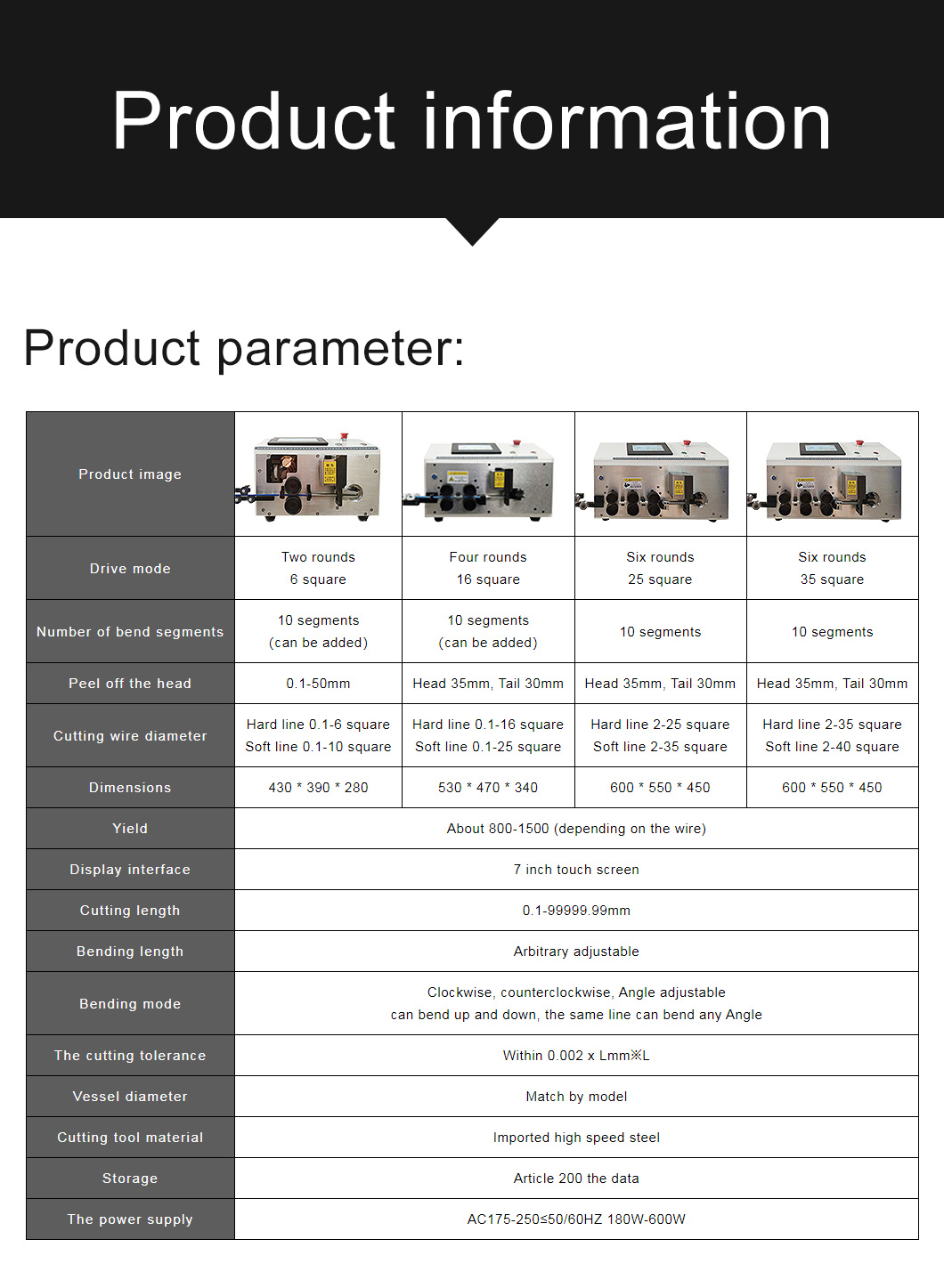

Product overview

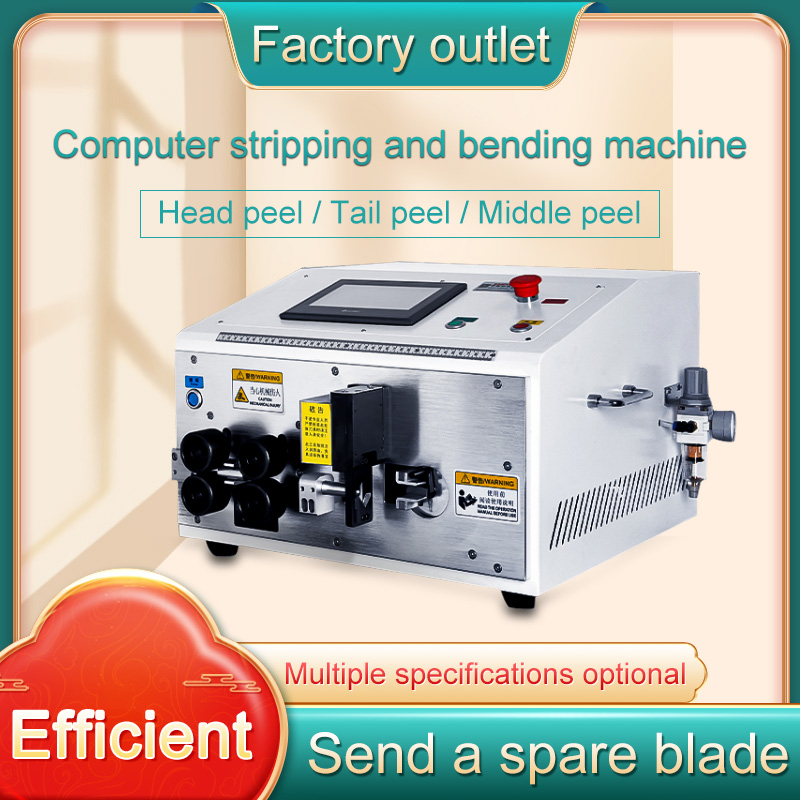

Product name: computer wire stripping and bending machine(factory direct sale)
Applicable range:applicable to all kinds of horizontal strip terminals ,finished peeling and end,ultra-quiet operation,high crimping accuracy,high production efficiency.
Features:

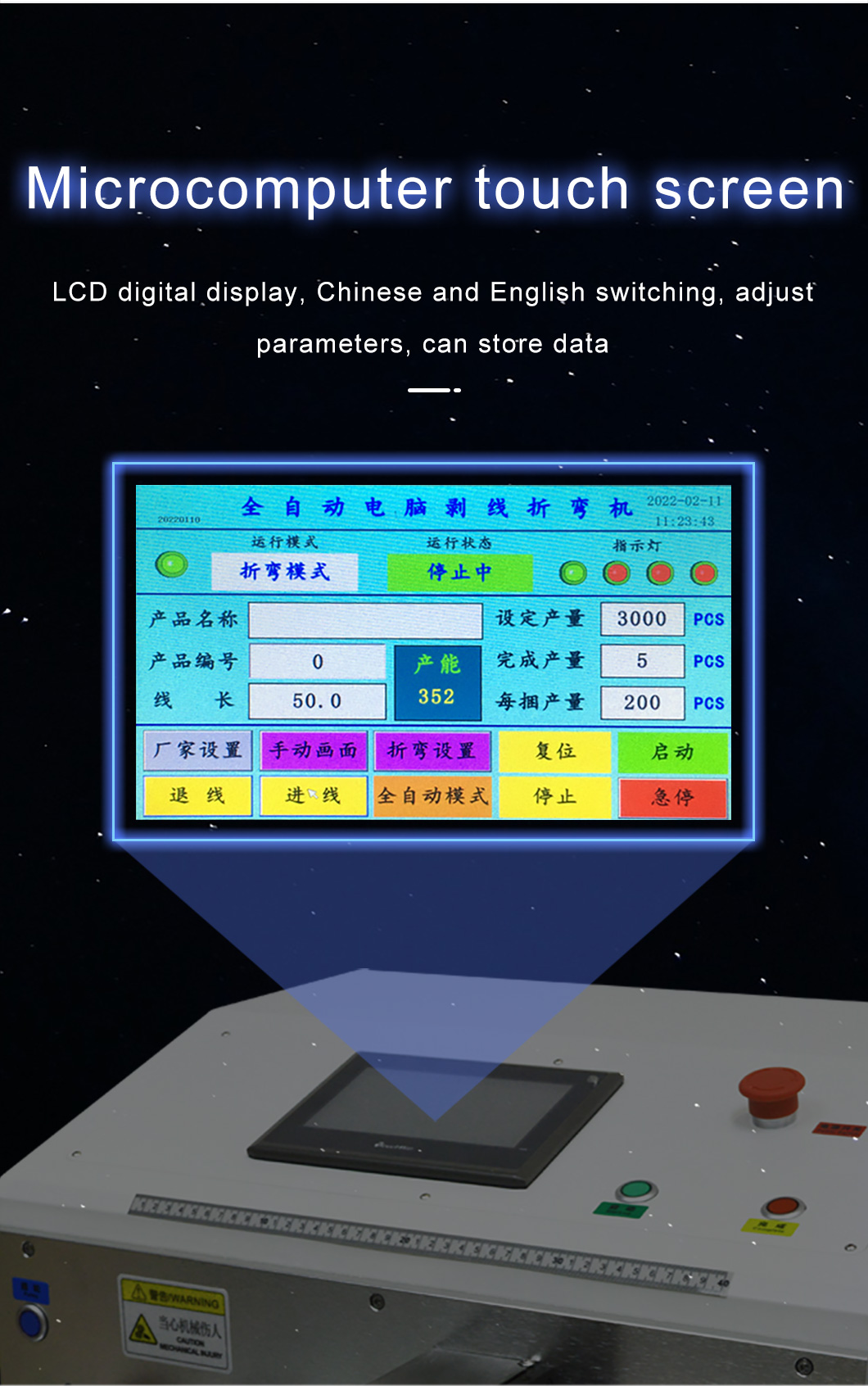

1. Microcomputer touch screen
LCD digital display,Chinese and English switching,adjust parameters,can store data.
Having start screen,parameter screen,parameter setting,functional interface,speed setting,bend settings,data saving,manual screen.

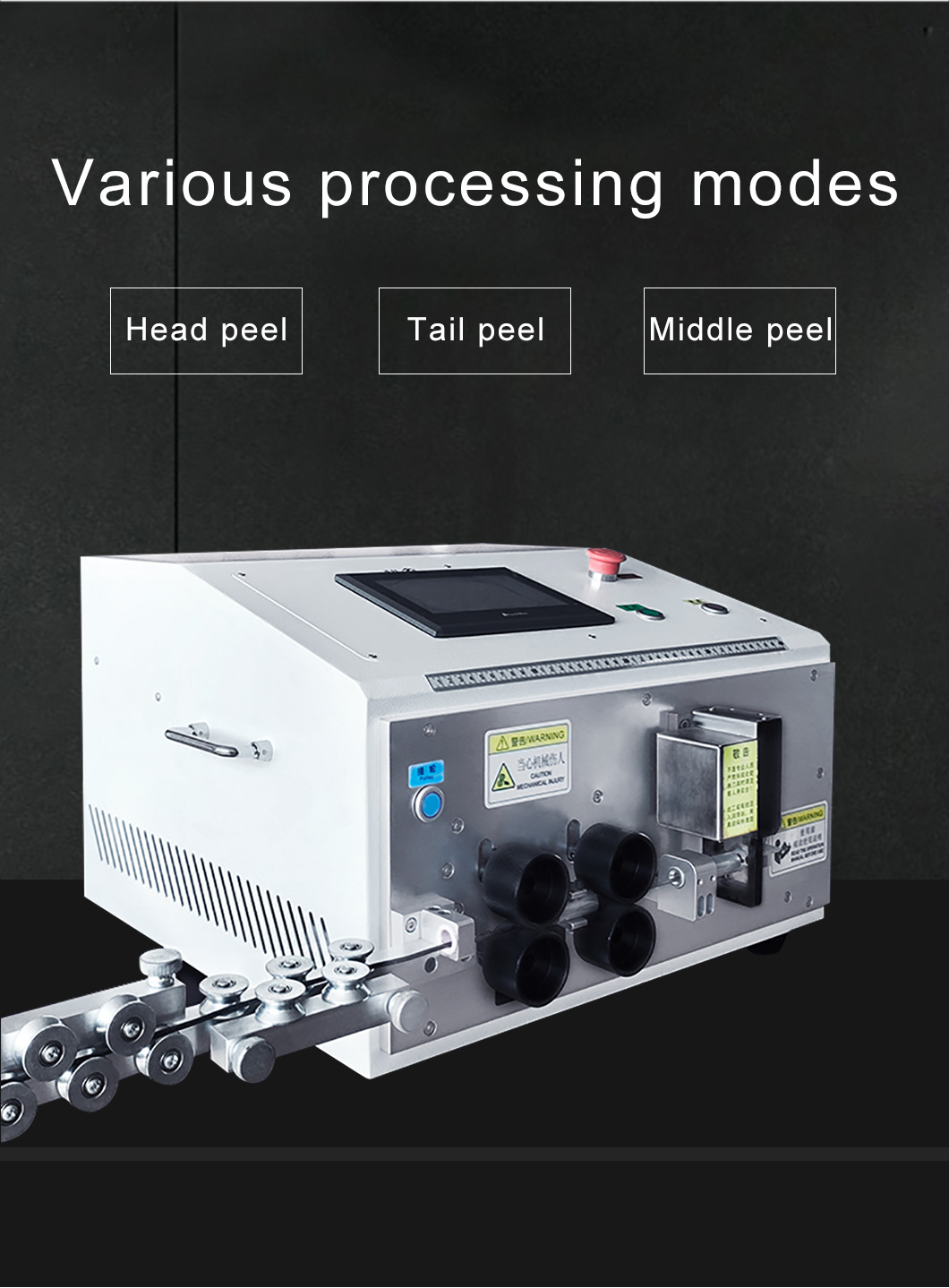

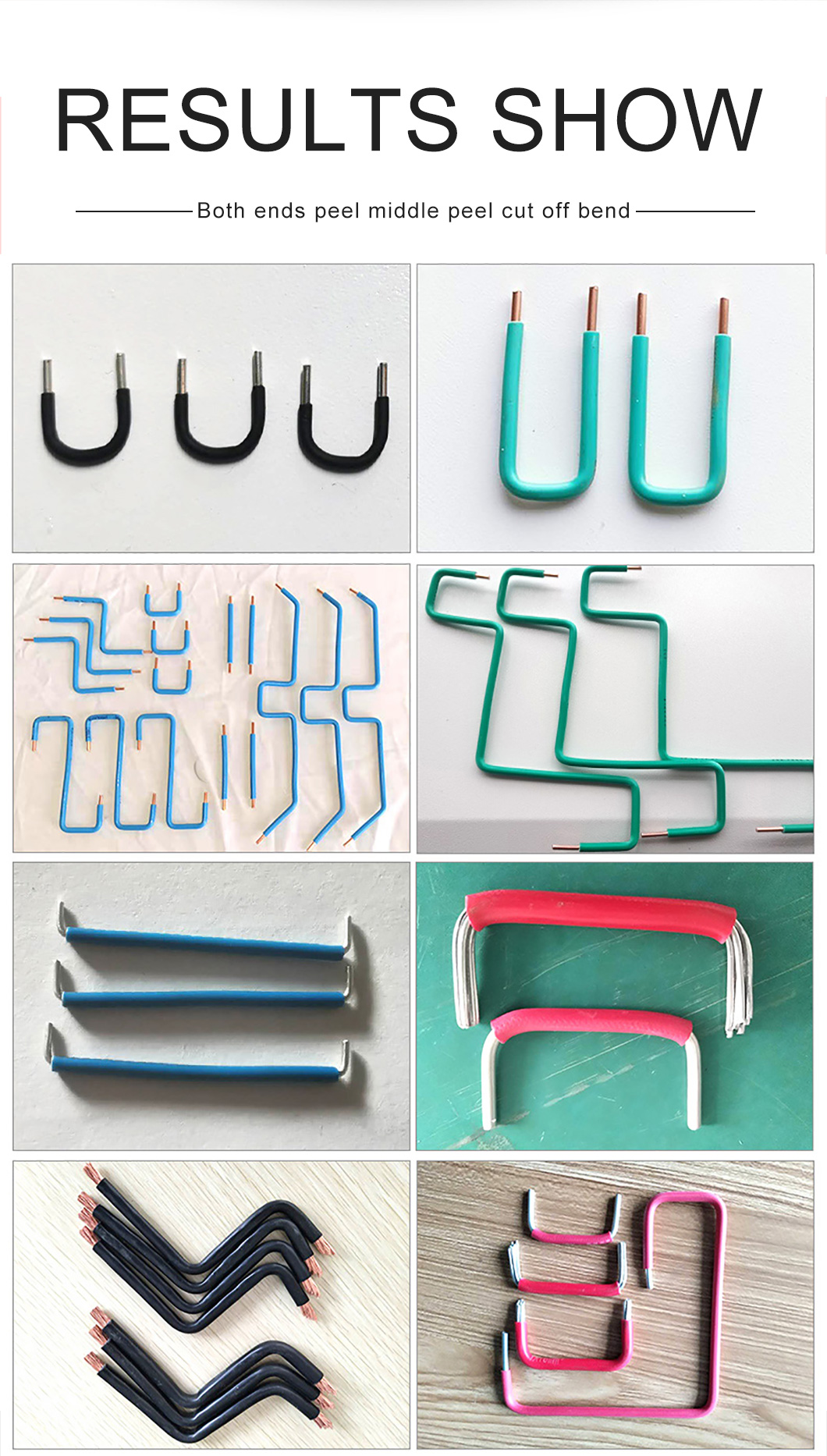

2. Various processing modes:head peel, tail peel,middle peel.
Structural analysis:
1. touch screen
2. Emergency button
3. Stop button
4. Start up button
5. Bending device
6. Intake conduit
7. Crimping wheel
8. Scale
9. Incoming line fine-tuning.
Product details:

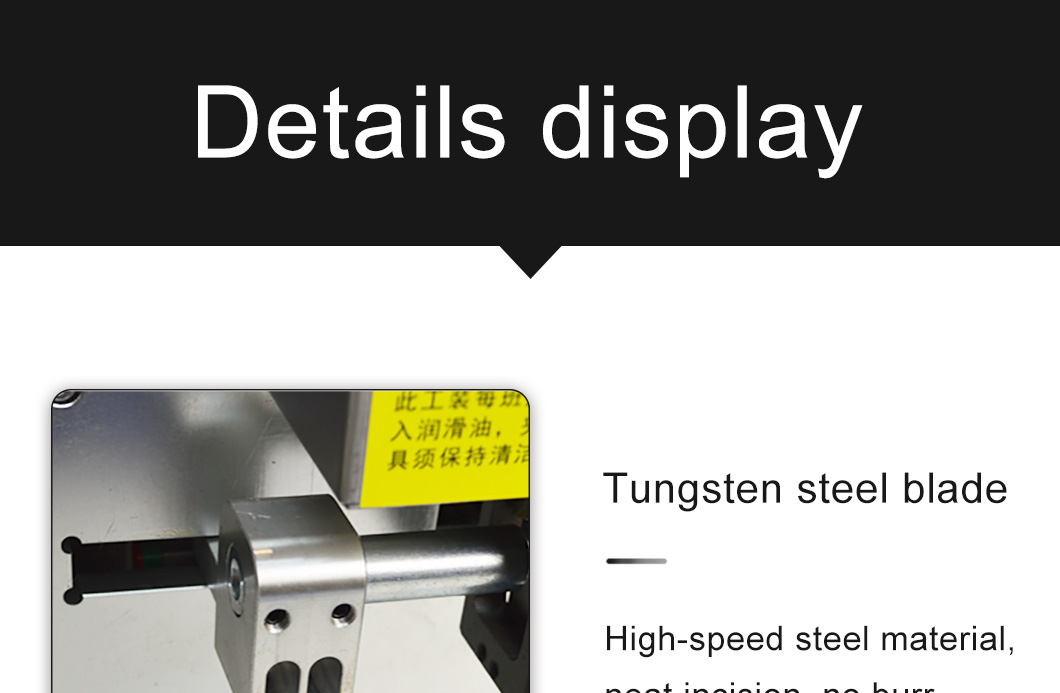

1. Tungsten steel blade.

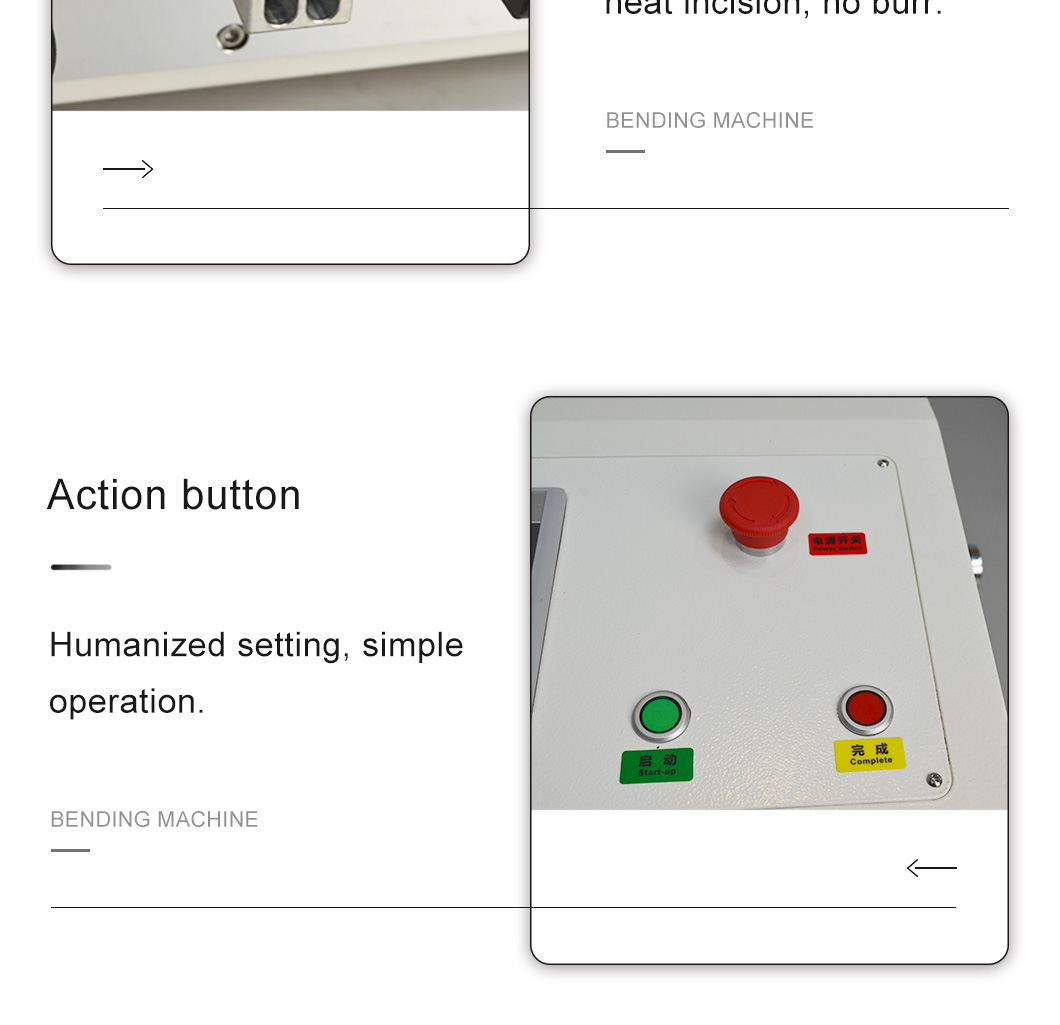

2. Action button

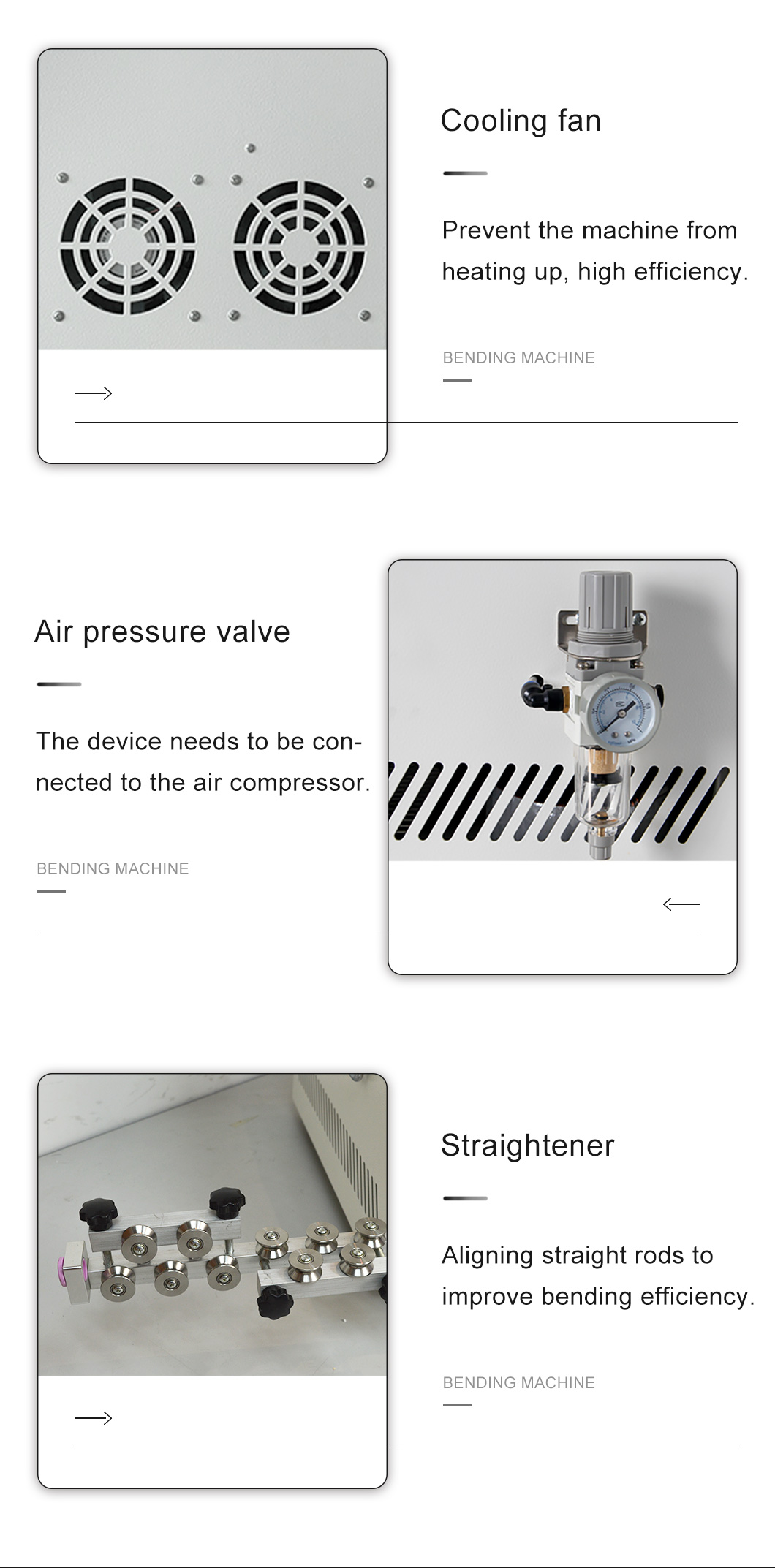

3. Cooling fan
4. Air pressure valve
Phenomena and treatment methods in wire stripping process:
A.Can`t strip the wire:
Approach:
1. Check the cutting depth of the wire head. When the
cutting mark is too shallow, reduce the wire diamet-er parameter accordingly;
2. The pressing force of the incoming wire wheel is no-
t enough, and the air pressure needs to be adjusted;
3. There may be dirt on the feeder wheel, which needs
to be cleaned up;
4. The retraction parameters may be set too large or
too small;
5. Check whether the air source is normal.
B. The end of the wire cannot be peeled off
Approach:
1. Check the cutting depth of the wire tail. When the
cutting mark is too shallow, the wire diameter par-
ameter needs to be adjusted to become smaller;
2. The clamp is not tight, and the air pressure needs to
be increased;
3. The retraction parameter may be set too large or too
small;
3. Check whether the air source is normal.
C. Severely crushed wire
Approach:
1. The indentation comes from the wire feed wheel, or the wire stripping clip after it comes, and the air pressure needs to be reduced.
D. The length is different,the actual line length less than the set line length
Approach:
1. The pressure of the incoming wire wheel is not enough,
and occasionally the wire end cannot be peeled off;
2. There is dirt on the incoming line wheel, which needs to
be cleaned;
3. The clearance of the wire feeder is too large, or adjust the
air pressure;
4. The pressure of the straightener is too high, and there is a
phenomenon of pulling the wire. (or the wire feeder is stuck);
5. The thickness of the wire itself varies.
E. Wire head and tail cut off
Approach:
1. If the wire diameter is too small, the wire diameter parameters
will also be reduced accordingly.
F. Something the end of end of the thread is cut off.
Approach:
1. If the wire diameter is too small, the wire diameter should be
increased.
G. Wires are somethings not cut and joined together
Approach:
1. The wire may exceed the specified range;
2. The speed may be too fast (when stripping thick wires, the
speed should be slowed down);
3. The tool may not be lubricated;
4. The blade has become dull and needs to be replaced or ground.
H. The wire clip cannot hold the wire or the wire end hits the wire clip
Approach:
1. It is necessary to adjust the wire baffle or replace the catheter
matches the wire.
Additional parts:
1. Trachea
2. Catheter
3. Cable
4. Instruction manual
