3Q machine
Product overview

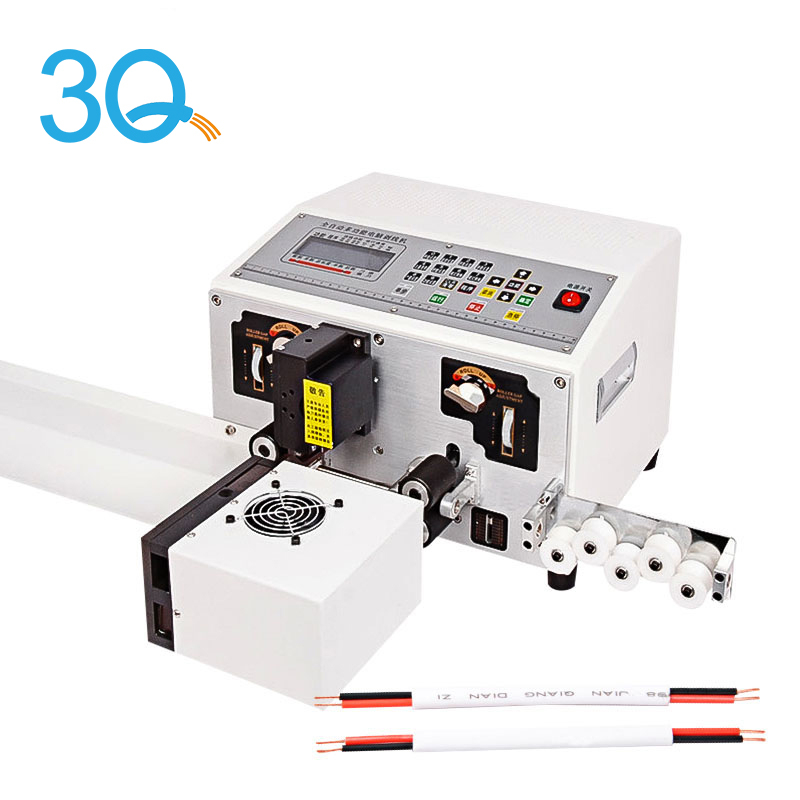

Product name：cable stripping and twisting machine
Features:
1. Upgrade design: twisting, peeling inside and outside,stepper motor and intelligent control.
2. Core technology:four-wheel drive, touch smart,tungsten steel blade, one machine for multiple uses, fully automated and accurate and fast.
3. LCD touch screen control: Intelligent control system, Chinese and English
switching, simple operation and easy setting
4. Four-wheel drive:Four wheels are driven at the same time, the gear is cut off,
and the knife cut is neat Stable stripping quality
5. Random accessories:1 catheter,1 power cord, 1 set of hexagon wrench. 1 wiring board, 7-rpund straightener 1 and 1 manual.
6. One machine for multiple uses ,it is effective and good efficient.
7. Twisted wire at both ends: wire cutting,skin stripping.core wire stripping,twisted core wire four in one.
Basic structure of machine and more details:

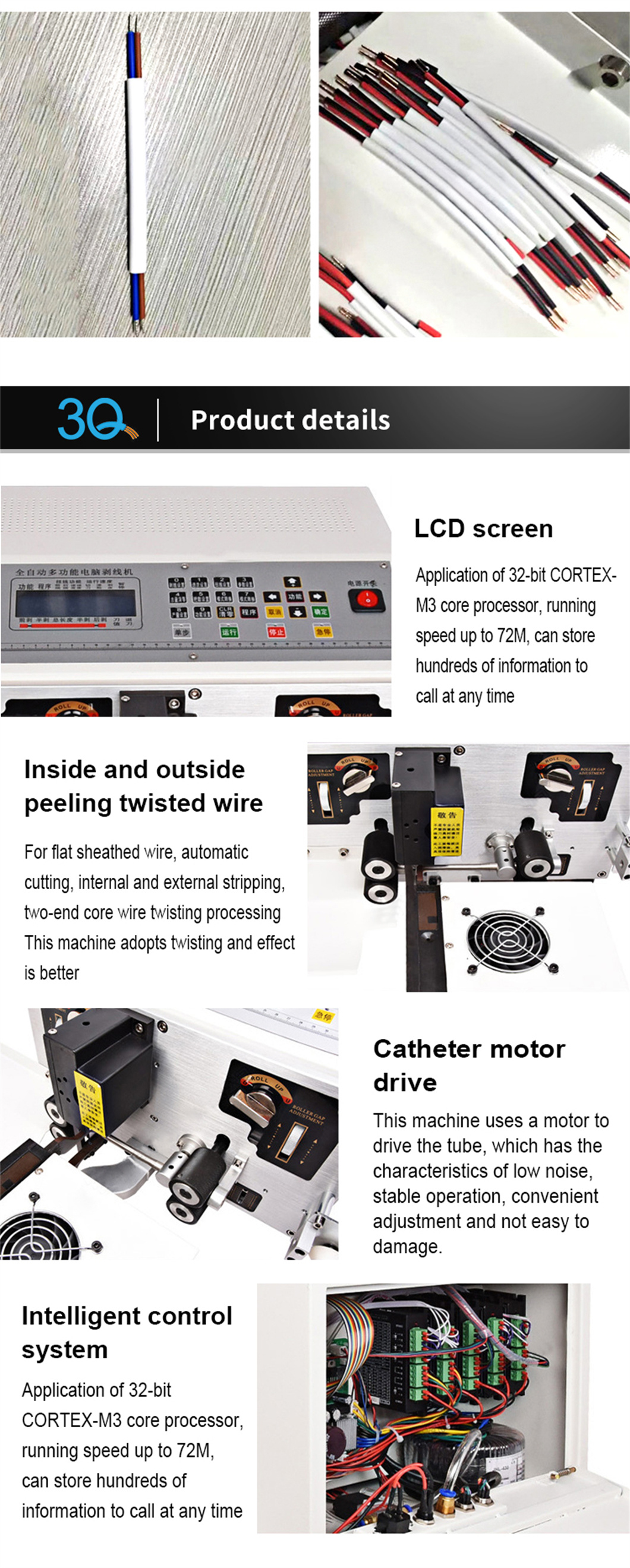

1. LCD screen
Application of 32-bit CORTEX-M3 core processor, runing speed up to 72M. can store hundreds of information to call at any time.
2.Adjuster
3.Wiring panel
4.Wire feed wheel
5.Twisting device
6.Scale
7.Straightener
Inside and outsider peeling twisted wire For flat sheathed wire, automatic cutting, internal and external stripping, two-end core wire twisting processing
This machine adopts twisting and effect is better
8.Catheter motor drive
This machine uses a motor to drive the tube, which has the characteristics of low noise, stable operation, convenient adjustment and not easy to damage.
9.Intelligence control system
Application of 32-bit CORTEX-M3 core processor, running speed up to 72M,can store hundreds of information to call at any time.
Product more details:
1. Automatic mobile tool holder：
Four wheels are driven at the same time, the gear is cut, the knife cut is neat, and the stripping quality.
2. Touch screen control
intelligent control system,Chinese and English switching, simple operation and easy
setting Touch screen control.
3. Intelligent control system
Using 32- bit CORTEX-M3 core processor, running speed of 72M per week.
4. Using 7-round straightener
The wire is straighter and more precise, improving work quality and efficiency.

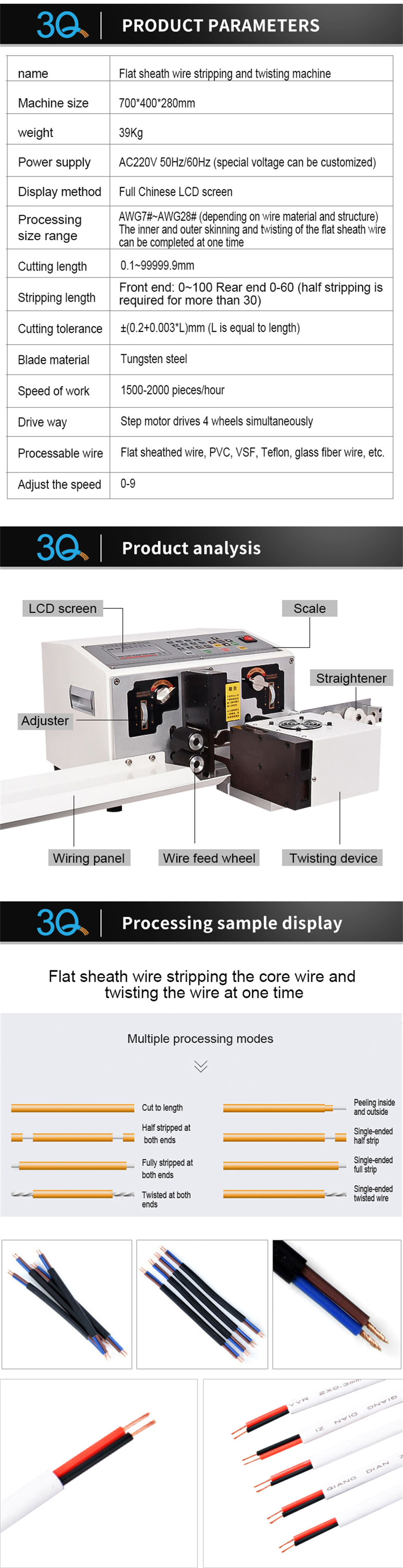

Product Parameters:
Name | Flat sheath wire stripping and twisting machine |
Machine size | 700*400*280mm |
weight | 39kg |
Power supply | AC220V 50Hz/60Hz (special voltage can be customized) |
Display method | Full Chinese LCD screen |
Processing size range | AWG7#~AWG28# (depending on wire material and structure) The inner and outer skinning and twisting of the flat sheath wire can be completed at one time |
Cutting length | 0.1-~9999.9mm |
Stripping length | Front end: 0~100 Rear end 0-60 (half stripping is required for more than 30) |
Cutting tolerance | +(0.2+0.003*L)mm (L is equal to length) |
Blade material | Tungsten steel |
Speed of work | 1500-2000 pieces/hour |
Drive way | Step motor drives 4 wheels simultaneously |
Processable wire | Flat sheathed wire, PVC, VSF, Teflon, glass fiber wire, etc. |
Adjust the speed | 0-9 |
Wire harness industry below like:
1. LED
2. Grid
3. New energy
4. Telecommunication
5. Air conditioner
6. Medical instrumental
7. Smart electronic device
8. New energy vehicles
9. Medical instruments
Data sheet
| Equipment model | SQ-BJYJ8110 |
| Equipment function | Thread cutting, internal and external peeling (support half peeling and full peeling) |
| Equipment characteristics | Low noise, simple operation, support a variety of peeling methods, and adapt to dfferent wire specifications |
| Overall dimension | 490*450*290mm |
| Equipment weight | 36kg |
| Rated power supply | AC220V 50/60Hz |
| Cutting length | 1-99999.9mm |
| Outer peling length | 1-30mm |
| Inner peeling length | 1-20mm |
| Motor power | 650W |
| Cutting wire core | Two core round sheath 6mm |
| Throughput | About 2000 pieces 1 hour (depending on the line of sight length) |
| Cutting tolerance | Within 0.002xlmm |
