Scrap Copper Wire Stripping Machine
Scrap Copper Wire Stripping Machine
Product overview

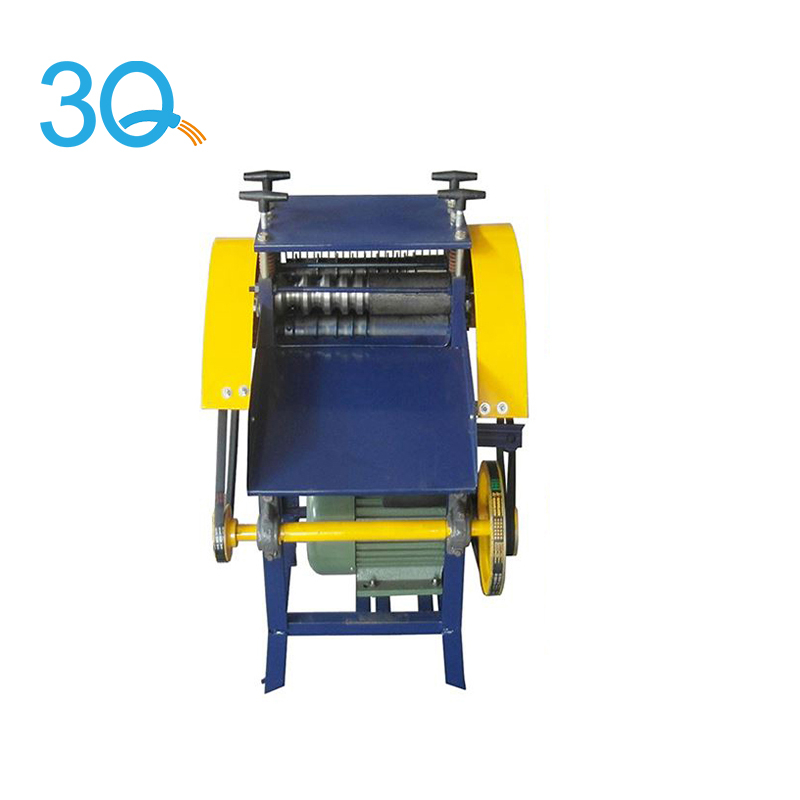

Product name: Automatic cable stripper machine
Automatic exit,automatic separation,copper core motor,stripping fast.
Applicable scope:
A wide range of wire,stripping,large wire,small wire,round wire,flat wire can be well done.
Scope of application:
1. Cable
2. Copper wire
3. Aluminum core wire
4. Electric wire
Core technologies:
1. Pure copper motor
2. Solid belt
3. Alloy steel knife
4. Adjustable screw rod
5. Multiple entry holes
6. High Hardened quenched roller
Mesh pattern increases cable friction and does not slip
7. Porous inlet
Note: If the wire is deviated or disconnected from time to time during feeding, check whether the wire inlet hole is loose, and adjust the screws on both sides of the wire inlet hole to the center.
Two types of heating handles are available:
1. Single knife type:
Single knife. Only the wire rubber can be cut, and the core and rubber need to be manually stripped
2. Double knife type:
The double-knife model can automatically separate the core and the rubber without manual peeling
Data sheet:
| MACHINE TYPE | 1 | 2 | 3 | 4 | 5 | 6 |
| NUMBER OF KNIVES | 8 | 13 | 14 | 23+5 | 19 | 2 |
| DIMENSIONS | 550*510*840 | 600*580*840 | 600*580*840 | 700*610*840 | 700*610*840 | 670*580*1150 |
| WEIGHT | 60KG | 80KG | 80KG | 110KG | 110KG | 135KG |
| STRIPPING HOLE | 8 | 10 | 9 | 10 | 11 | 1 |
| ROLLING HOLE | 3 | 2 | 2 | 1 | 2 | 0 |
| FLAT WIRE HOLE | 0 | 0 | 1 | 2 | 2 | 0 |
| TOTAL SCOPE | 1-30MM | 1-35MM | 1-35MM | 1-42MM | 1-55MM | 20-120MM |
| STRIPPING THICKNESS | ≤5MM | ≤5MM | ≤5MM | ≤5MM | ≤5MM | ≤5MM |
| POWER | 1.5KW | 2.2KW | 2.2KW | 2.2KW | 3KW | 3KW |
| VOLTAGE | 220V | 220V | 220V | 220V | 220V | 220V |
