3Q machine
Product overview

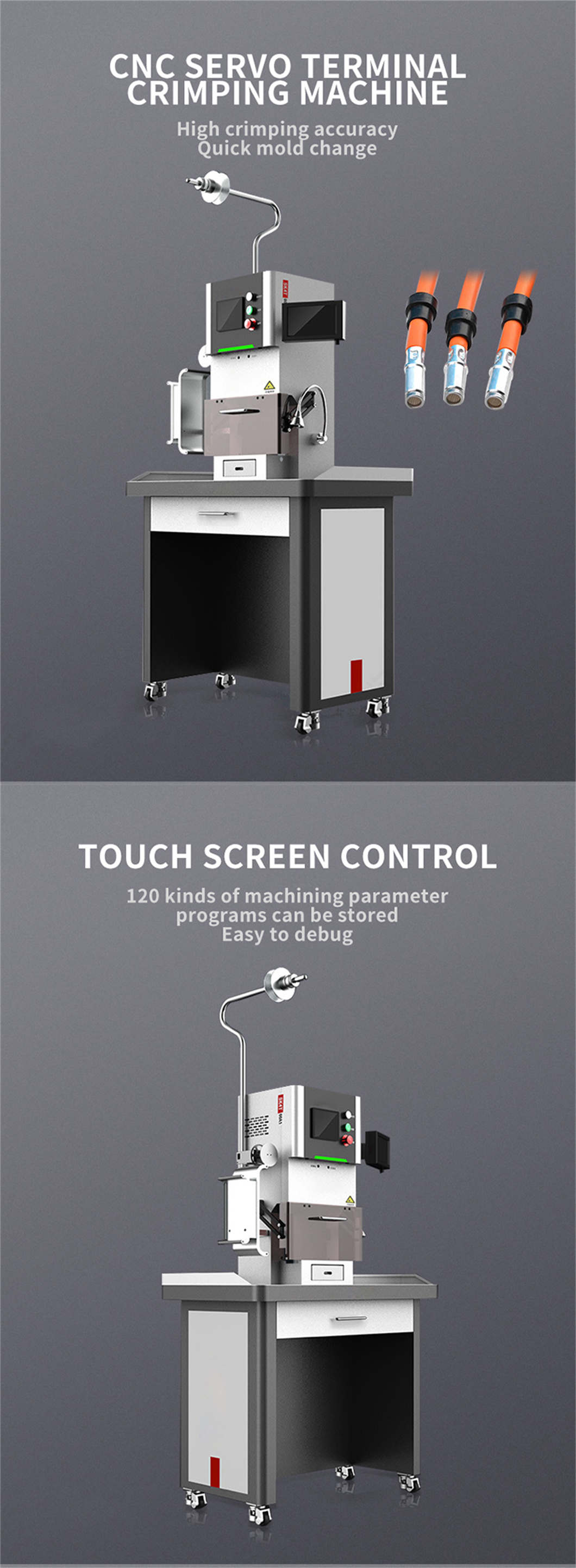

Product name: CNC servo terminal crimping machine

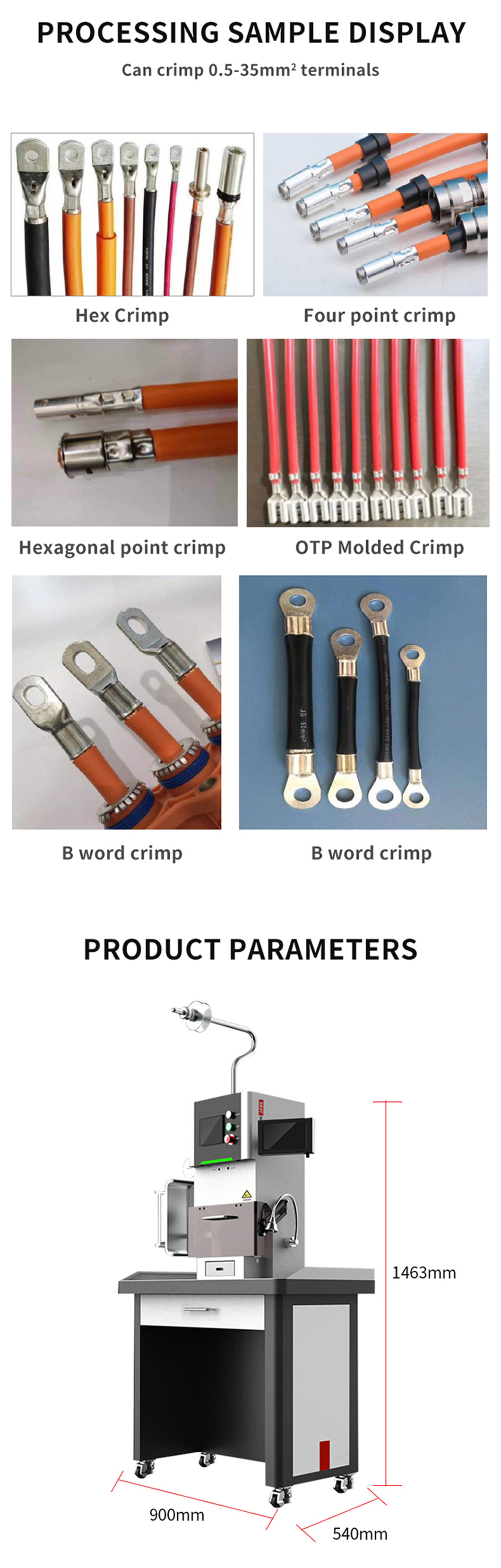

Processing sample display:
Can crimp 0.5-35mm2 terminals.
OTP transverse mode/four-point crimping die/six point crimping die/OTP straight die/four-side-free crimping die/hexagon free crimping die
Features:
1. Touch-screen control.
120 kinds of machining parameter programs can be stored.Easy to debug

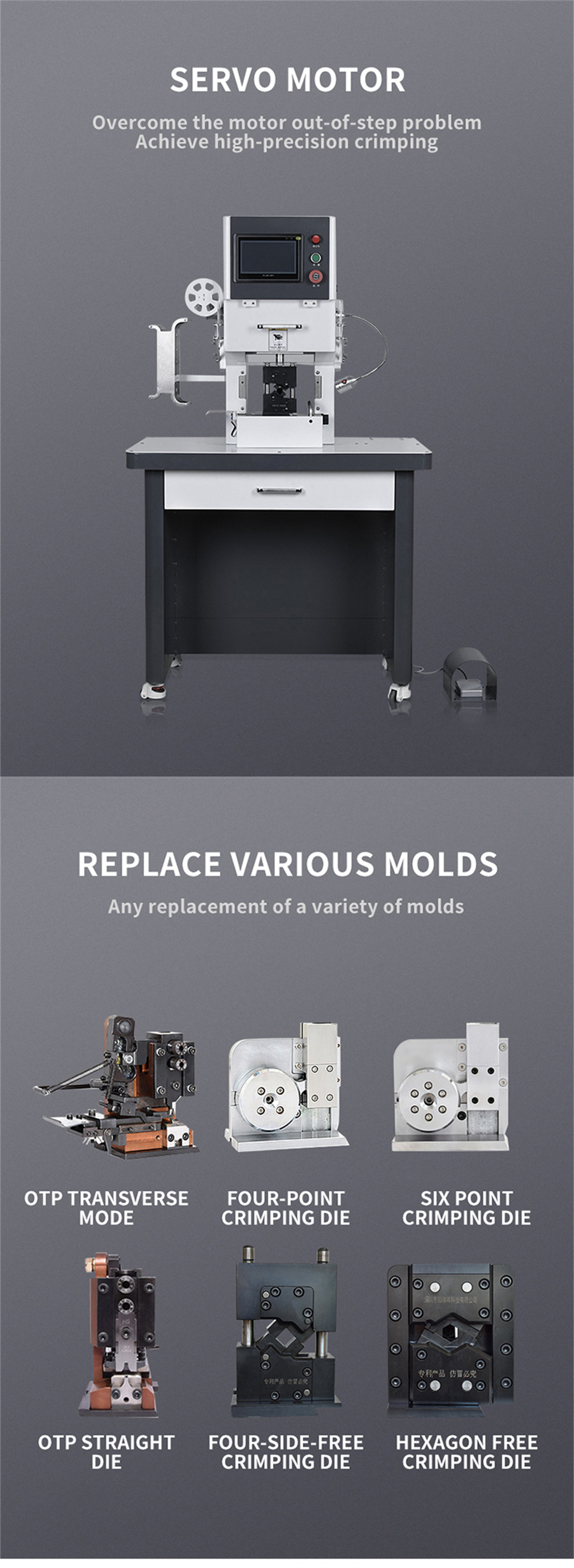

2. Servo motor
Overcome the motor out- of-step problem.Achieve high-precision crimping
3. Replace various molds
Any replacements of a variety of molds.

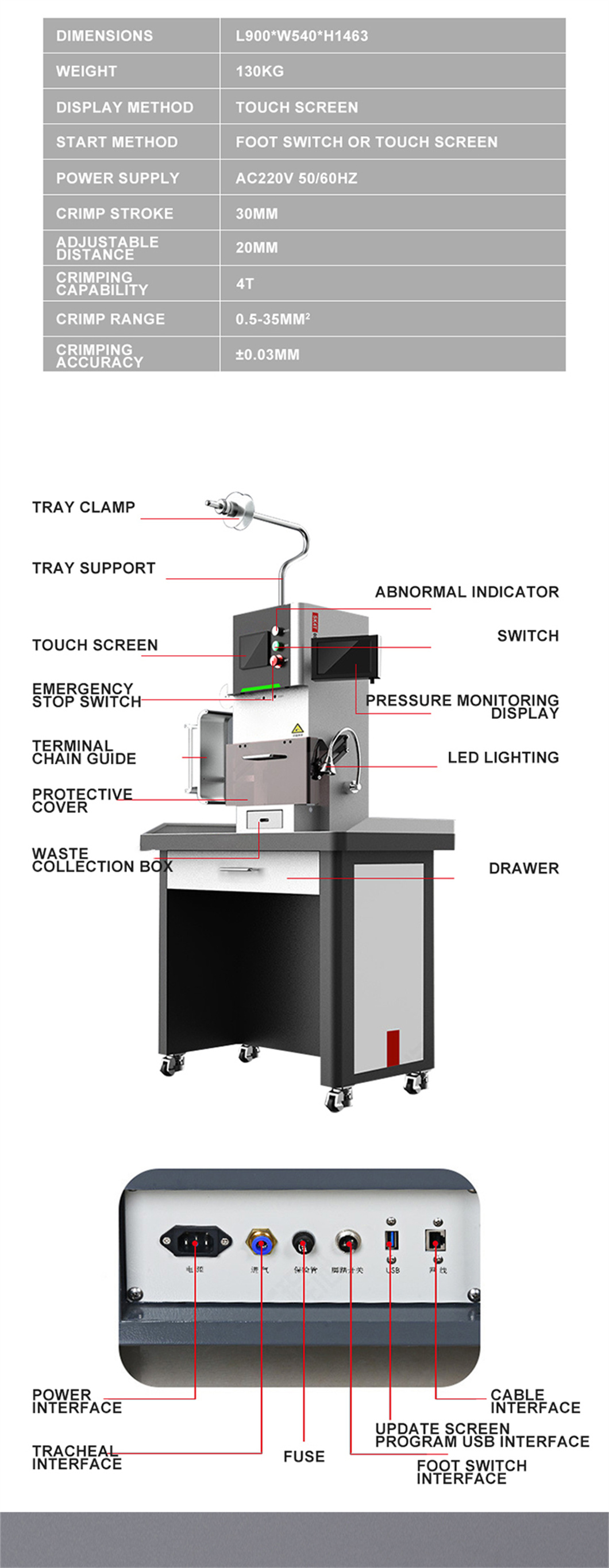

Structure of machine:
1. Tray clamp
2. Tray support
3. Emergency stop switch
4. Touch screen
5. Terminal chain guide
6. Protective cover
7. Waste collection box
8. Abnormal indicator
9. Switch
10. Pressure monitoring display
11. Led lighting
12. Drawer
13. Power interface
14. Tracheal interface
15. Fuse
16. Update screen program USB interface
17. Foot switch interface
18. Cable interface

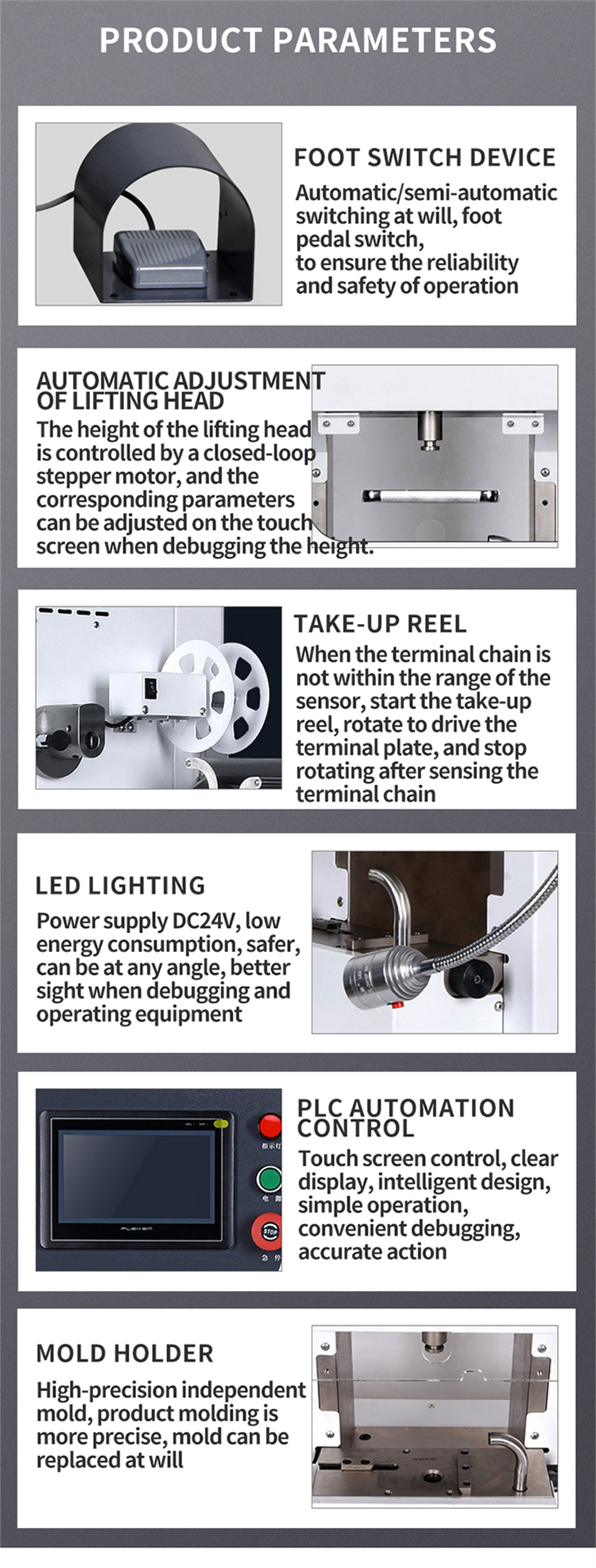

Product details:
1.Foot switch device
Automatic/semi- automatic switching at will, foot pedal switch,to ensure the reliability and safety of operation
2. Automatic adjustment of lifting head.
The height of the lifting head is controlled by a closed-loop stepper motor, and the
corresponding parameters can be adjusted on the touch screen when debugging the height.
3. Take-up reel
When the terminal chain is not within the range of the sensor, start the take-up
reel, rotate to drive the terminal plate, and stop rotating after sensing the terminal chain.
4. Led lighting
Power supply DC24V, low energy consumption, safer,can be at any angle, better
sight when debugging and operating equipment
5.PLC automatic control
Touch screen control, clear display, intelligent design, simple operation,convenient debugging,accurate action
6.Mold holder
High-precision independent mold, product molding is more precise, mold can be
replaced at will.
Product overview
Product name:CNC servo terminal crimping machine.
Processing sample display:
Can crimp 0.5-35mm2 terminals.
OTP transverse mode/four-point crimping die/six point crimping die/OTP straight die/four-side-free crimping die/hexagon free crimping die
Features:
1. Touch-screen control.
120 kinds of machining parameter programs can be stored.Easy to debug
2. Servo motor
Overcome the motor out- of-step problem.Achieve high-precision crimping
3. Replace various molds
Any replacements of a variety of molds Product details
Structure of machine:
1. Tray clamp
2. Tray support
3. Emergency stop switch
4. Touch screen
5. Terminal chain guide
6. Protective cover
7. Waste collection box
8. Abnormal indicator
9. Switch
10. Pressure monitoring display
11. Led lighting
12. Drawer
13. Power interface
14. Tracheal interface
15. Fuse
16. Update screen program USB interface
17. Foot switch interface
18. Cable interface
Product details:
1.Foot switch device
Automatic/semi- automatic switching at will, foot pedal switch,to ensure the reliability and safety of operation
2..Automatic adjustment of lifting head.
The height of the lifting head is controlled by a closed-loop stepper motor, and the
corresponding parameters can be adjusted on the touch screen when debugging the height.
3. Take-up reel
When the terminal chain is not within the range of the sensor, start the take-up
reel, rotate to drive the terminal plate, and stop rotating after sensing the terminal chain.
4. Led lighting
Power supply DC24V, low energy consumption, safer,can be at any angle, better
sight when debugging and operating equipment
5. PLC automatic control
Touch screen control, clear display, intelligent design, simple operation,convenient debugging,accurate action
6. Mold holder
High-precision independent mold, product molding is more precise, mold can be
replaced at will.
Data sheet:
| DIMENSIONS | L900*W540*H1463 |
| WEIGHT | 130KG |
| DISPL AY METHOD | TOUCH SCREEN |
| START METHOD | FOOT SWITCH OR TOUCH SCREEN |
| POWER SUPPLY | AC220V 50/60HZ |
| CRIMP STROKE | 30MM |
| ADJUSTABLE DISTANCE | 20MM |
| CRIMPING CAPABILITY | 4T |
| CRIMP RANGE | 0.5-35MM2 |
| CRIMPING ACCURACY | +-0.03MM |
