Automatic 8T Mute Terminal Crimping Machine.
Home » Products » Terminal Crimping Machine » Automatic 8T Mute Terminal Crimping Machine.

Automatic 8T Mute Terminal Crimping Machine.

Availability:
Quantity:
  • 3Q machine

详情页_01详情页_02详情页_03详情页_04详情页_05

wire stripping machine

工厂展示_01工厂展示_02工厂展示_03独立站证书

WIRE STRIPPING MACHINE

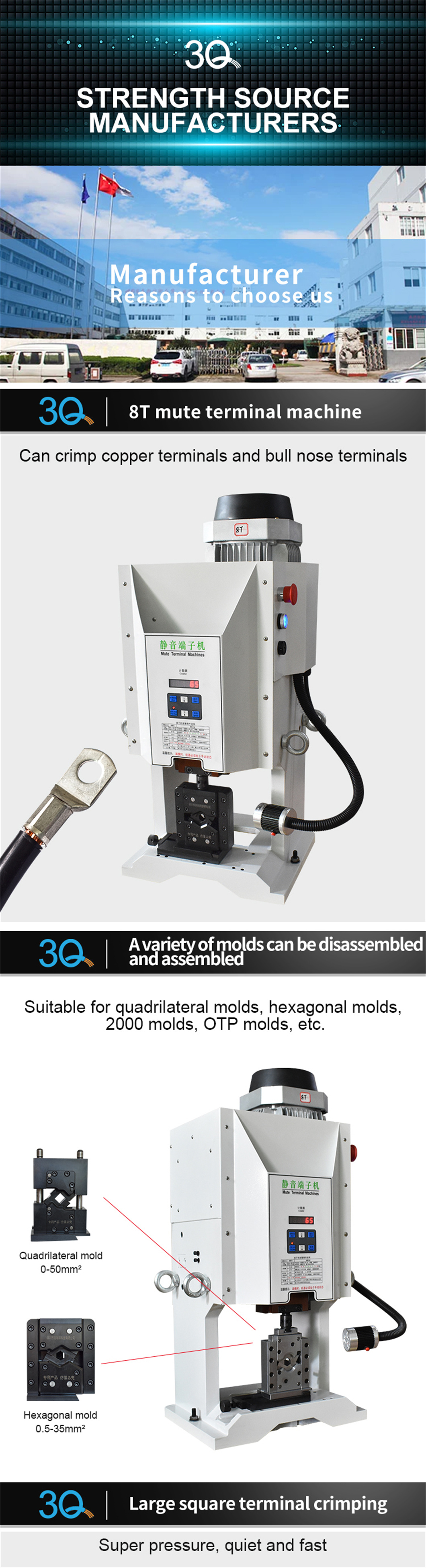

Product overview

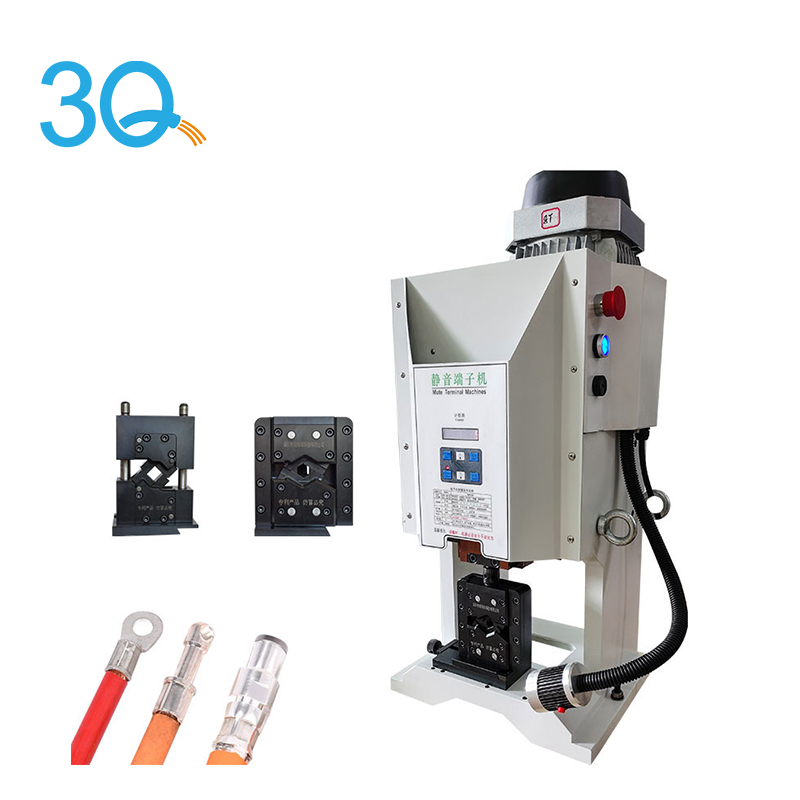

Product name : 8T mute terminal machine.

Usage:can crimp copper terminals and bull nose terminals,Suitable for computer terminals, bull nose, copper terminals, DC/AC terminals, single-grain terminals, continuous terminals, cold-pressed terminals, etc.


Features:

1 .A variety of molds can be disassembled and assembled

Suitable for quadrilateral molds, hexagonal molds, 2000 molds, OTP molds, etc.

Quadrilateral mold 0-55mm2  hexagonal mold 0.5-35mm2

2. Large square terminal crimping

3. Super press, quiet and fast.

One press molding,get rid of the cumbersome.

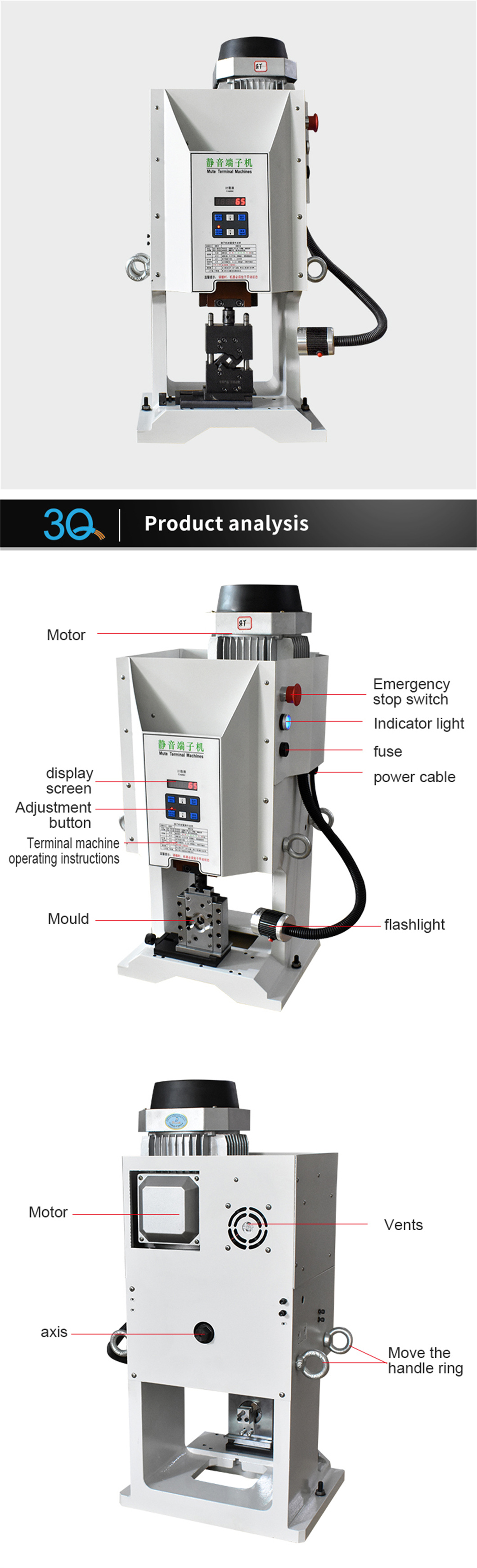

Product all parts introduction:

1. Motor

2. Display screen

3. Adjustment button

4. Terminal machine operating instructions

5. Mould

6. Emergency stop switch

7. Indicator light

8. Fuse

9. Power cable

10. Flashlight

11. Motor

12. Axis

13. Move the handle ring

14. Vents

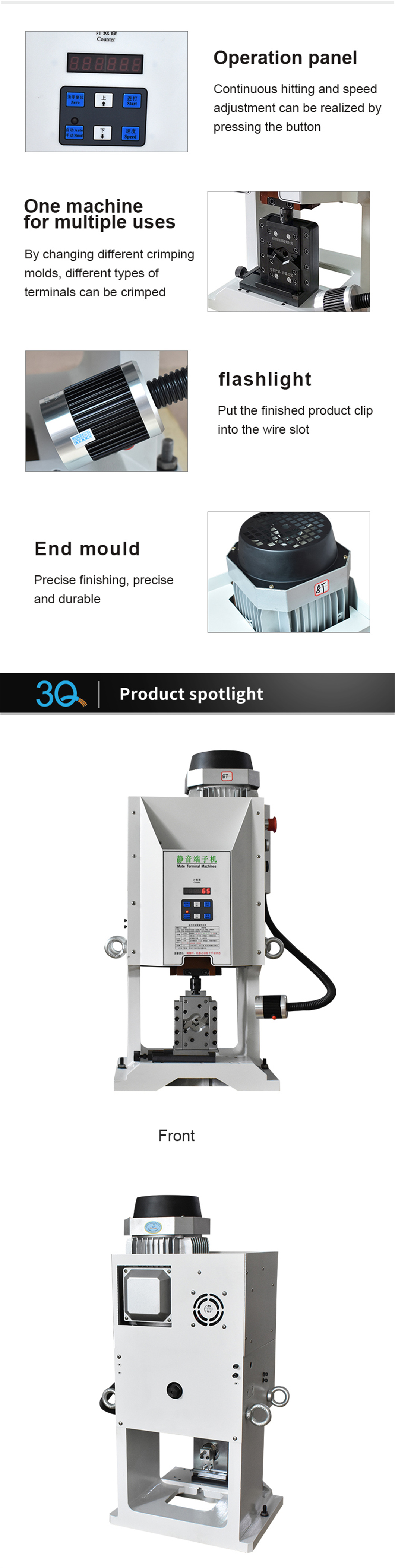

Product details:

1. Operation panel

Continuous hitting and speed adjustment can be realized by pressing the button

2. One machine for multiple uses

By changing different crimping molds, different types of terminals can be crimped.

3. Flashlight

Put the finished product clip into the wire slot.

4. End mould

Precise finishing,precise and durable.

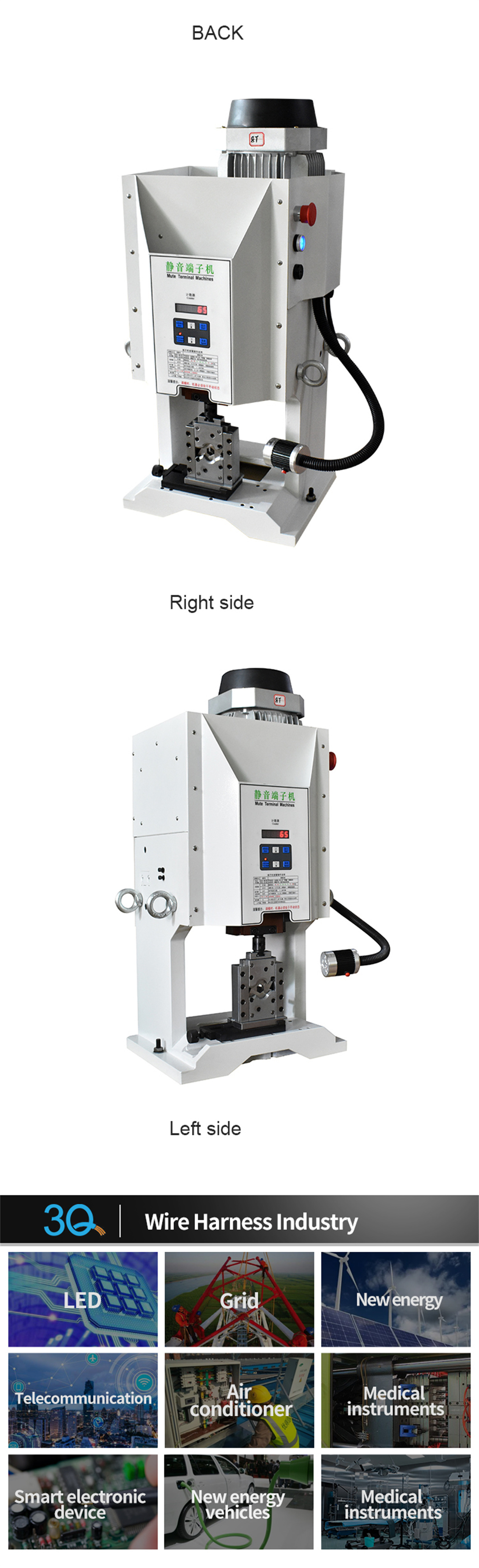

Wire harness industry:

1. Led

2. Grid

3. New energy

4. Telecommunication

5. Air conditioner

6. Medical instruments

7. Smart electronic device

8. New energy vehicles

9. Medical instruments

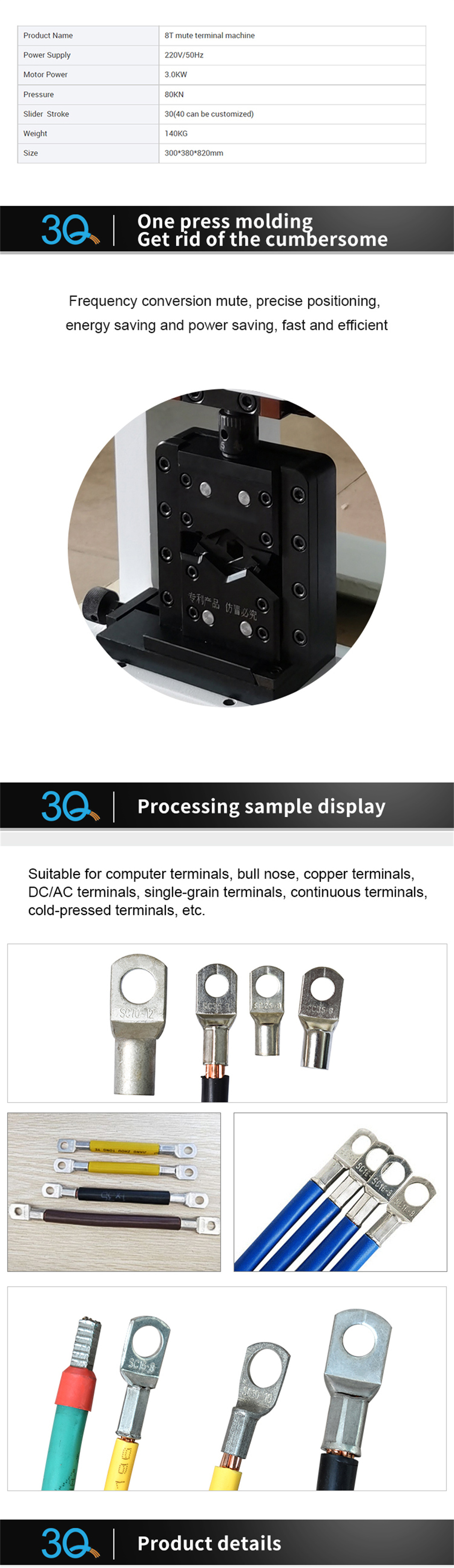

Data sheet:

Product name8T mute terminal machine
Power supply220V/50HZ
Motor power3.0KW
Pressure80KN
Slide stroke30(40 can be customized)
Weight140KG
Size300*380*820mm
