Product overview

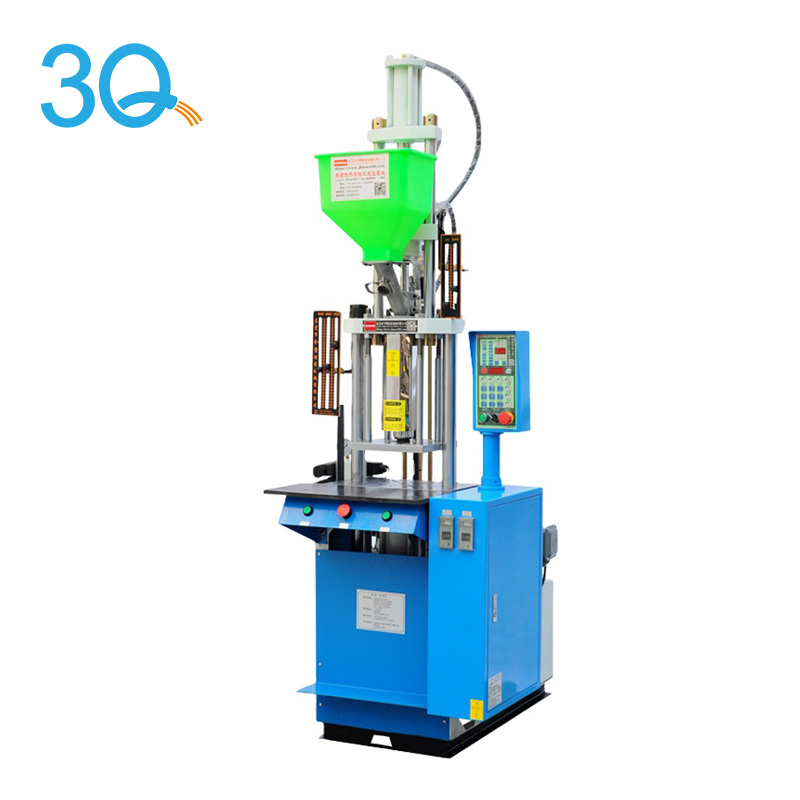

Product name: 15T vertical injection molding machine

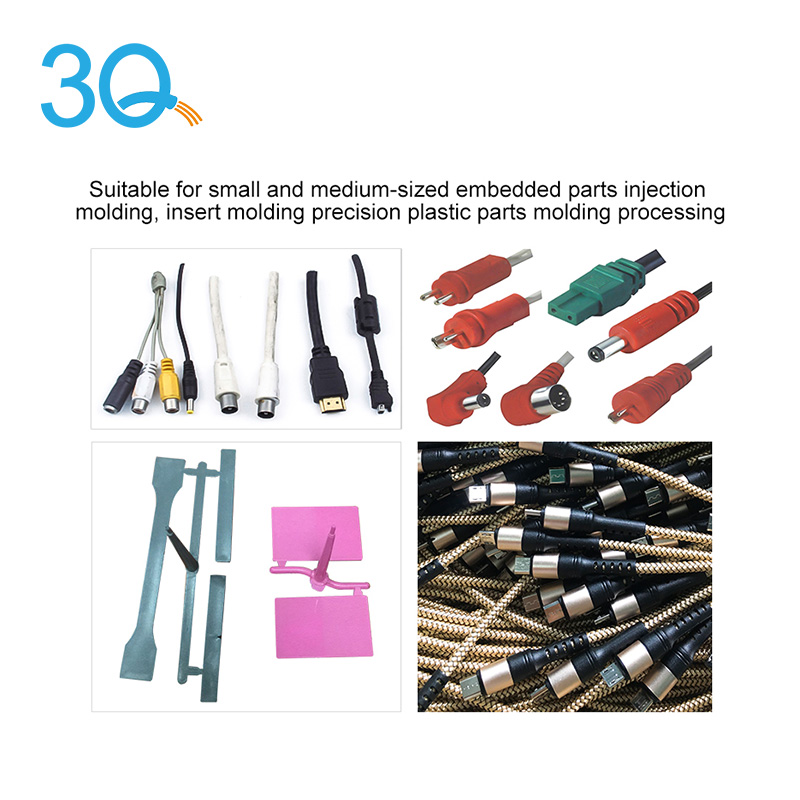

Processing sample display:
Suitable for forming and processing of DC plugs and signal wires
Suitable for PVC material, TPE material, PP material, PE material, etc.
Features:
1. Fixed die movable upper mold
For the good positioning of the insert, and equipped with the finished product ejection device the finished product is very convenient and easy to take out, the stress distribution is even, the injection pressure protection is accurate, and the whole stroke is smooth and excellent.
2. The lower mold is fixed and the upper mold is mobile, the inserts
have good positioning, and the finished product is automatically ejected
3. Low pressure mold closing device to protect mold and personal safety
4. 2-3-4 section temperature control, stepless adjustment of shooting speed, back pressure and screw speed,suitable for molding various precision plastic parts
5. Single/double slide plates,discs, etc. can be added to improve work safety and work efficiency
6. Low pressure mold closing device
This model is a direct pressure combined mold structure, fast mold clamping, low pressure and slow mold closing, and the machine will automatically open the mold when the mold is abnormal. The unique safety design protects personal safety and protects the mold.
Product details:
1. 103A computer control
2. Motor
3. Back oil gauge
4. Hydraulic motor
Wire harness industry:
5. Led
6. Grid
7. New energy
8. Telecommunication
9. Air conditioner
10. Medical instruments
11. Smart electronic device
12. New energy vehicles
13. Medical instruments
Data sheet:
| injection unit | screw diameter | 22mm | 26mm |
| injection pressure | 2100kg/cm2 | 2800kg/cm2 |
| max.shot weight(ps) | 40g | 51g |
| injection rate | 120mm |
| screw speed max. | 0-230turn |
| nozzle retraction |
|
|
| number of temperature control | 2snt |
| claming unit | claming force | 15tons |
| platen size | 470*285mm |
| distance between tie bere | 290mm |
| min.mold height | 40/100mm |
| opening stroke | 200mm |
| max.open daylight | 240/300mm |
| ejetor force | 1.5tons |
| power/heading unit | max.hydaulic pressure | 140kg/m2 |
| pump outpet | 23/min |
| pump motor power | 2.2/3.0HP |
| berrel heating power | 2kw |
| total weight | 4.2kw |
| other | machine weight | 820kg |
| machine dimension(L*M*H) | 1.3*0.9*2.3m |
