20mm Wire Harness Tape Wrapping Machine

Intelligent Full & Point Wrapping: Engineered with advanced digital control to support both continuous full wrapping and precise point wrapping. Flexible mode switching allows for professional preparation of diverse wire harnesses in one machine.
Specialized for New Energy EV Cables: Highly compatible with modern automotive wiring standards. Specifically optimized for the irregular shapes of EV battery harnesses and multi-core cables, ensuring consistent tape overlapping.
High Productivity (30 pcs/min): Features an industrial-grade drive system delivering a stable capacity of 8 to 30 pieces per minute. Dramatically improves your assembly line throughput compared to manual or handheld taping tools.

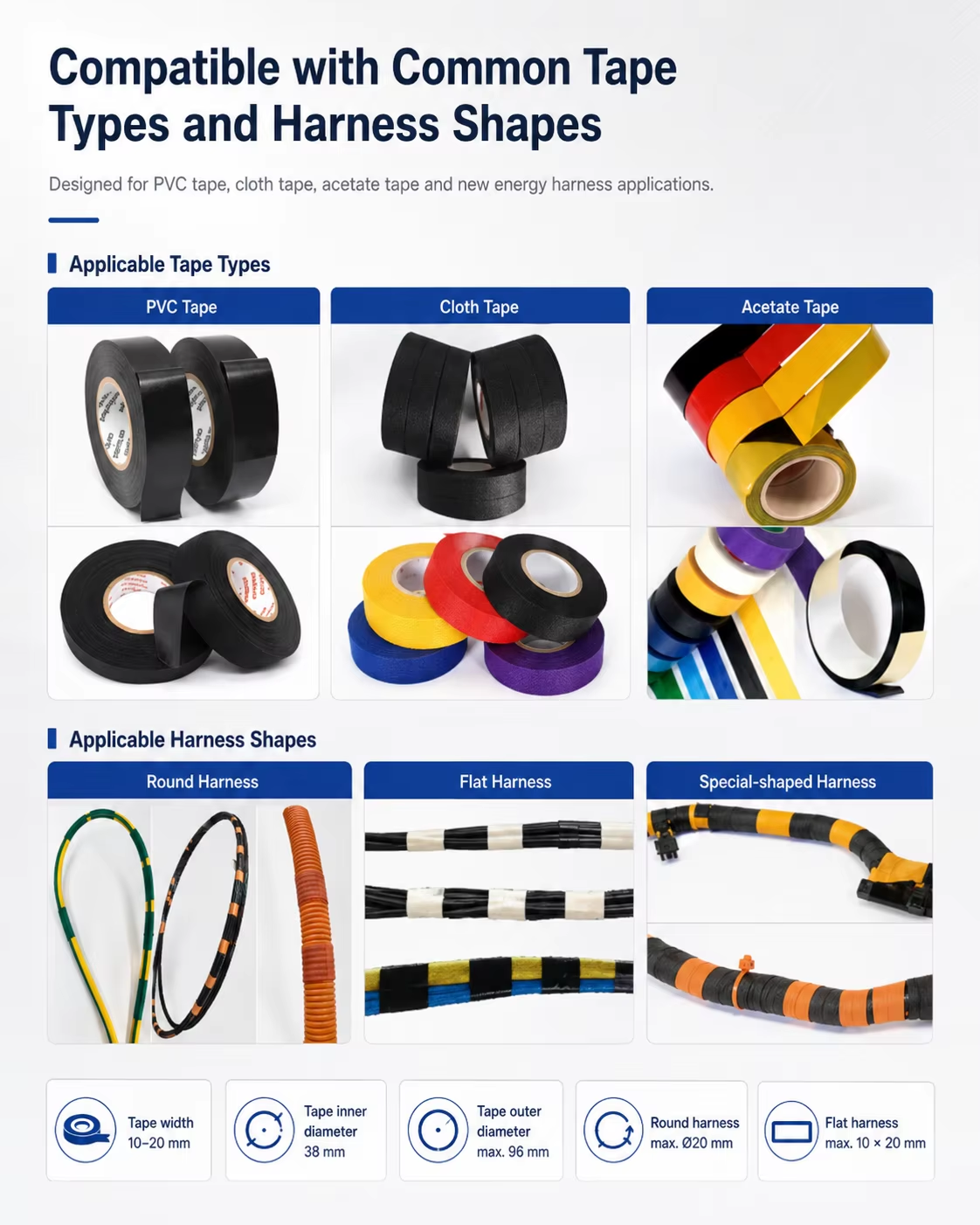

Versatile Harness Compatibility: Expertly handles various wire shapes, including round harnesses up to 20 mm OD and flat harnesses up to 10 x 20 mm. Perfect for PVC, cloth, and acetate tapes with 10-20 mm width.

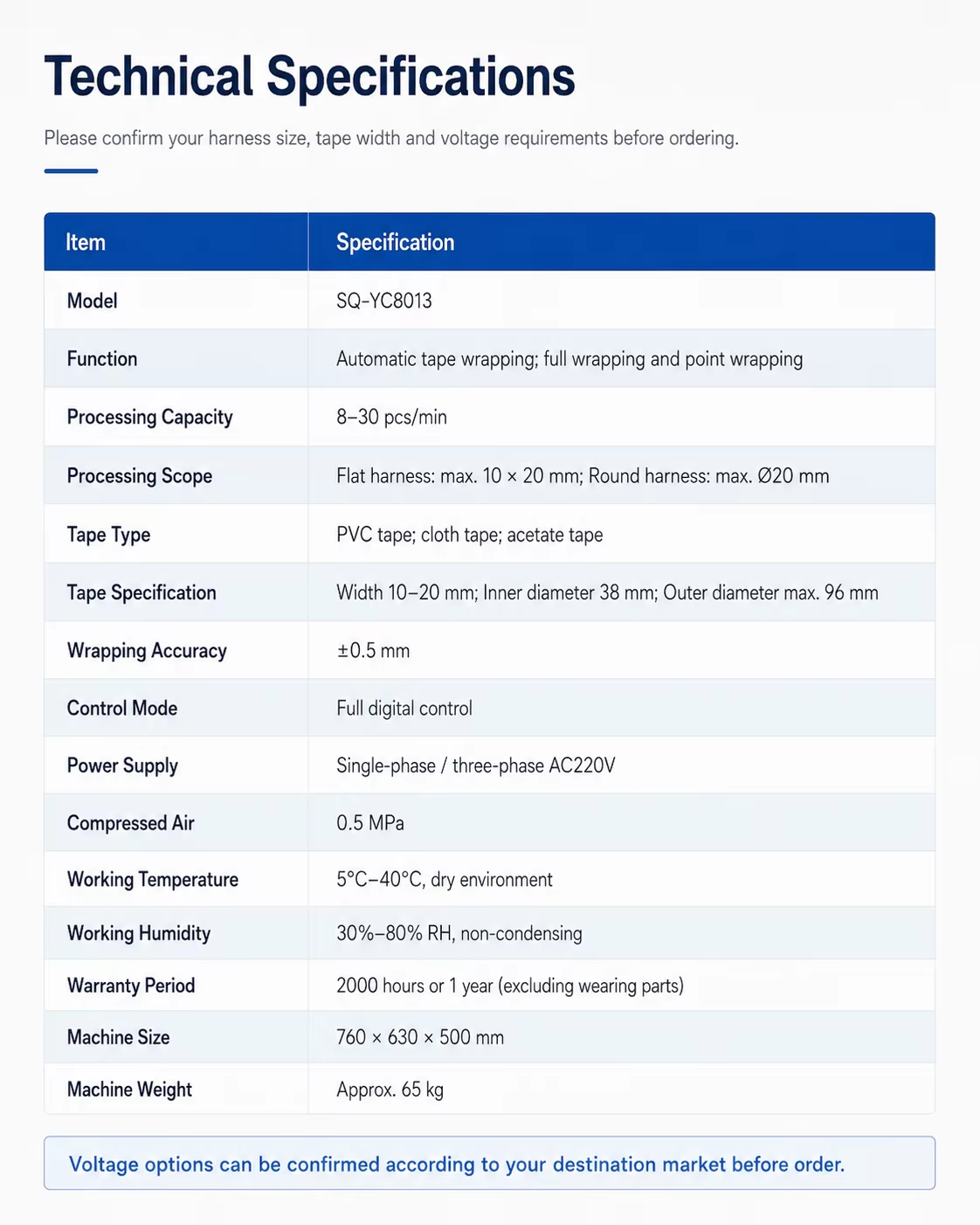

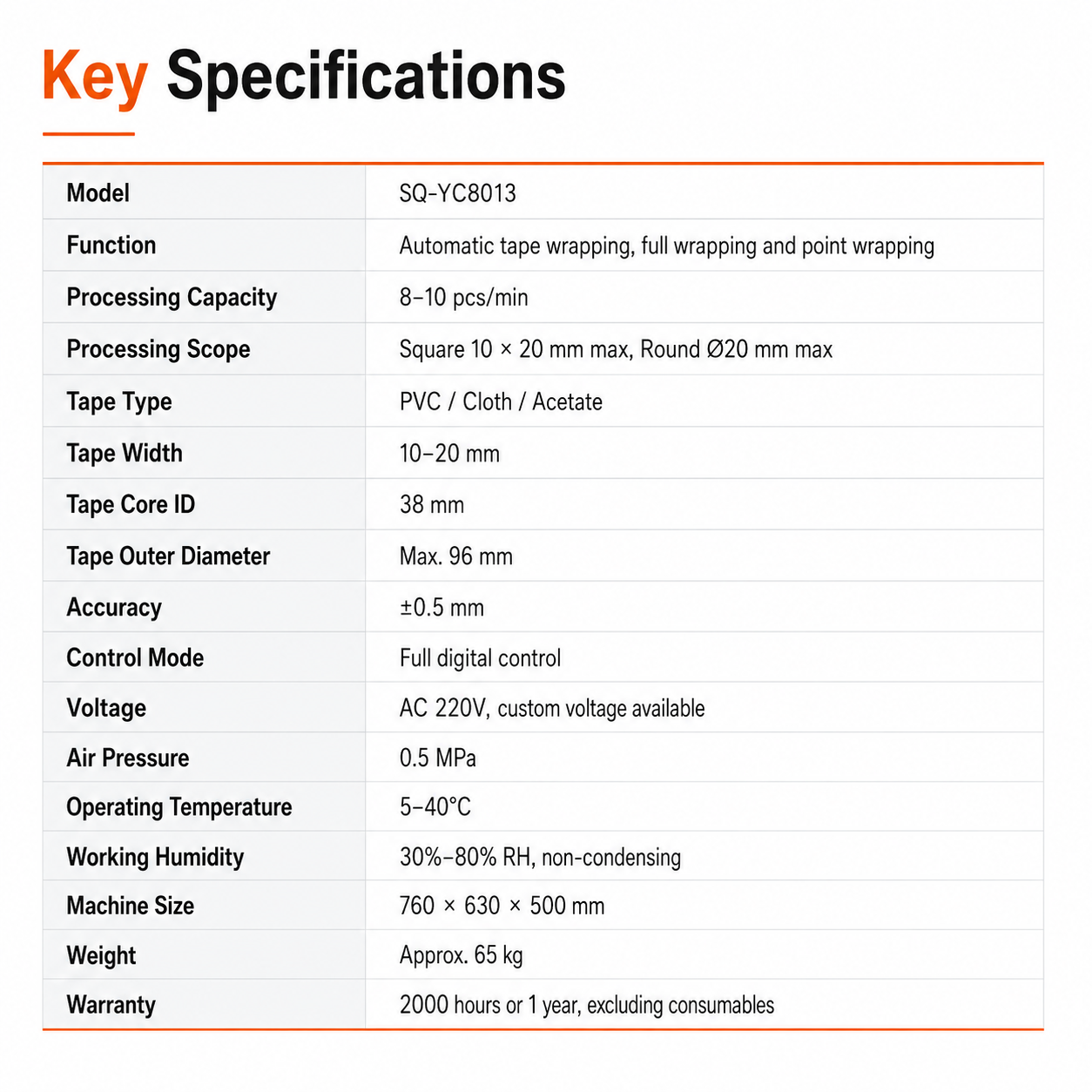

Digital Precision & Consistency: Full digital parameter settings ensure a strict ±0.5 mm wrapping accuracy. Maintains uniform quality for 2000 hours or 1 year of operation, providing professional-grade results for high-standard manufacturing.

Availability:

Quantity:



Inquire Add to Basket

Model:
SQ-YC8013
Brand:
3Q

Product Description

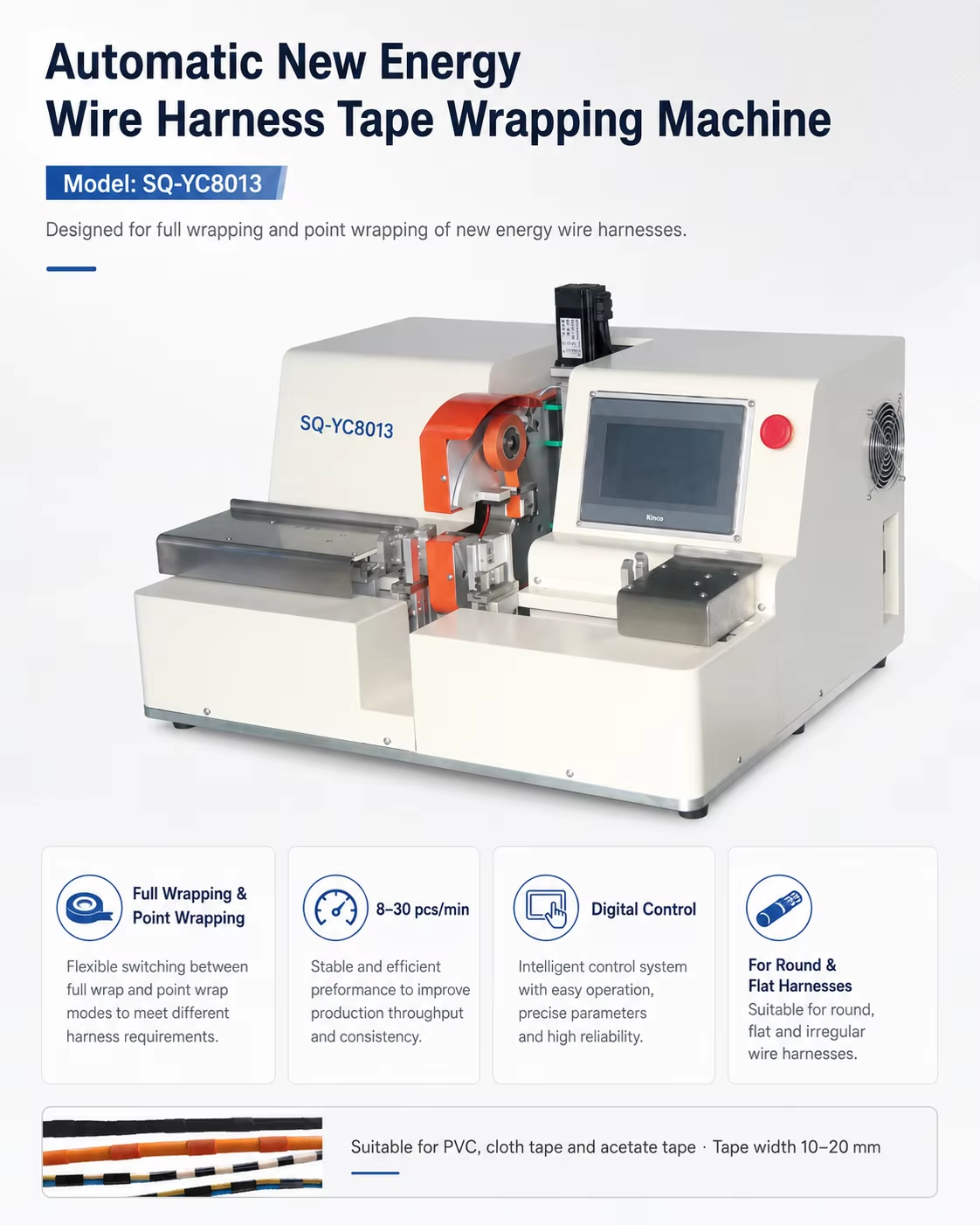

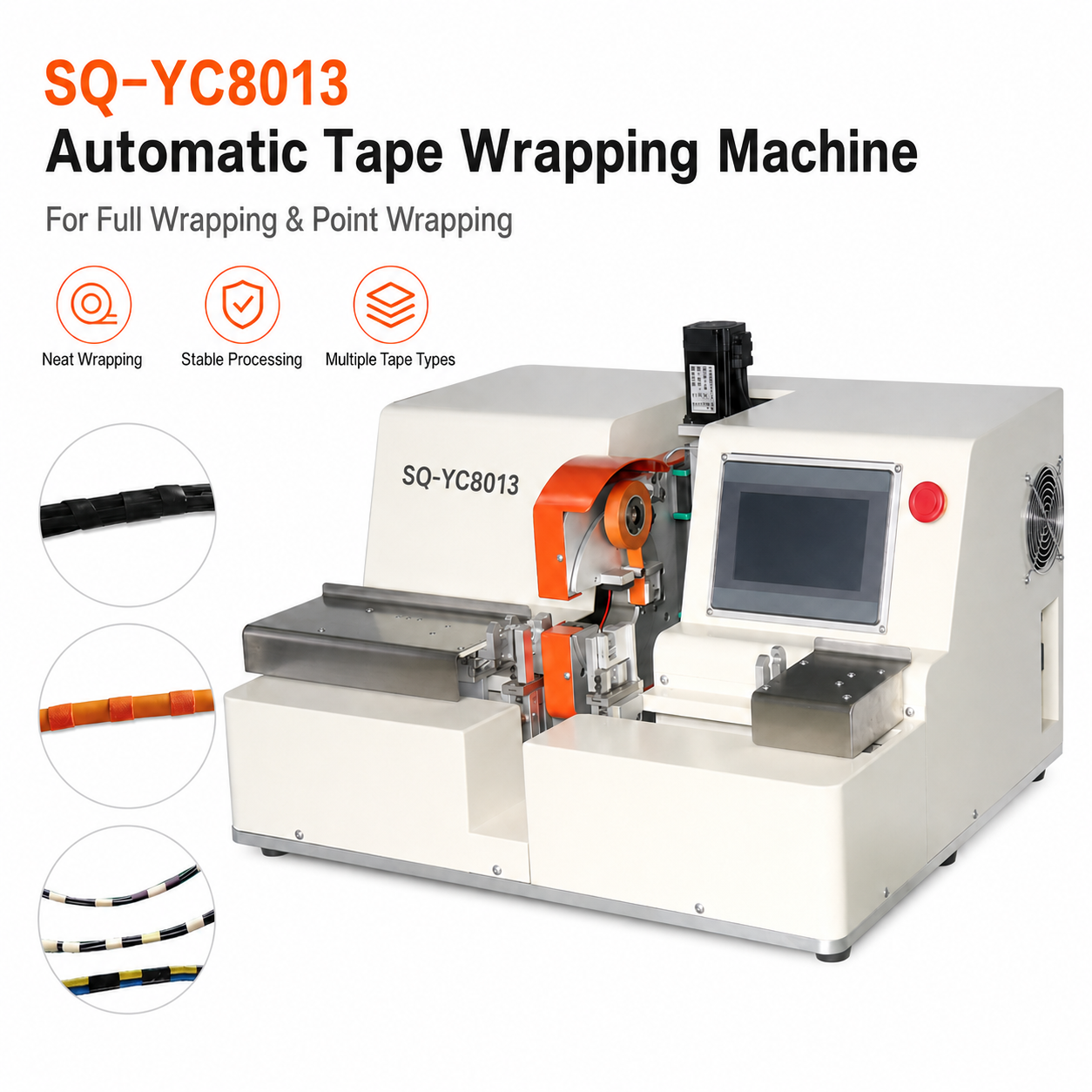

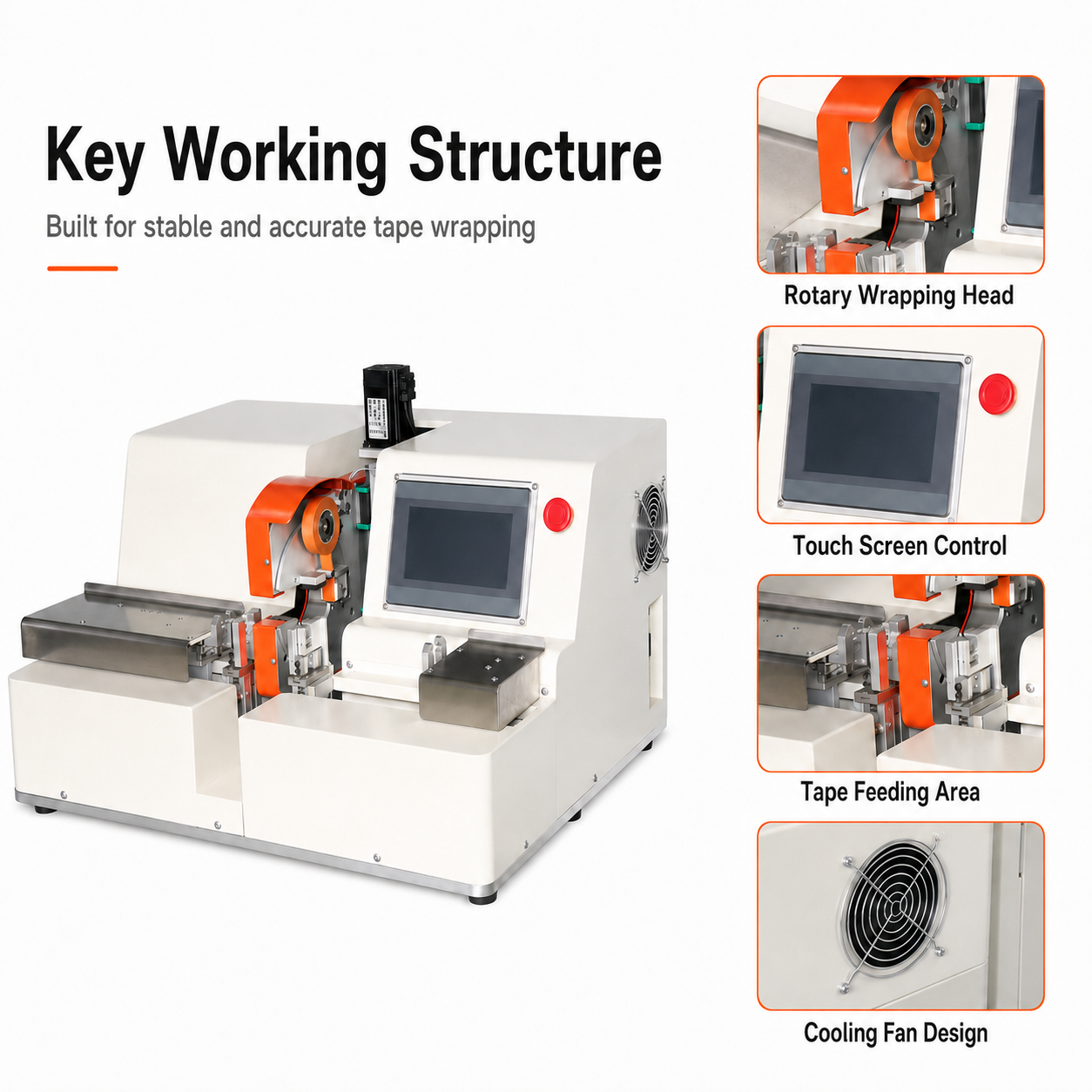

Model: SQ-YC8013 Automatic New Energy Wire Harness Taping Machine

Superior Versatility: Capable of processing flat harnesses up to 10 x 20mm and round harnesses up to 20mm OD. Ideal for multi-core cables used in battery packs and automotive control units.

Advanced Taping Efficiency:

Dual Wrapping Modes: Specifically designed for the complex requirements of EV wire harnesses. Supports both full wrapping (overlapping) and point wrapping (spot taping) with quick digital switching.

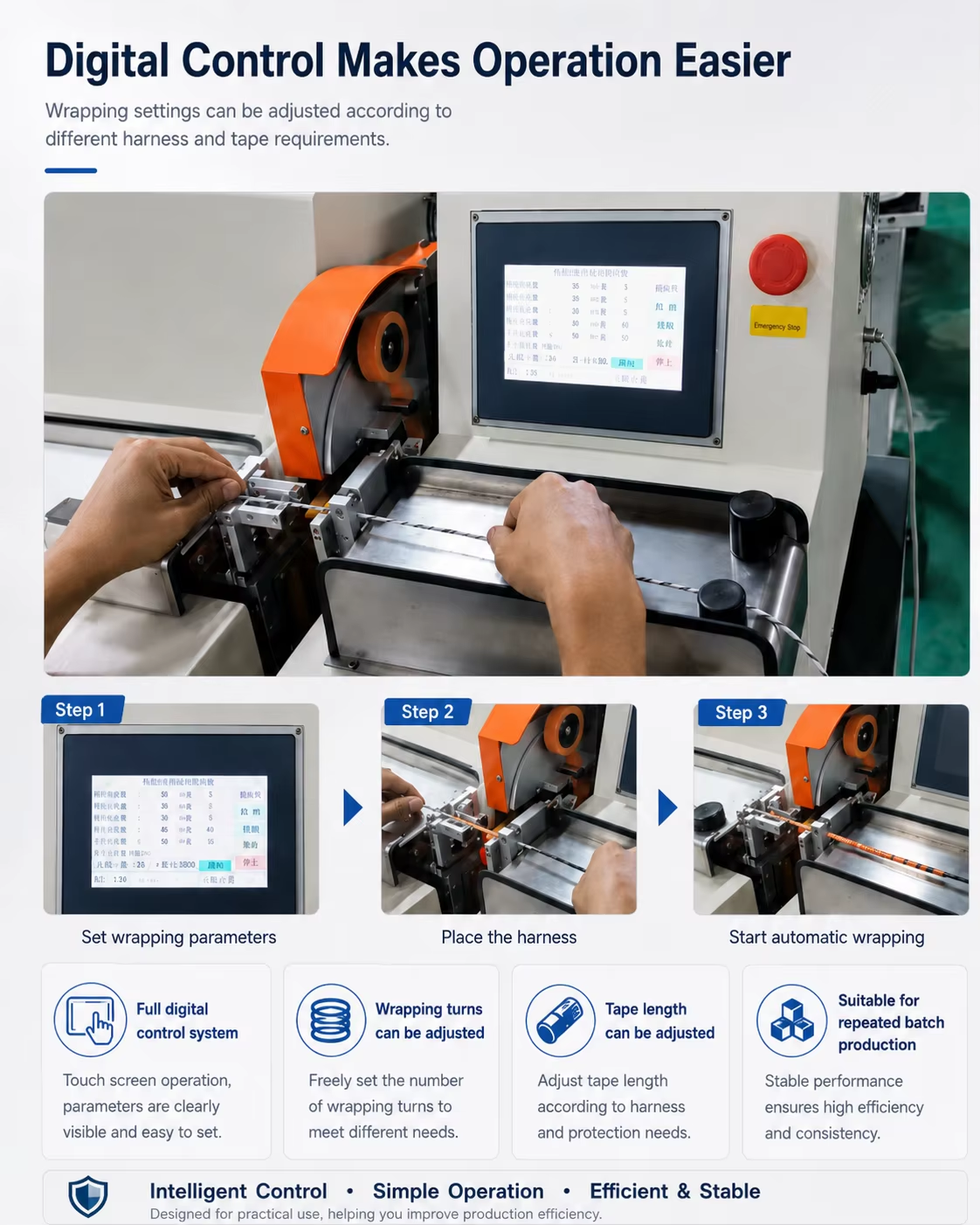

Precision Digital Control: Every parameter, including wrapping speed and tape tension, is controlled digitally. This ensures consistent quality across large batches of harnesses with a width of up to 20 sq mm for cross-sections.

Support:

1-Year Warranty | Expert After-Sales Service | Send us your harness samples today for a customized taping solution and FREE video demo!

automatic cable harness tape winding machine wire harness tape wrapping machine Automatic Car Wire Harness Tape Wrapping Machine Wire Harness Tape Machine Car Wire Harness Tape Wrapping Machine
