    3-28mm Bench-top Semi-automatic Wire Harness Tape Wrapping Machine
    Home » Products » Wire Harness Tape Machine » 3-28mm Bench-top Semi-automatic Wire Harness Tape Wrapping Machine

    loading

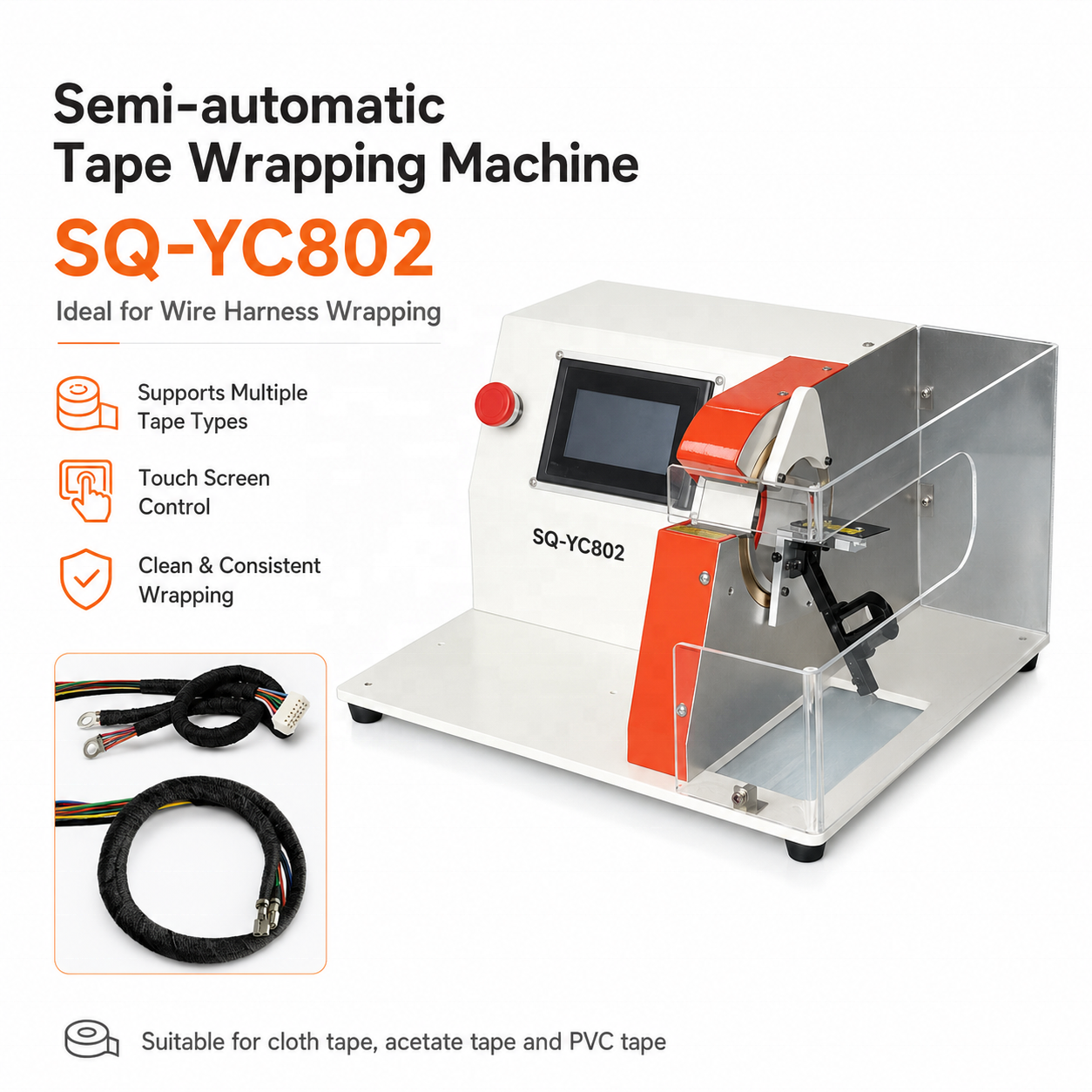

    3-28mm Bench-top Semi-automatic Wire Harness Tape Wrapping Machine

    • Smart Foot Switch Control: Designed with an ergonomic foot pedal system that frees up the operator's hands. Allows for manual guiding of complex wire harnesses, significantly reducing fatigue and improving wrapping quality.
    • Versatile Taping Modes: Advanced control system supports seamless switching between continuous full wrapping and spot wrapping. Provides the flexibility needed to process diverse automotive and consumer electronic wire harnesses.
    • Compact Desktop Footprint: Space-saving and lightweight design (approx. 25kg) makes it incredibly easy to integrate into any existing factory workbench or small assembly line without requiring heavy lifting equipment.

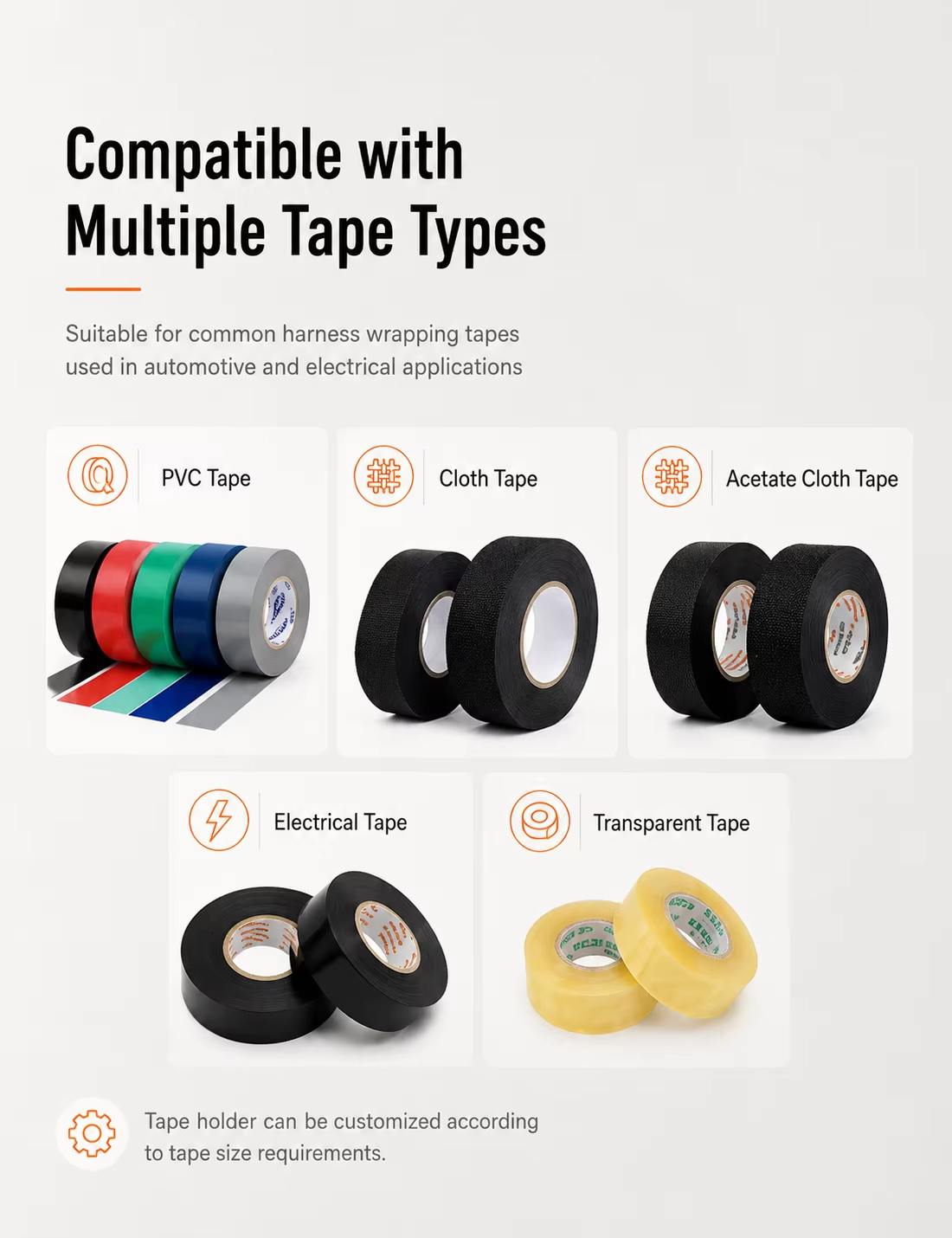

    • Wide Processing Capacity: Effectively handles wire harnesses ranging from 3mm to 28mm in diameter with unlimited winding length. Compatible with standard PVC, cloth, and acetate tapes (up to 20mm width).
    • High-Speed Winding (12 R/S): Delivers a fast and stable winding frequency of 12 rotations per second. Replaces slow manual taping, ensuring uniform tape overlap and professional-grade insulation for every batch.
    Availability:
    Quantity:
    Inquire Add to Basket

    • SQ-YC802

    • 3Q

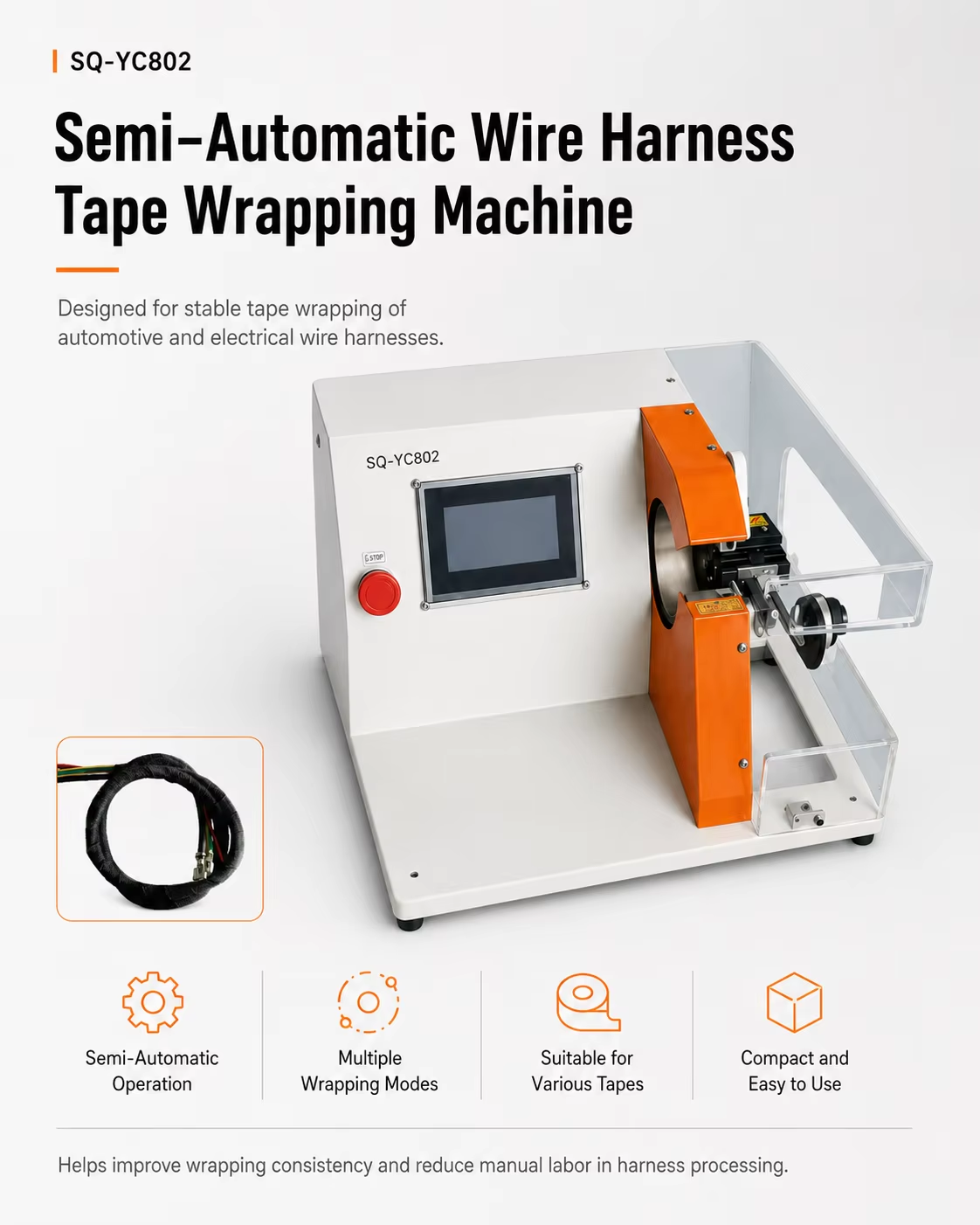

    详情 (3).png

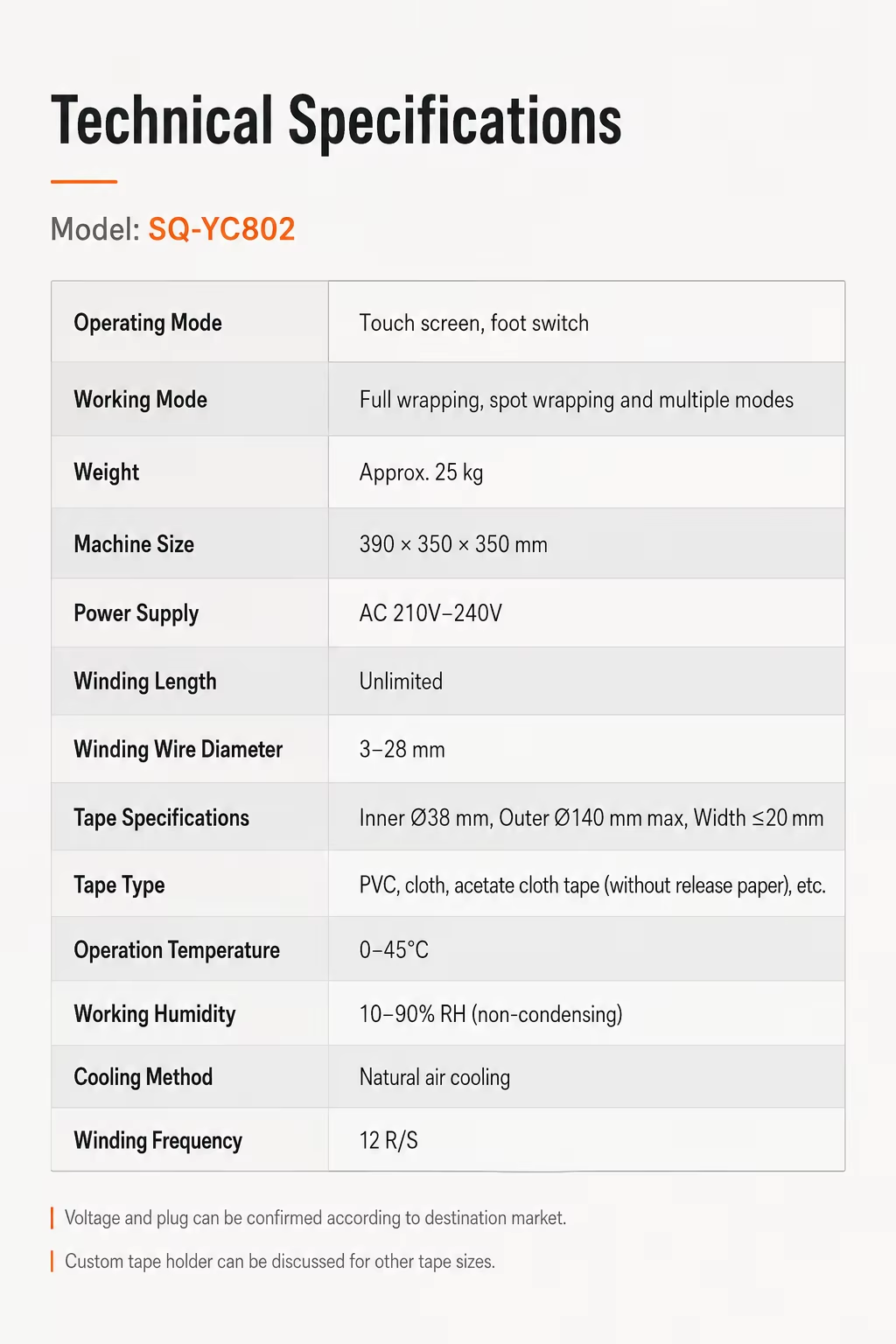

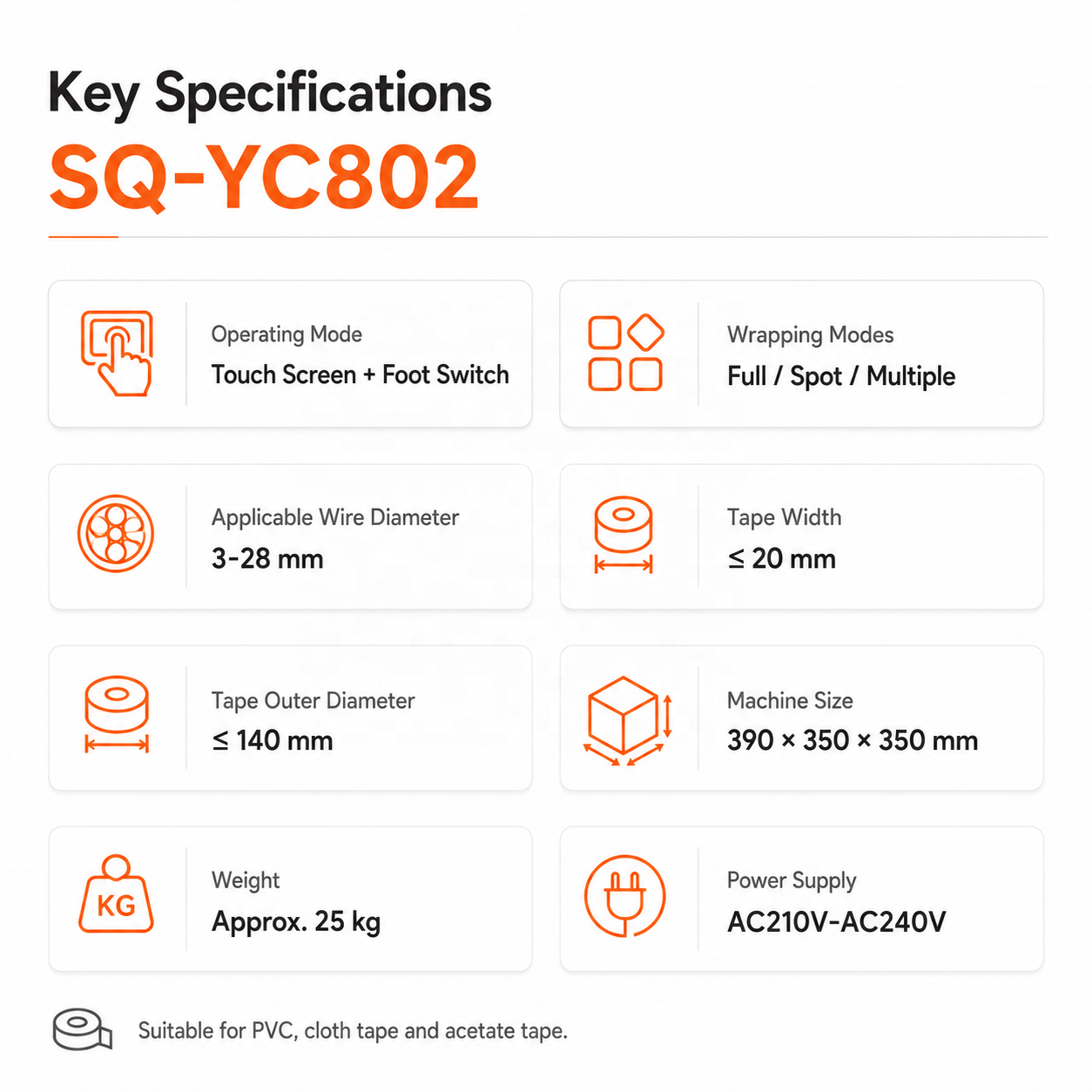

    Model: SQ-YC802 Desktop Semi-Automatic Wire Harness Taping Machine

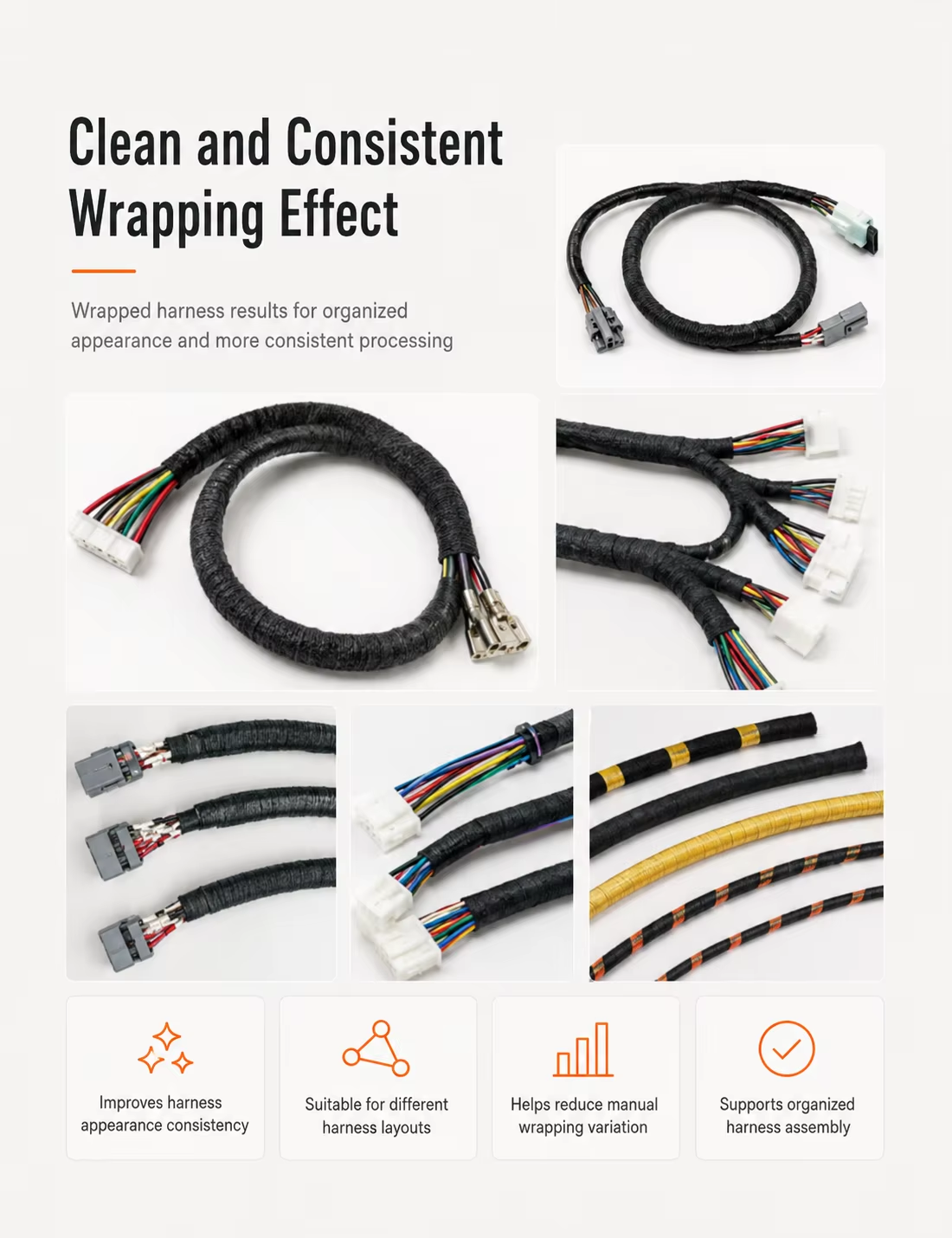

    详情 (2).png

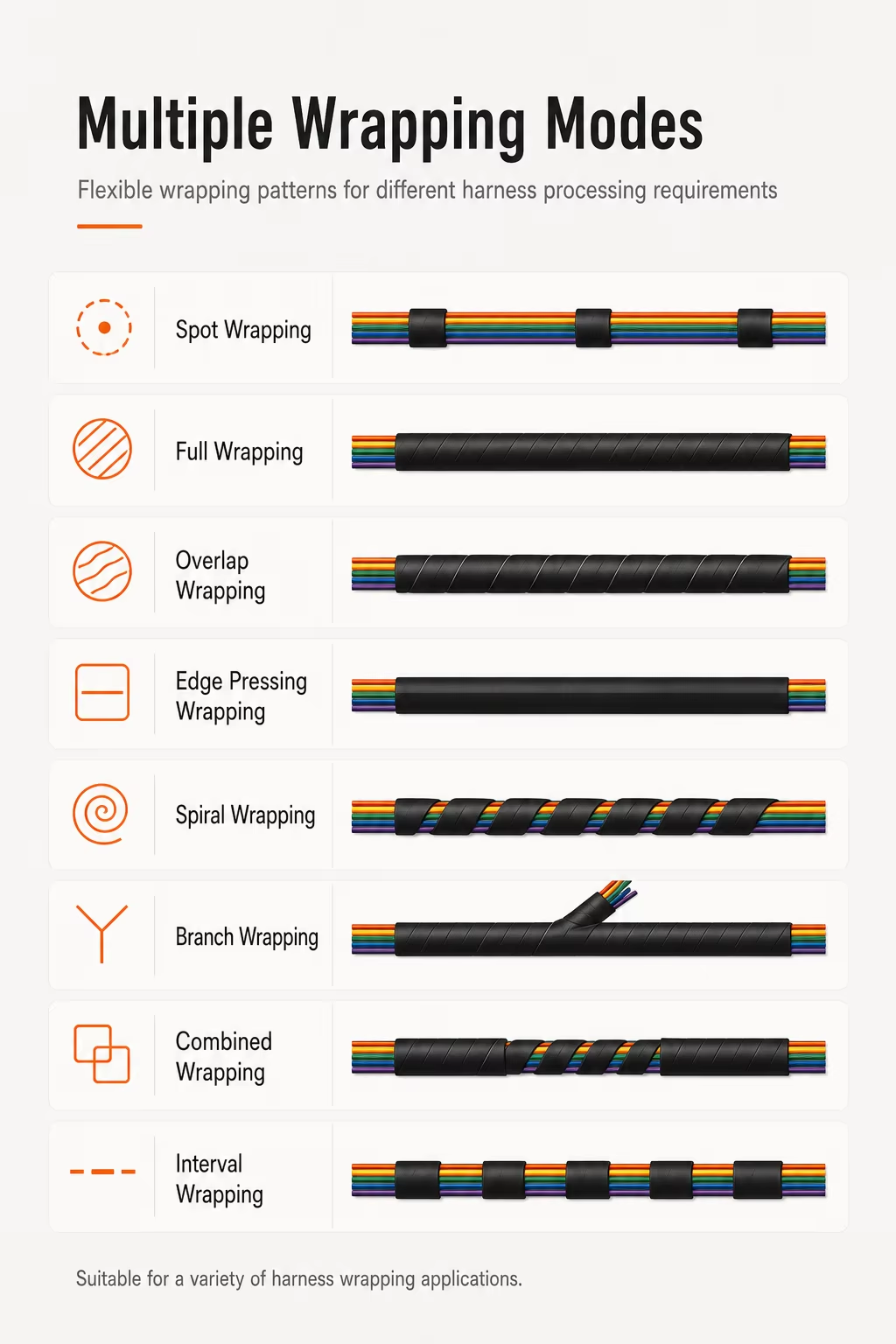

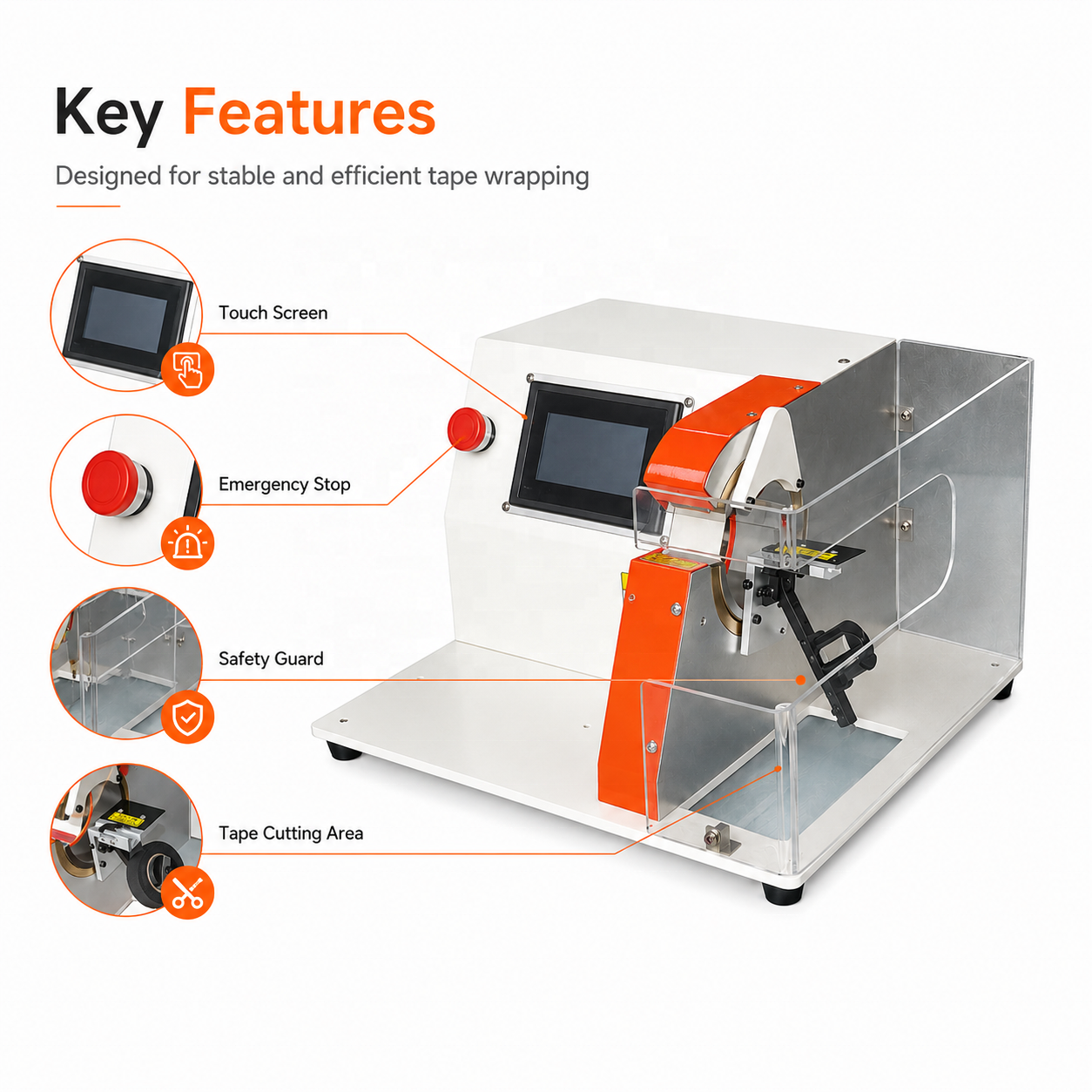

    Multiple Wrapping Modes: Easily switch between full continuous wrapping and precise spot wrapping via the intuitive touch screen. Highly adaptable for diverse automotive and electrical wiring requirements.

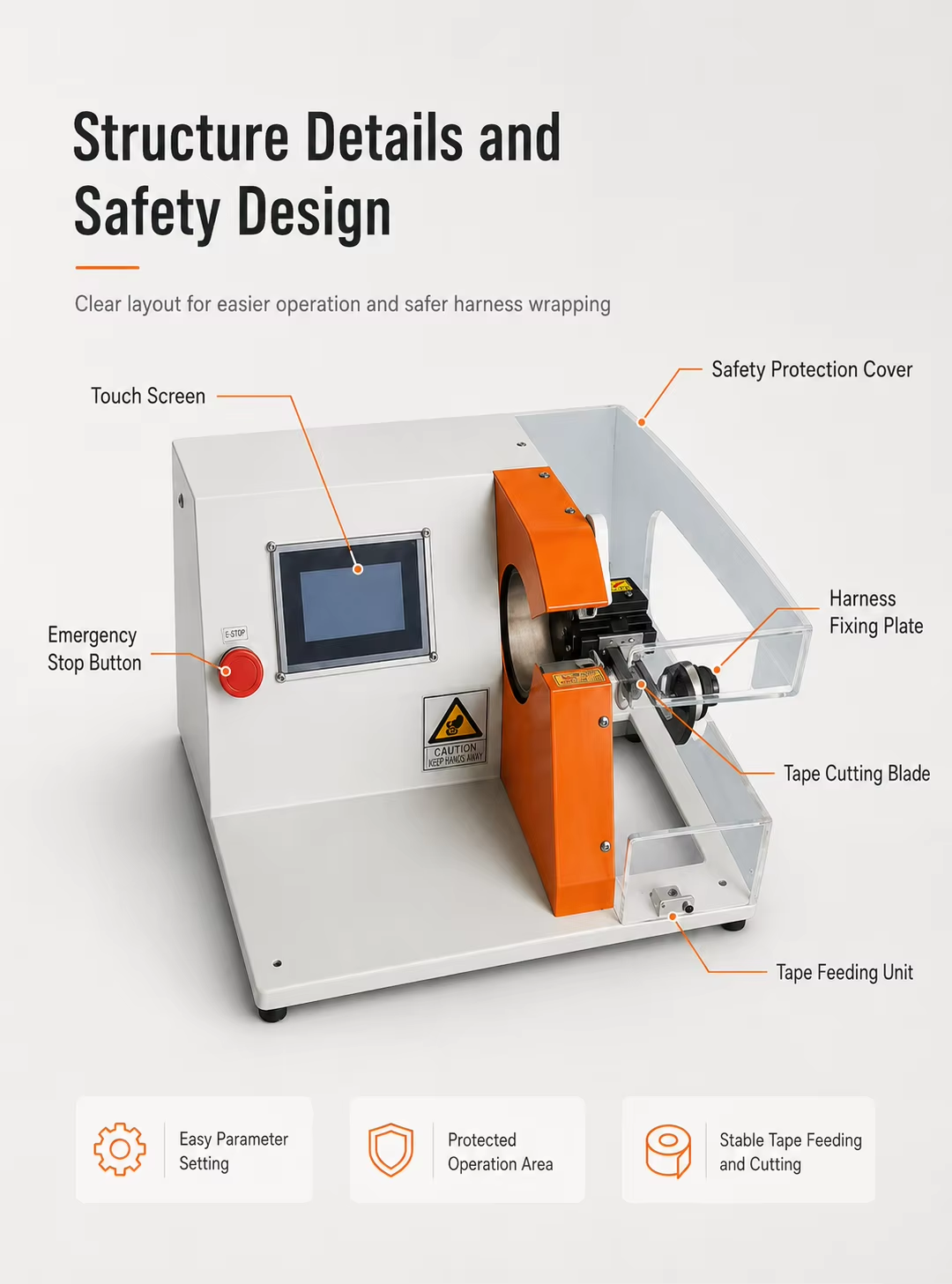

    详情 (4).png

    Compact & Flexible Processing:

    Hands-Free Operation: Features an ergonomic foot switch control system. Operators can use both hands to guide the wire harness, ensuring tight and stable wrapping for complex cable branches.

    详情 (5).png

    Space-Saving Design: Weighing only 25kg with a compact 390x350x350mm footprint. It fits perfectly on any standard workbench, making it an ideal upgrade for small to medium harness assembly lines.

    详情 (1).png
    详情 (6).png

    Support:

    1-Year Warranty | Easy Setup | Contact us with your tape and wire size for a FREE compatibility check!
