1-8mm Semi-automatic Wire Cutting and Tape Winding Machine

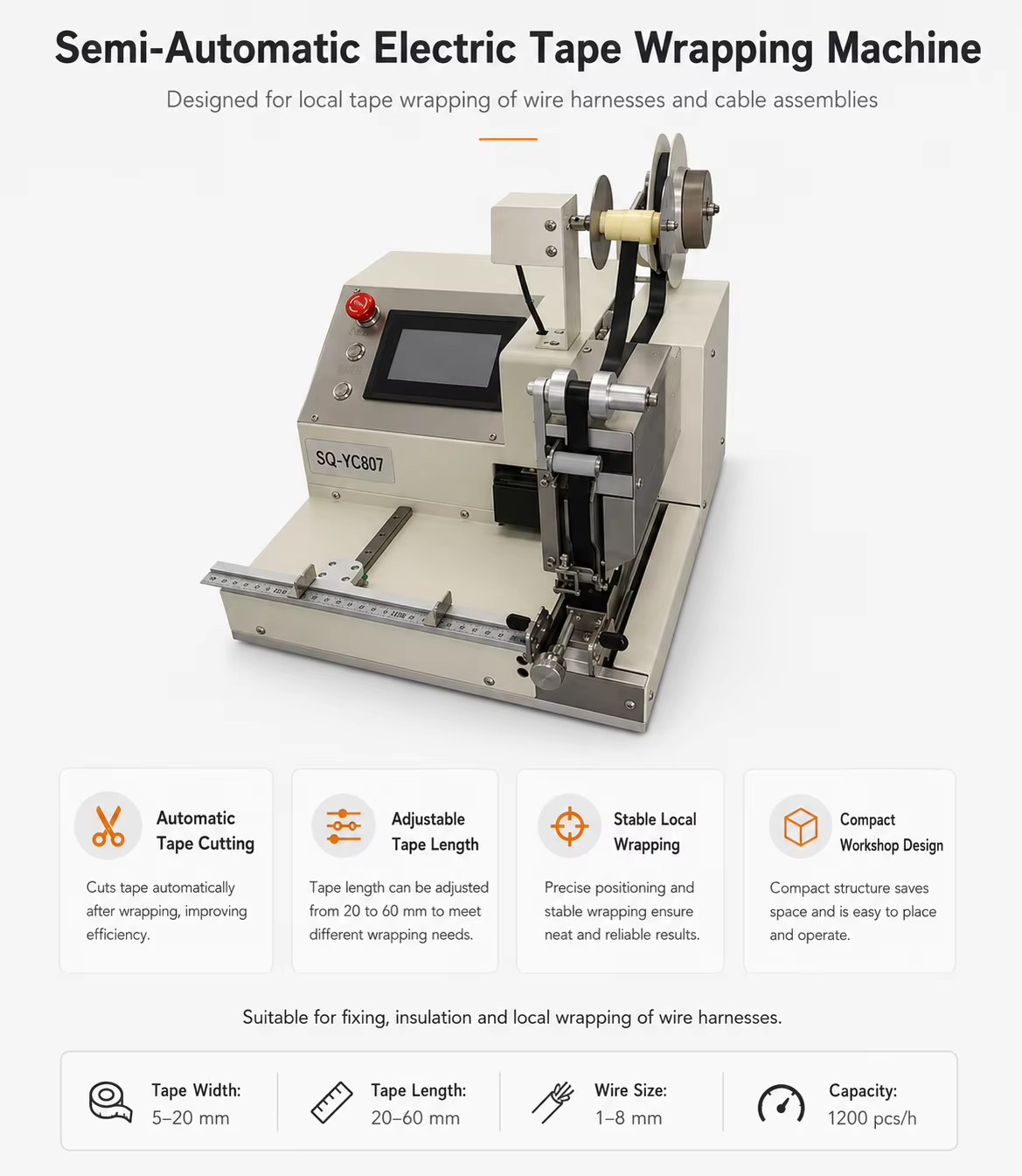

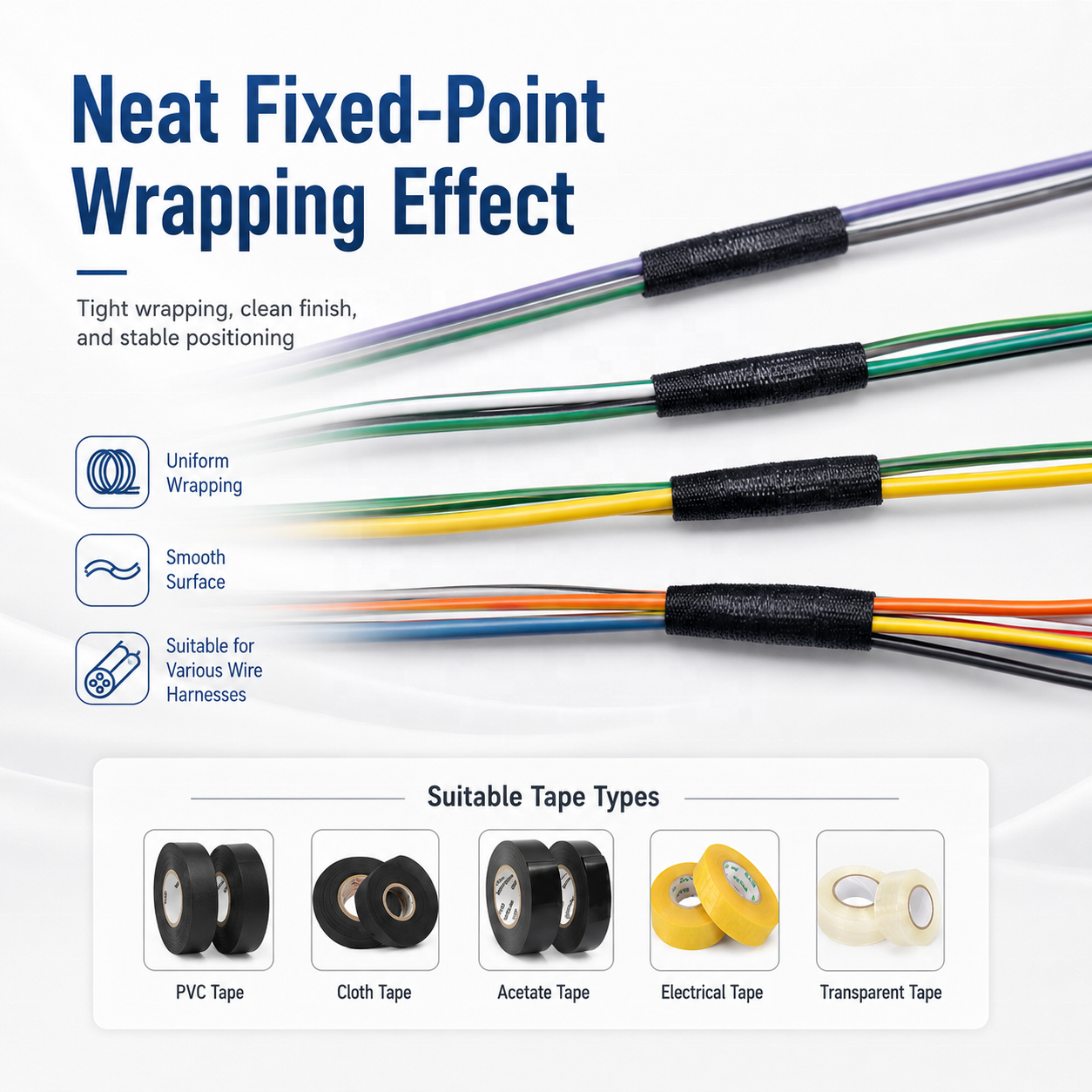

Specialized Spot Taping: Engineered specifically for the local wrapping, fixing, and insulation of wire harness branches. Replaces inconsistent manual taping with a stable and uniform machine process.
Automatic Tape Cutter: Features an integrated smart cutting system. After completing the localized wrap, the machine automatically slices the tape (20-60mm adjustable length), dramatically boosting workstation efficiency to 1200 pcs/h.

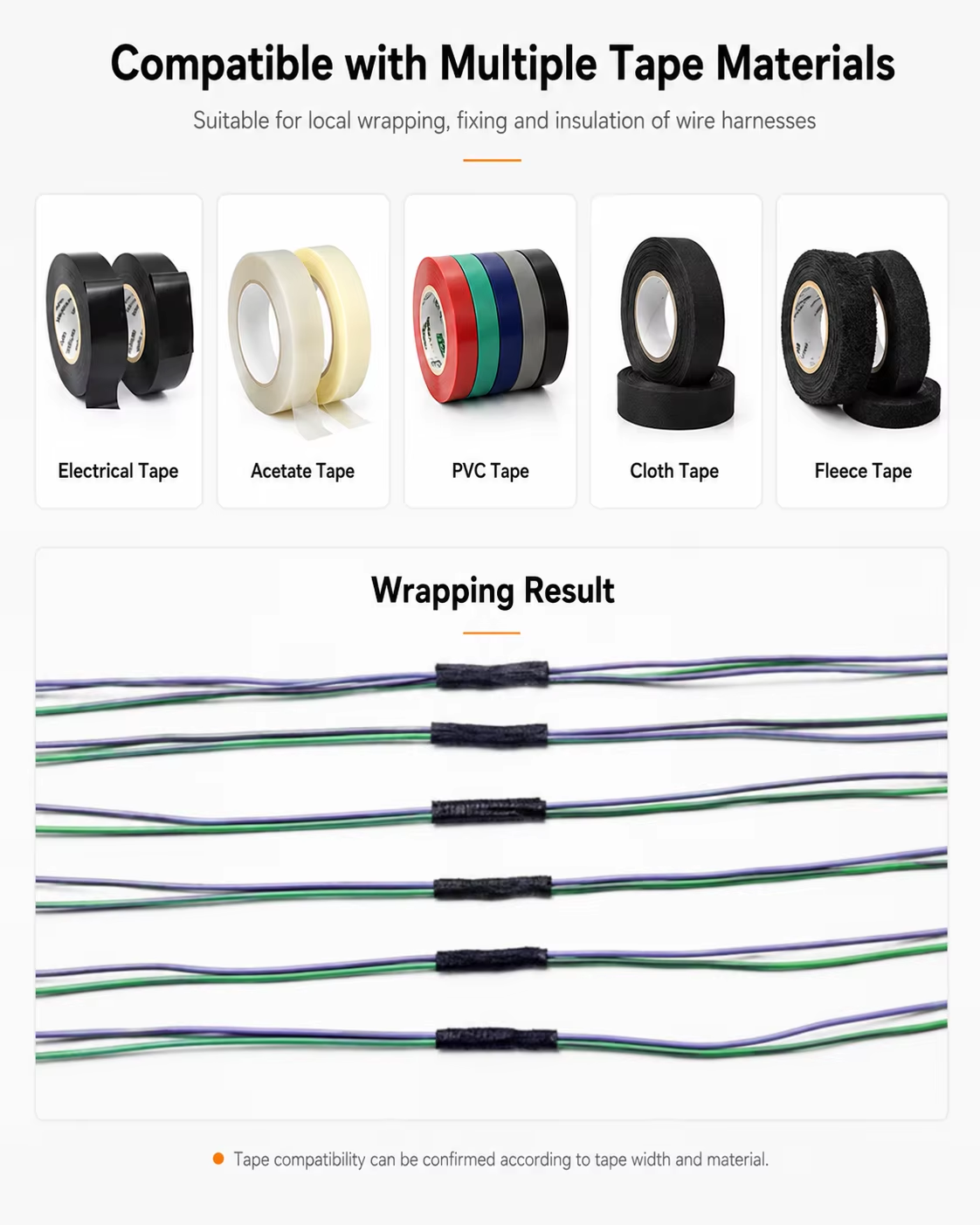

Release Paper Compatible: Uniquely designed to smoothly process adhesive tapes that come with release paper backing, in addition to standard PVC, cloth, and fleece tapes (5-20mm width).

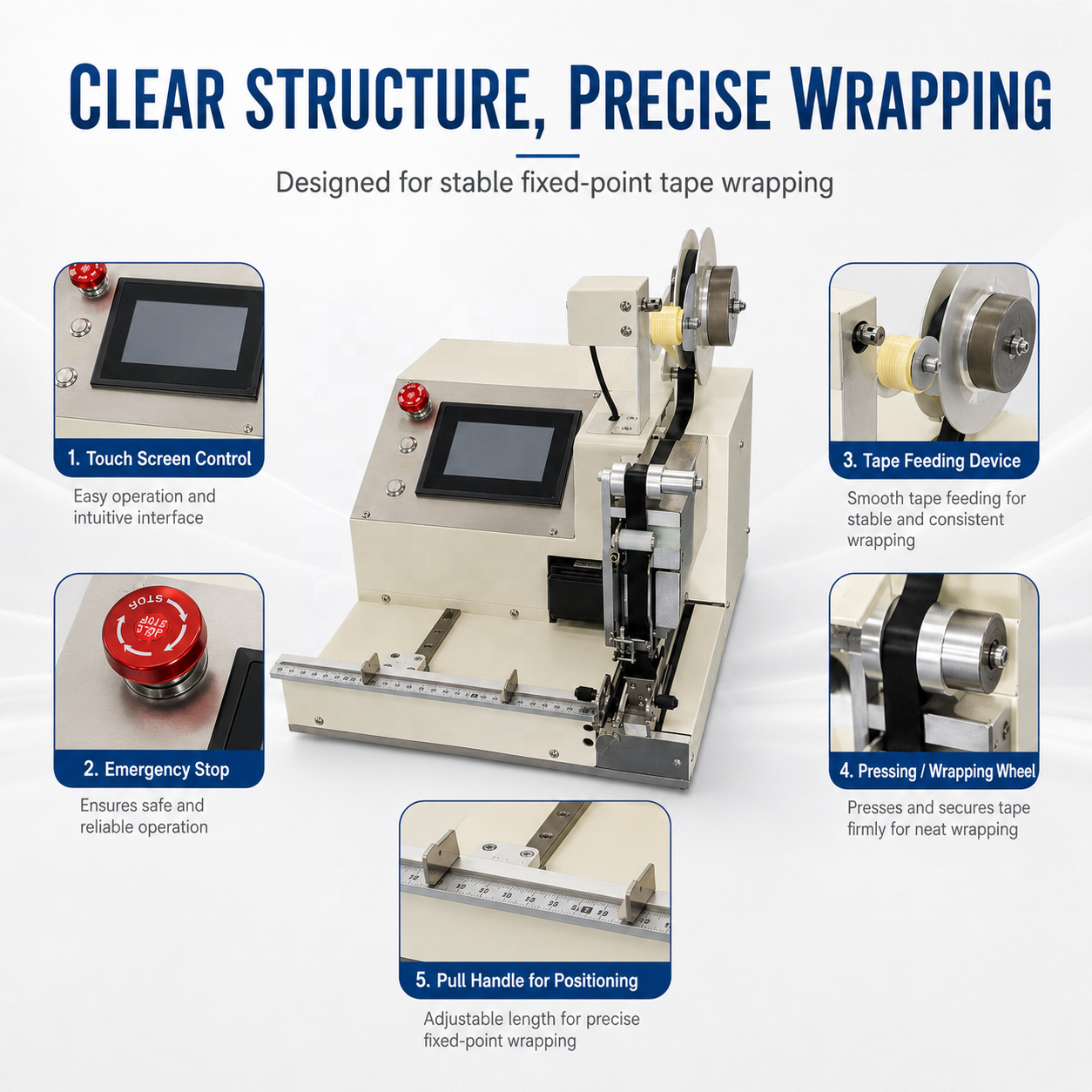

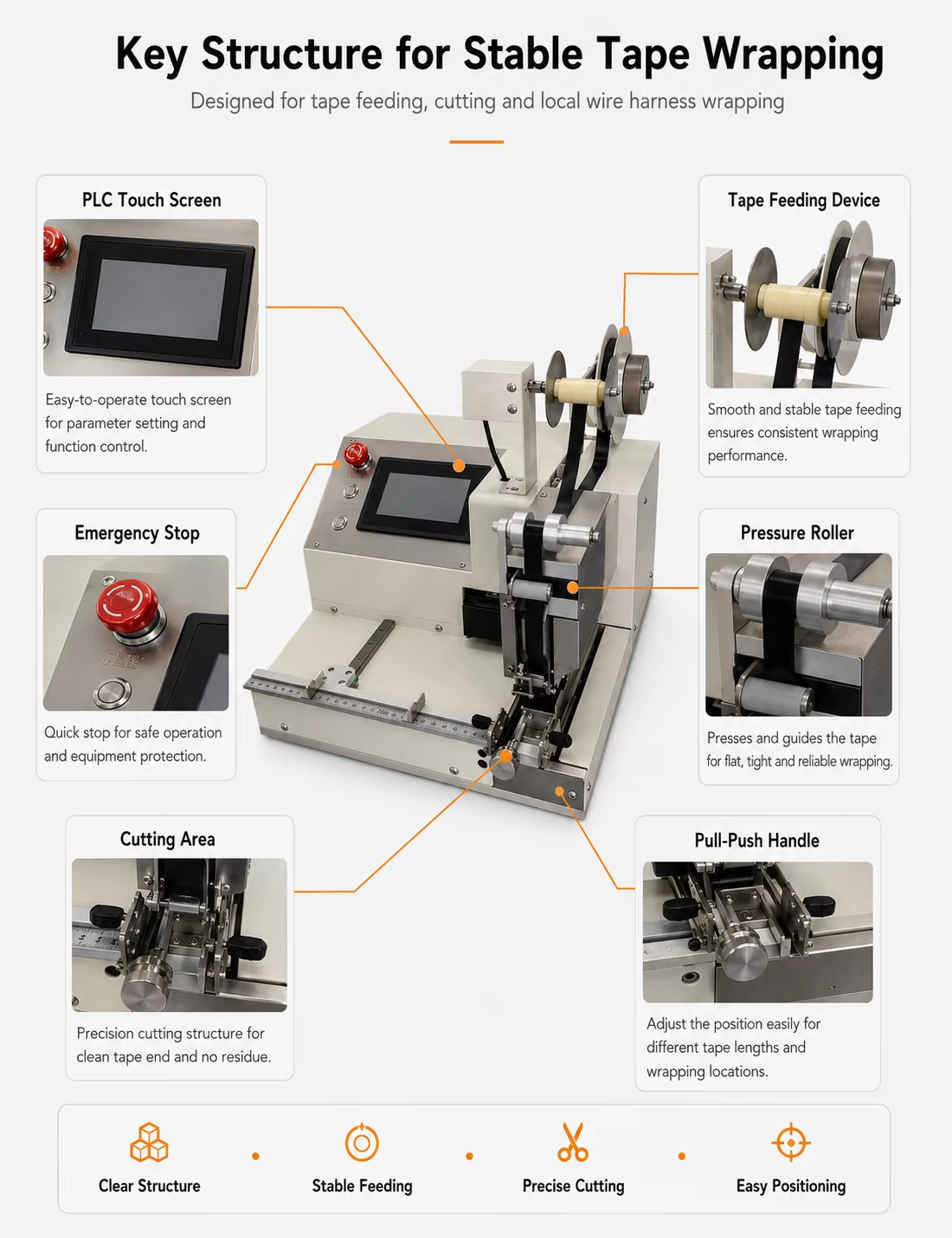

Precise Digital Control: Equipped with an intuitive touch screen interface. Operators can digitally adjust the tape length and wrapping parameters to ensure a strict ±0.5mm tape positioning accuracy for every harness.
Compact & User-Friendly: Weighing only 24kg, this space-saving desktop unit fits perfectly on any assembly line. The built-in slide rail and positioning ruler make wire placement fast and foolproof for operators.

Availability:

Quantity:



Inquire Add to Basket

Model:
SQ-YC807
Brand:
3Q

Product Description

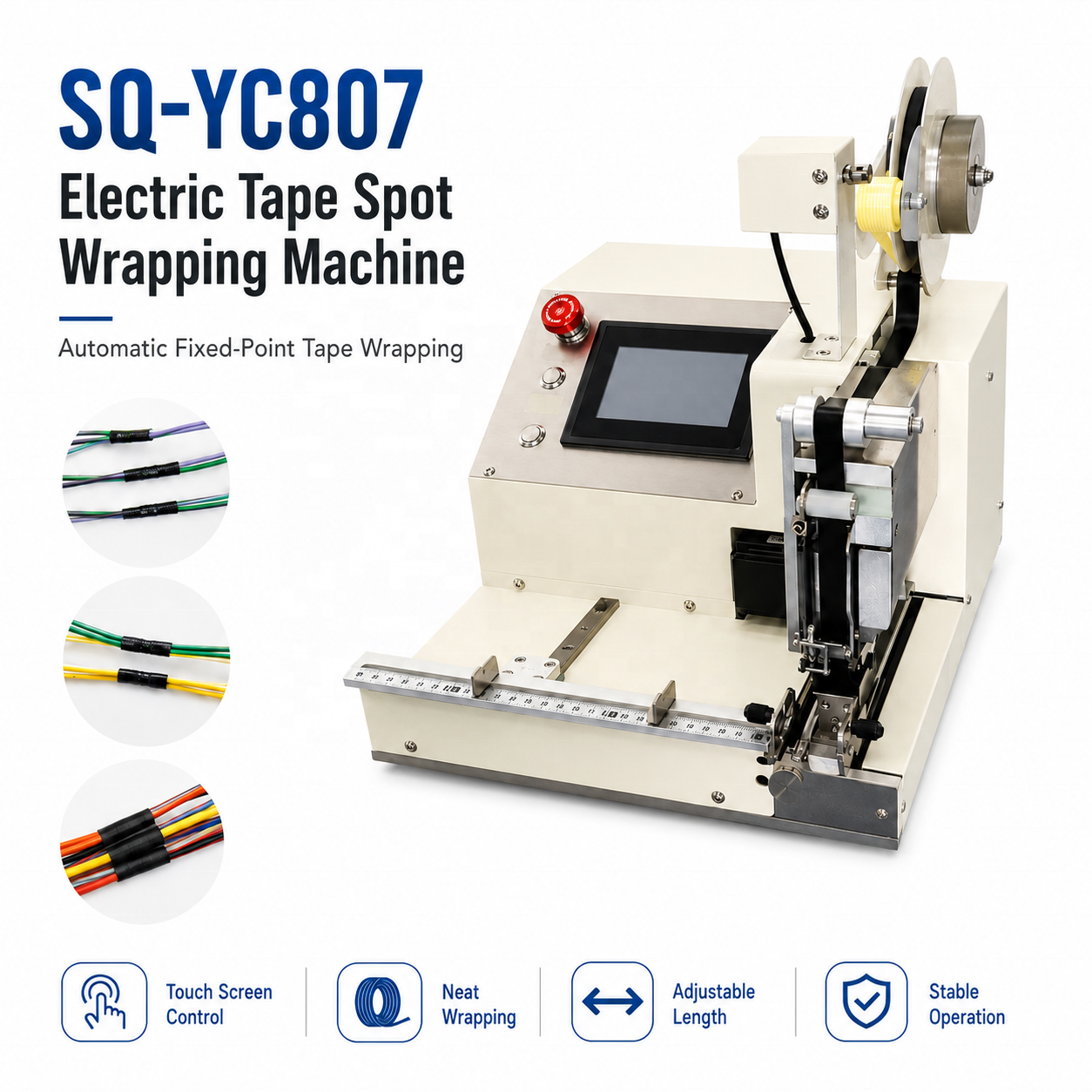

Model: SQ-YC807 Semi-Automatic Local Spot Taping Machine

Precision Spot Wrapping Solution:

Automatic Tape Cutting: Designed specifically for local taping and fixing of wire harness branches. Once the spot wrapping is complete, the machine automatically cuts the tape, significantly reducing manual fatigue.

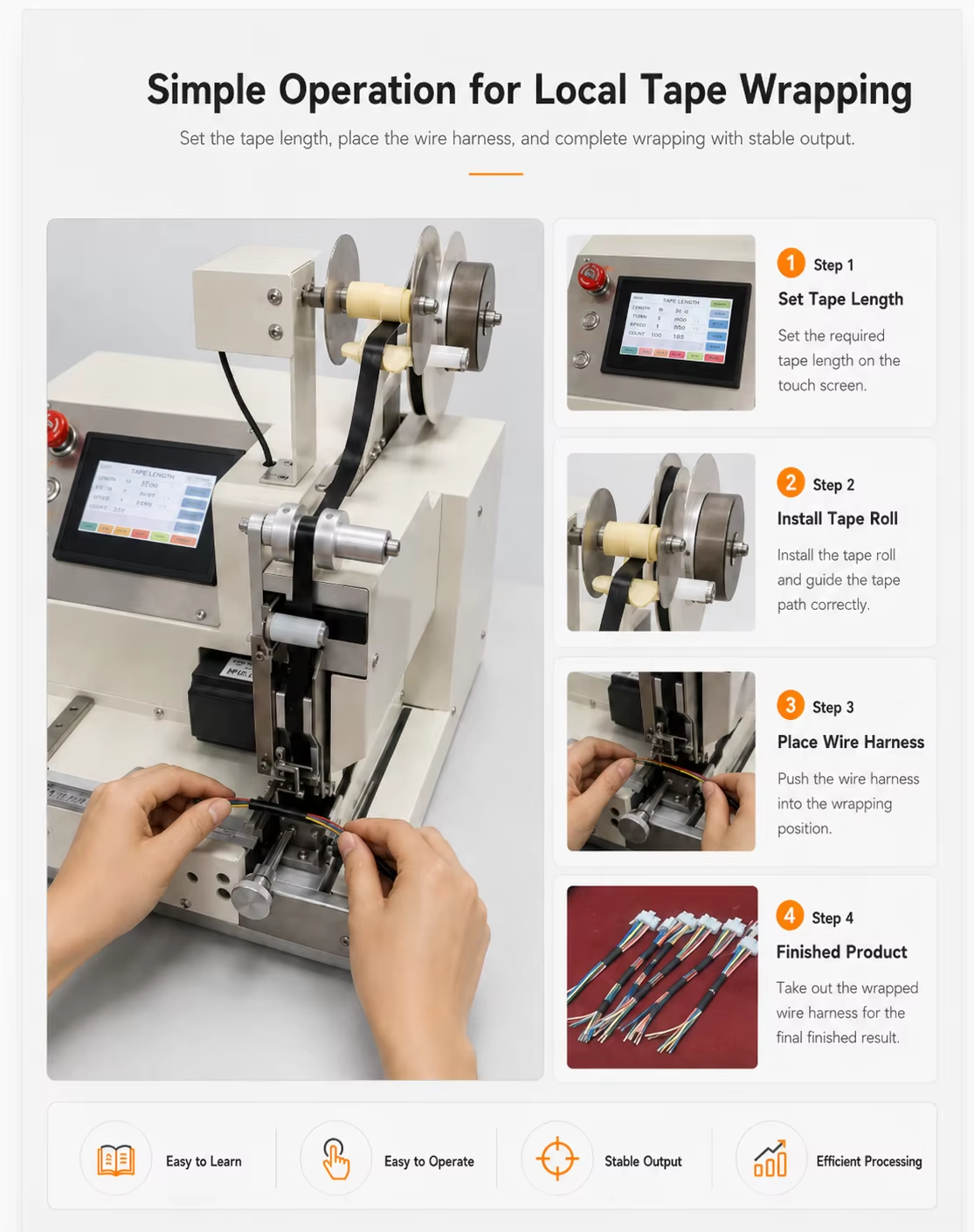

Adjustable Tape Length: The cutting length can be precisely set between 20mm to 60mm via the digital interface, ensuring uniform tape usage and preventing waste on wires from 1-8mm OD.

Release Paper Support: Unique feeding mechanism that smoothly handles tapes with release backing paper (like certain acetate or specialized electrical tapes).

Support:

1-Year Warranty | Compact Desktop Design | Inquiry now for a FREE tape compatibility check!
