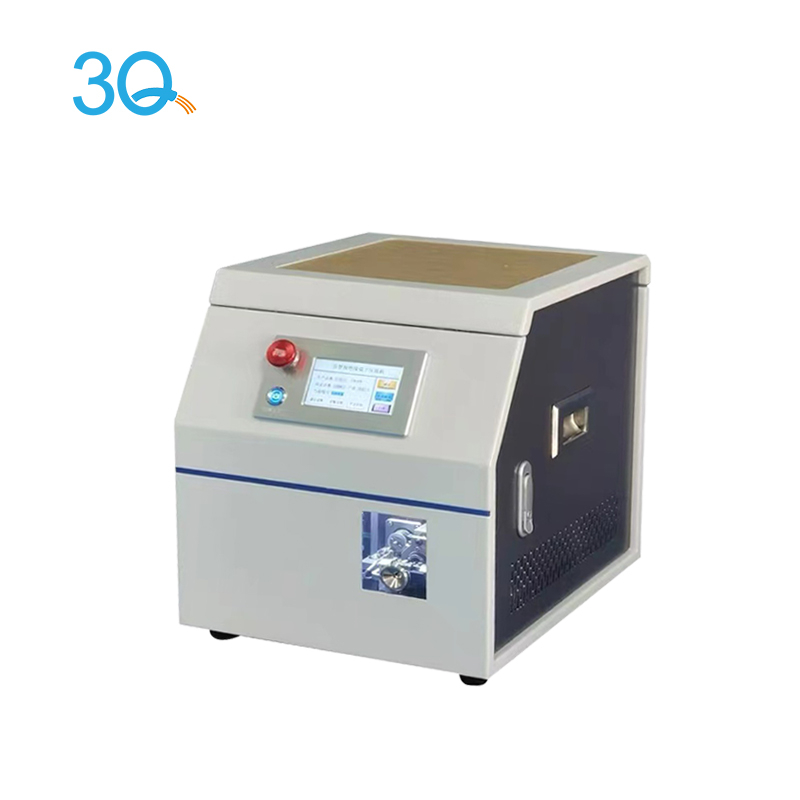

3Q machine
Overview introduction:

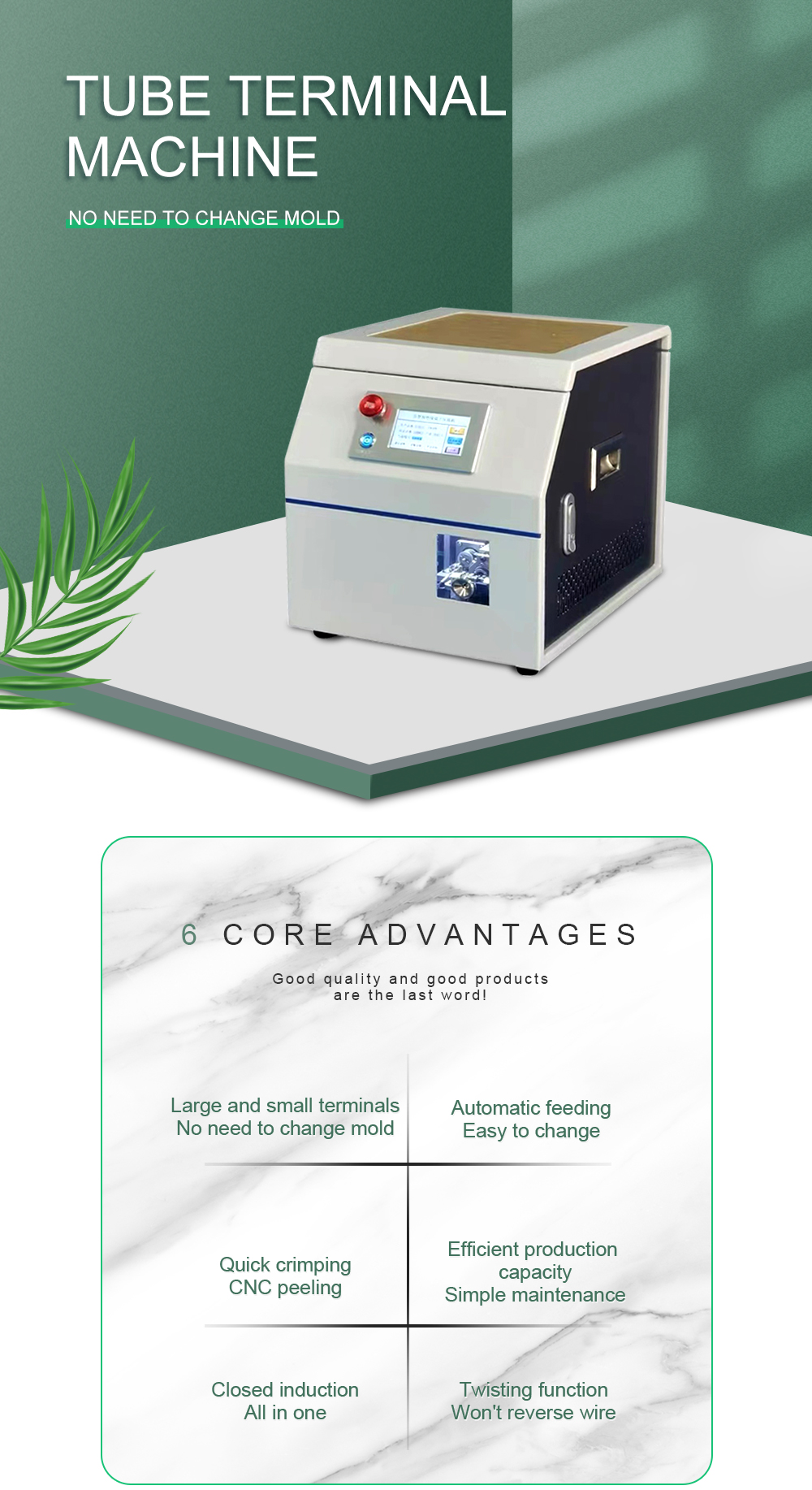

Product name: Tube terminal crimping machine
Features:
1. No need to change mold
2. 6 core advantages
3. Good quality and good products are the last word !
4. Large and small terminals. No need to change mold
5. Automatic feeding. Easy to change
6. Quick crimping, CNC peeling
7. Efficient production capacity. Simple maintenance
8. Closed induction. All in one
9. Twisting function. Won't reverse wire

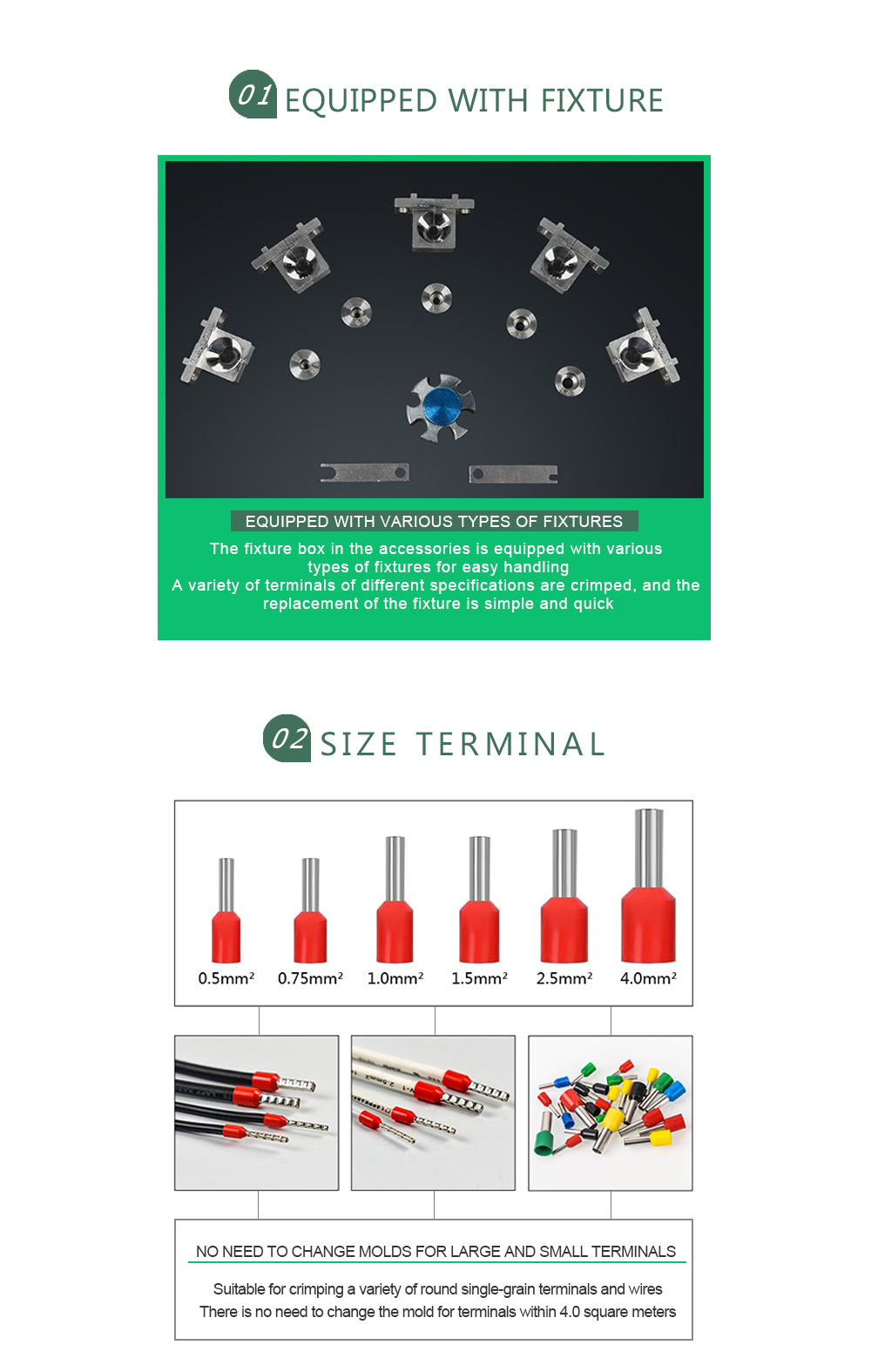

10. Equipped with fixture
11. Equipped with various types of fixtures
12. The fixture box in the accessories is equipped with various types of fixtures for easy handling
13. A variety of terminals of different specifications are crimped, and the replacement of the fixture is simple and quick
14. No need to change molds for large and small terminals
15. Suitable for crimping a variety of round single-grain terminals and wires
16. There is no need to change the mold for terminals within 4.0 square meters

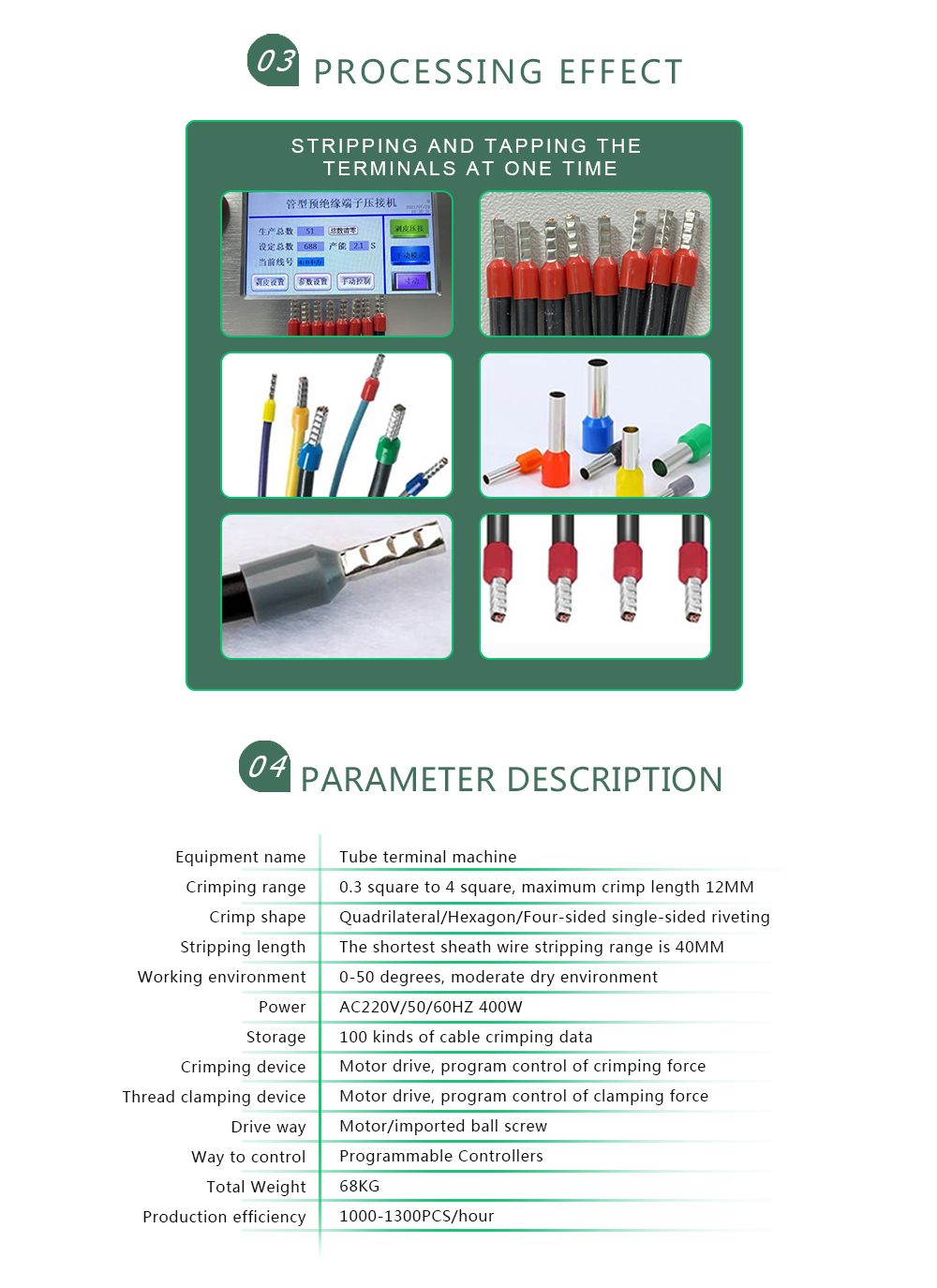

Data Sheet:
Equipment name | Tube terminal machine |
Crimping range | 0.3 square to 4 square, maximum crimp length 12MM |
Crimp shape | Quadrilateral/Hexagon/Four-sided single-sided riveting |
Stripping length | The shortest sheath wire stripping range is 40MM |
Working environment | 0-50 degrees, moderate dry environment |
Power | AC220V/50/60HZ 400W |
Storage | 100 kinds of cable crimping data |
Crimping device | Motor drive, program control of crimping force |
Thread clamping device | Motor drive, program control of clamping force |
Drive way | Motor/imported ball screw |
Way to control | Programmable Controllers |
Total Weight | 68KG |
Production efficiency | 1000-1300PCS/hour |
