MX4B Four-side Changing-Free Terminal Crimping Die
Home » Products » Machine Mold & Blade & Accessories » MX4B Four-side Changing-Free Terminal Crimping Die

MX4B Four-side Changing-Free Terminal Crimping Die

Availability:
Quantity:
  • 3Q machine

详情页新_01_01详情页新_01_02详情页新_02_01详情页新_02_02详情页新_03_01详情页新_03_02

Product overview

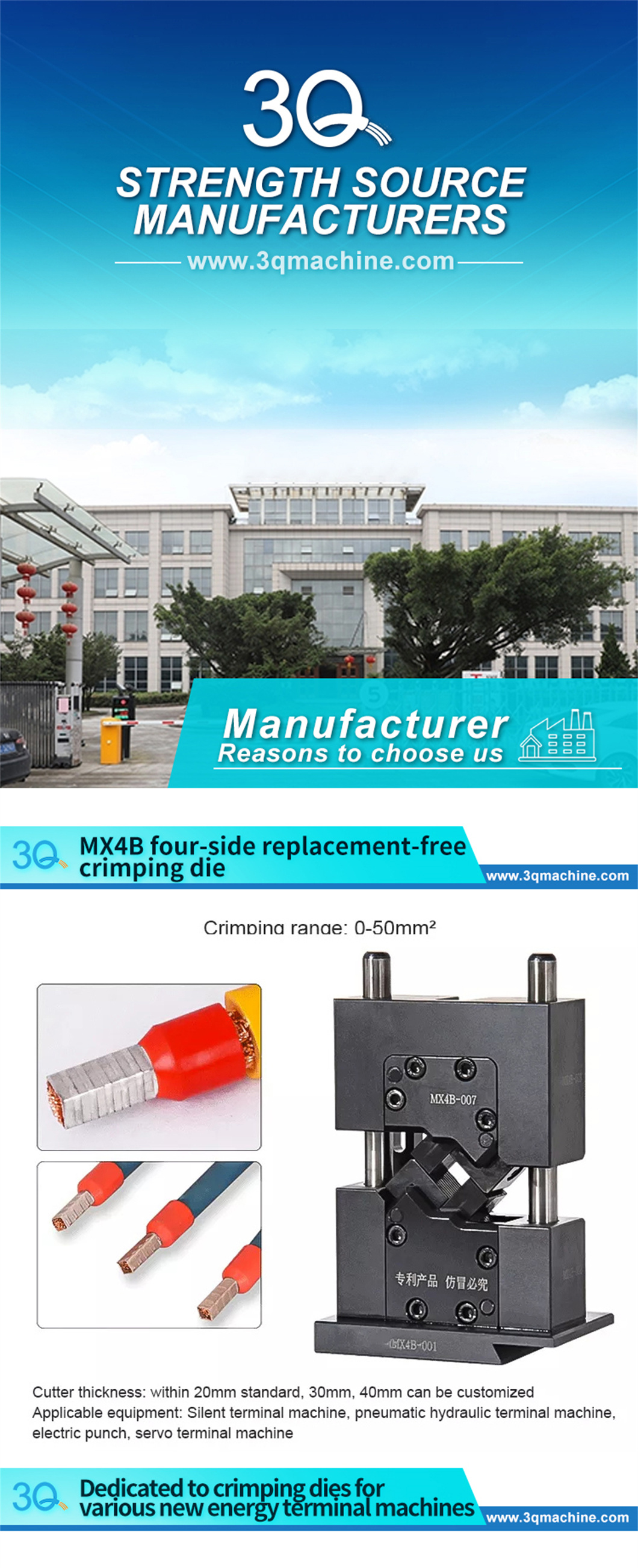

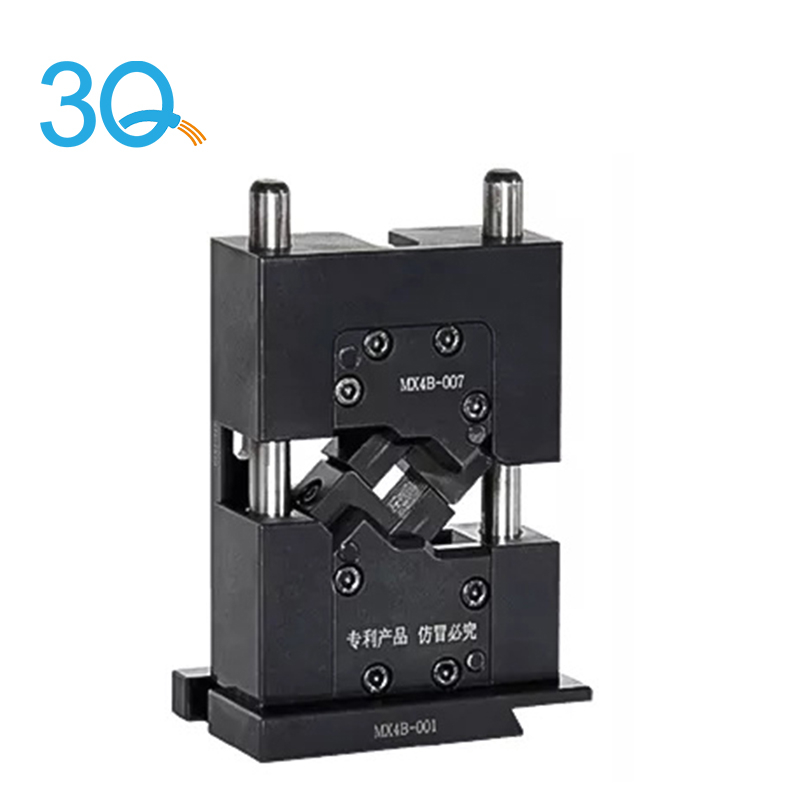

Product name: MX4B four-side replacement-free crimping die

Crimping range:0-50mm2

Cutter thickness: within 20mm standard, 30mm, 40mm can be customized

Applicable equipment: Silent terminal machine, pneumatic hydraulic terminal machine,electric punch, servo terminal machine

Dedicated to crimping dies for various new energy terminal machines

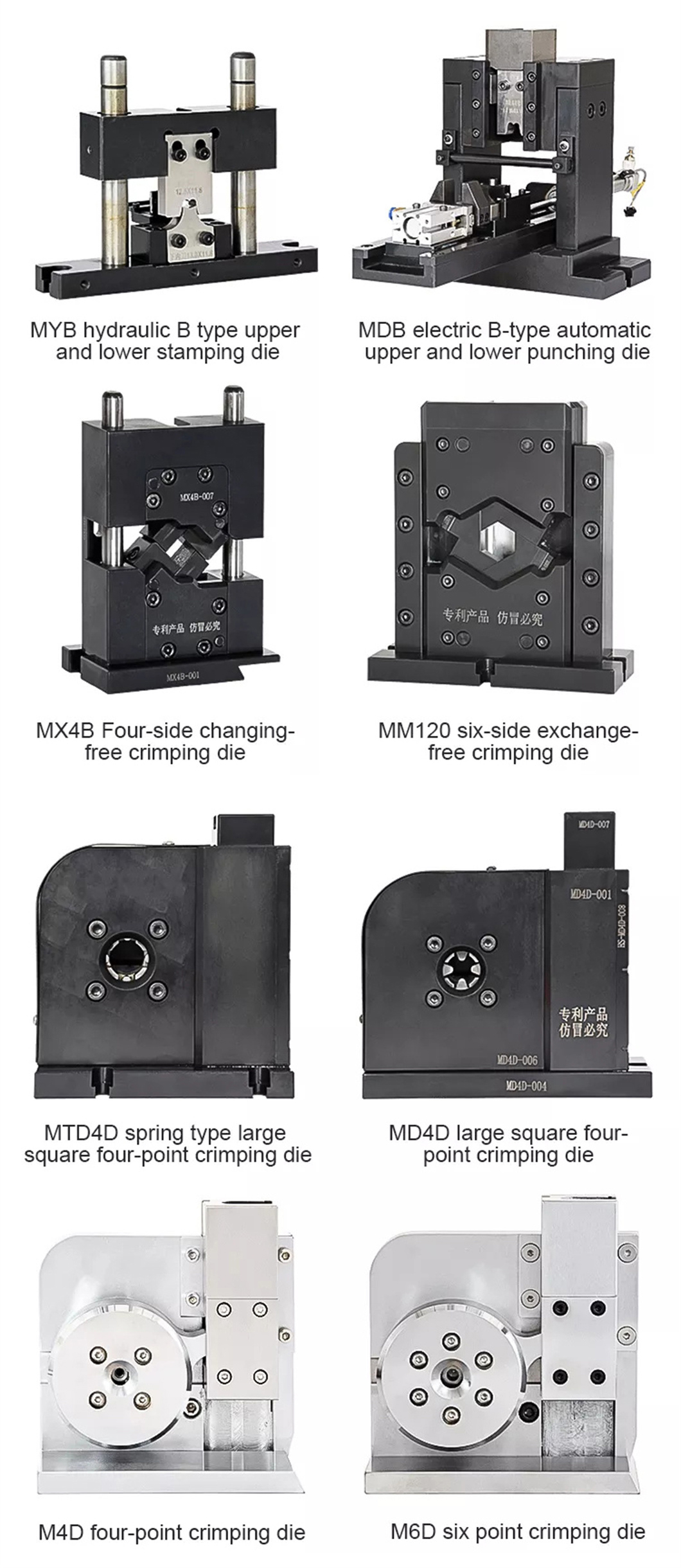

More available molds:

MYB hydraulic B type upper and lower stamping die

MDB electric B-type automatic upper and lower punching die

MX4B Four-side changing-free crimping die

MM120 six-side exchange-free crimping die

MTD4D spring type large square four-point crimping die

MD4D large square four-point crimping die

M4D four-point crimping die

M6D six point crimping die


Feature:

1. There is no need to change molds for large and small terminals, saving time for repeated mold changes

2. Simple operation, convenient use and high cost performance

3. The appearance is small and beautiful, convenient and fast, and high efficiency

4. Crimp accuracy +0.02mm

5. The surface QBQ is blackened,and the corrosion resistance is strong.


Wire harness industry:

1. LED

2. GRID

3. NEW ENERGY

4. TELECOMMUNICATION

5. AIR CONDITIONER

6. MEDICAL INSTRUMENTS

7. SMART ELECTRONIC DEVICE

8. NEW ENERGY VEHICLES

9. MEDICAL INSTRUMENTS


Data sheet:

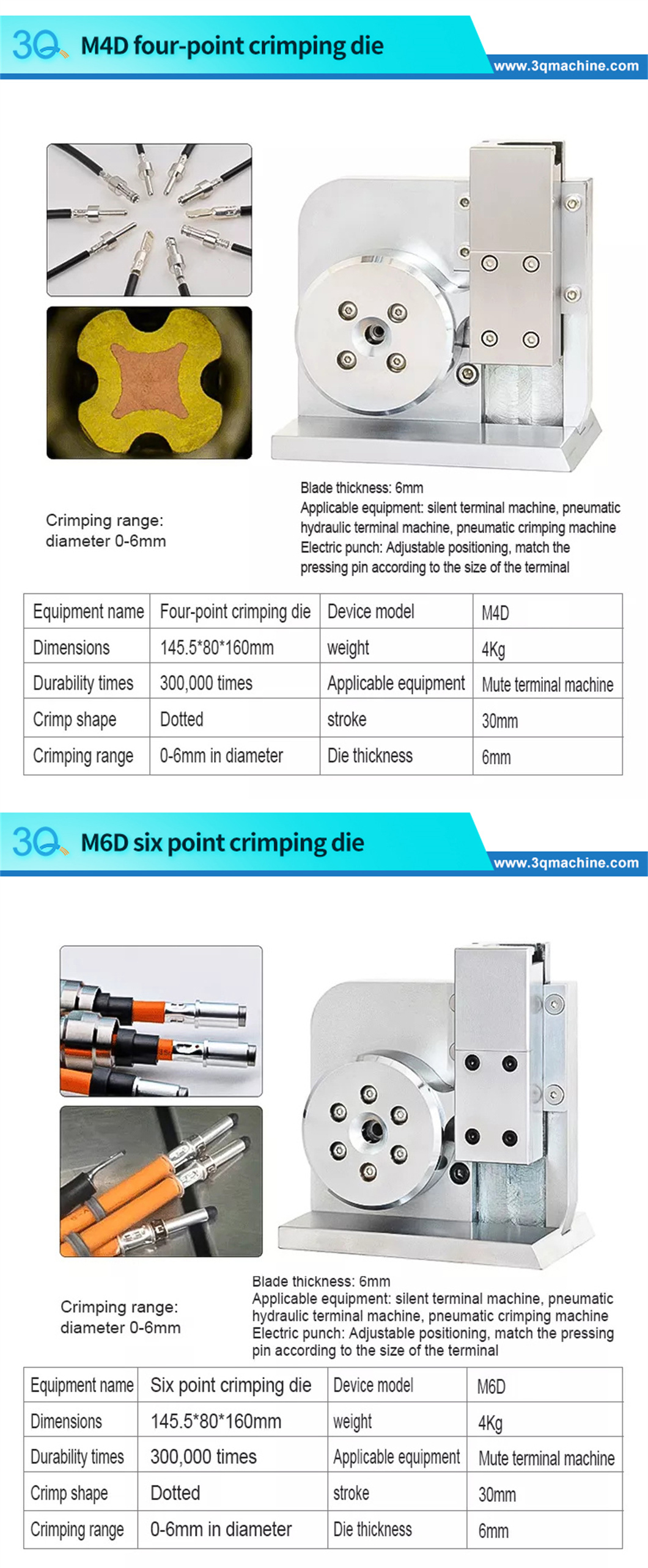

Equipment nameFour-point crimping die/Six point crimping dieDevice modelM4D/M6D
Dimensions1455*80*160mmweight4Kg
Durability times300,000 timesApplicable equipmentMute terminal machine
Crimp shapeDottedstroke30mm
Crimping range0-6mm in diameterDie thickness6mm

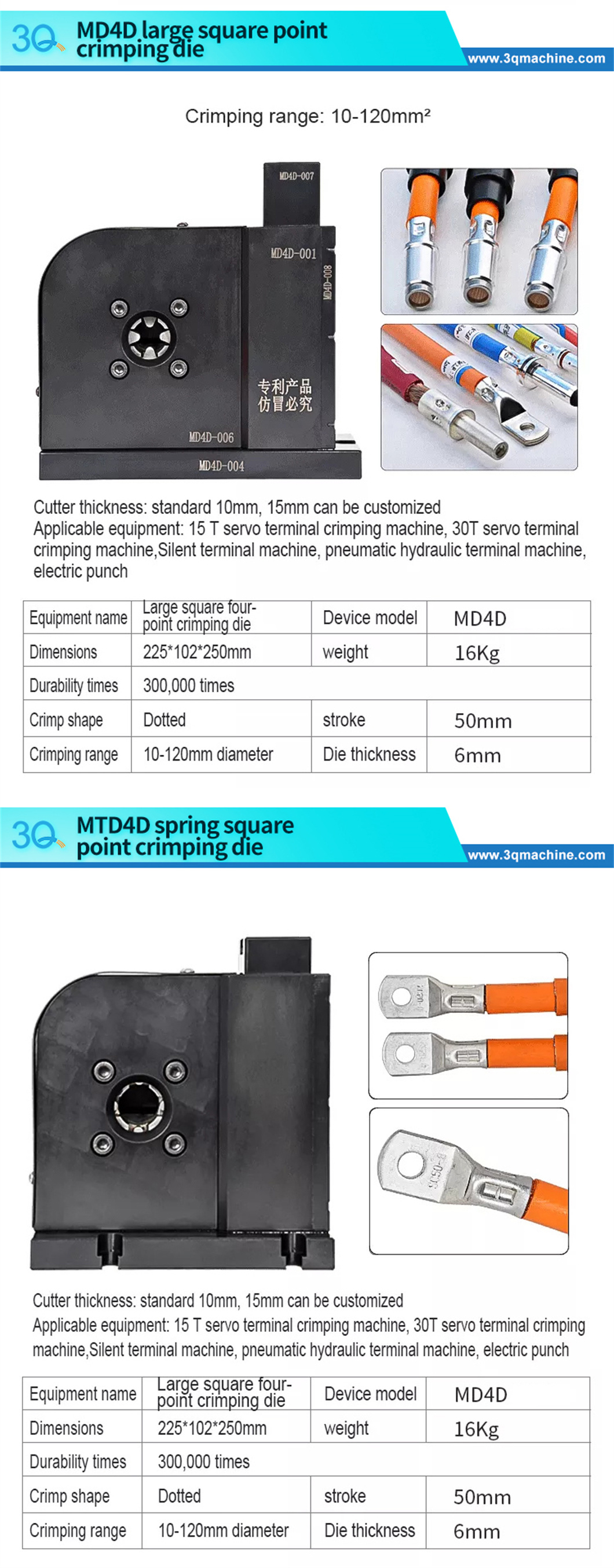

Equipment namelarge square four-point crimping dieDevice modelMD4D
Dimensions225*102*250mmweight16KG
Durability times300000timesCrimping range10-120mm2
Crimp shapedottedstroke50MM
Crimping range10-120mm diameterDie thickness6MM

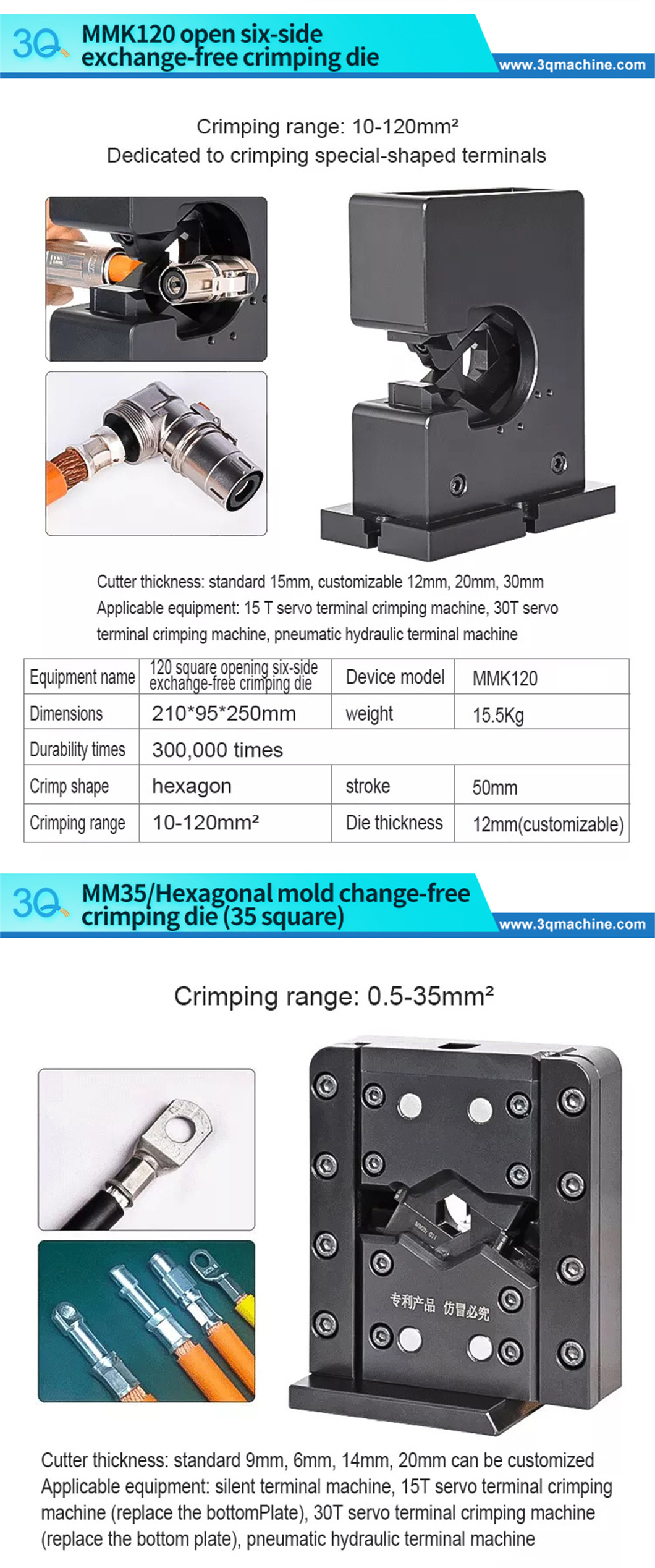

Equipment name120 square opening six-side exchange-free crimping dieDevice modelMMK120
Dimensions210*95*250mmweight15.5KG
Durability times300000timesCrimping range10-120mm2
Crimp shapehexagonstroke50MM
Crimping range10-120mm2Die thickness12MM(customizable)

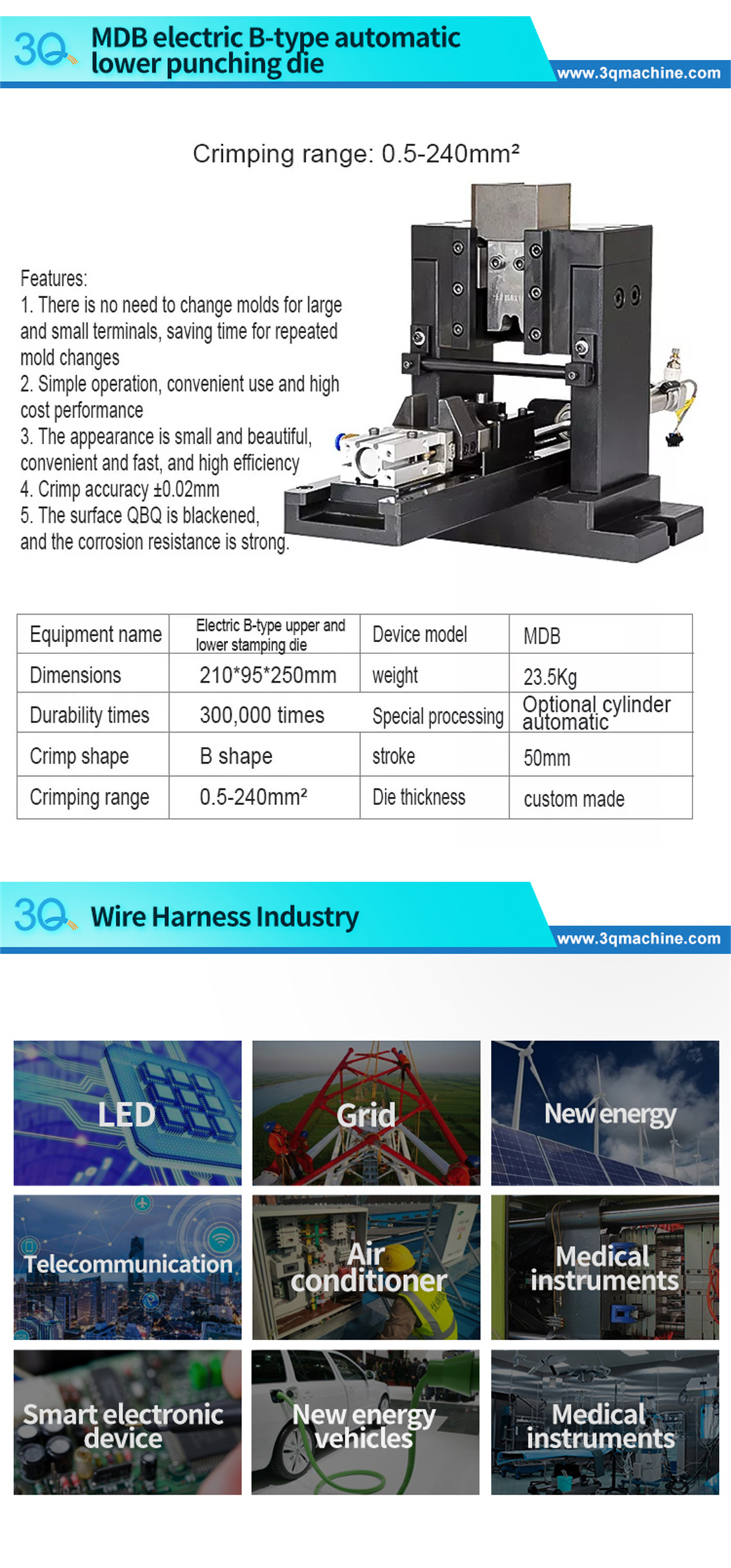

Equipment nameMDB electric B-type automatic lower punching dieDevice modelMDB
Dimensions210*95*250mmweight23.5KG
Durability times300000 timesSpecial processingoptional cylinder automatic
Crimp shapeB shapestroke50mm
Crimping range0.5-240mm2Die thicknesscustom made
