Product overview

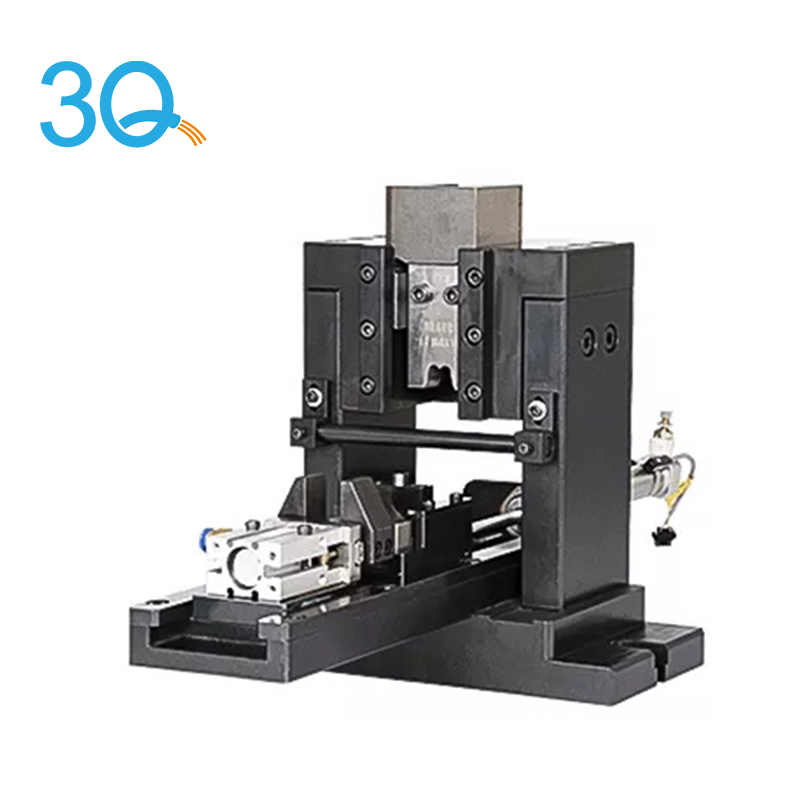

Product name: MDB Electric B-type Automatic Upper And Lower Punching Die
Crimping range:0-50mm2
Cutter thickness: within 20mm standard, 30mm, 40mm can be customized
Applicable equipment: Silent terminal machine, pneumatic hydraulic terminal machine,electric punch, servo terminal machine
Dedicated to crimping dies for various new energy terminal machines
More available molds:
MYB hydraulic B type upper and lower stamping die
MDB electric B-type automatic upper and lower punching die
MX4B Four-side changing-free crimping die
MM120 six-side exchange-free crimping die
MTD4D spring type large square four-point crimping die
MD4D large square four-point crimping die
M4D four-point crimping die
M6D six point crimping die
Feature:
1. There is no need to change molds for large and small terminals, saving time for repeated mold changes
2. Simple operation, convenient use and high cost performance
3. The appearance is small and beautiful, convenient and fast, and high efficiency
4. Crimp accuracy +0.02mm
5. The surface QBQ is blackened,and the corrosion resistance is strong.
Wire harness industry:
1. LED
2. GRID
3. NEW ENERGY
4. TELECOMMUNICATION
5. AIR CONDITIONER
6. MEDICAL INSTRUMENTS
7. SMART ELECTRONIC DEVICE
8. NEW ENERGY VEHICLES
9. MEDICAL INSTRUMENTS
Data sheet:
| Equipment name | Four-point crimping die/Six point crimping die | Device model | M4D/M6D |
| Dimensions | 1455*80*160mm | weight | 4Kg |
| Durability times | 300,000 times | Applicable equipment | Mute terminal machine |
| Crimp shape | Dotted | stroke | 30mm |
| Crimping range | 0-6mm in diameter | Die thickness | 6mm |
| Equipment name | large square four-point crimping die | Device model | MD4D |
| Dimensions | 225*102*250mm | weight | 16KG |
| Durability times | 300000times | Crimping range | 10-120mm2 |
| Crimp shape | dotted | stroke | 50MM |
| Crimping range | 10-120mm diameter | Die thickness | 6MM |
| Equipment name | 120 square opening six-side exchange-free crimping die | Device model | MMK120 |
| Dimensions | 210*95*250mm | weight | 15.5KG |
| Durability times | 300000times | Crimping range | 10-120mm2 |
| Crimp shape | hexagon | stroke | 50MM |
| Crimping range | 10-120mm2 | Die thickness | 12MM(customizable) |
| Equipment name | MDB electric B-type automatic lower punching die | Device model | MDB |
| Dimensions | 210*95*250mm | weight | 23.5KG |
| Durability times | 300000 times | Special processing | optional cylinder automatic |
| Crimp shape | B shape | stroke | 50mm |
| Crimping range | 0.5-240mm2 | Die thickness | custom made |
