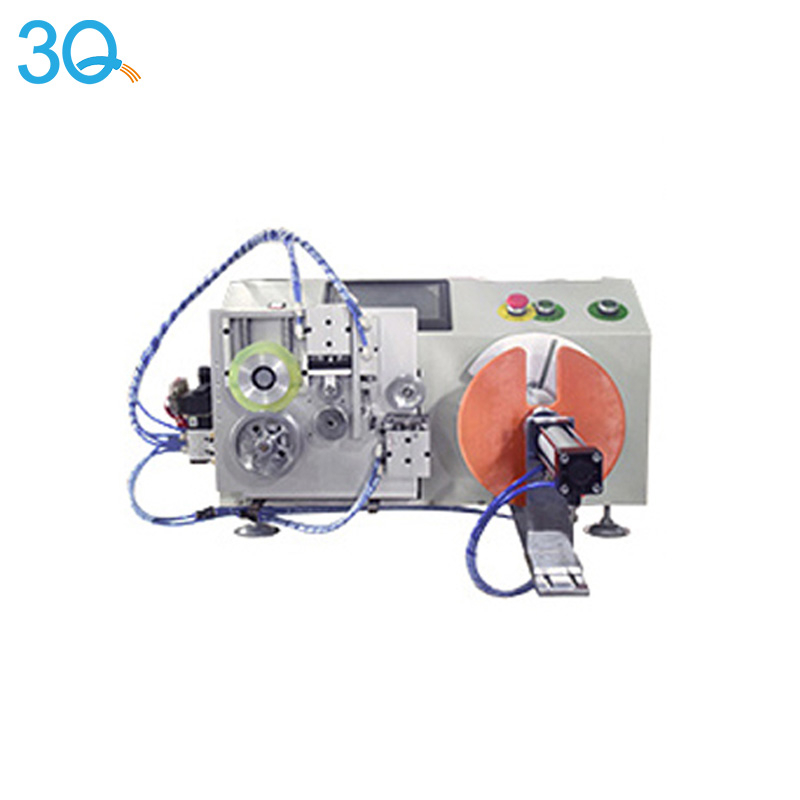

Semi-Auto Desktop Wire Winding And Binding Machine
Home » Products » Winding And Binding Machine » Semi-Auto Desktop Wire Winding And Binding Machine

Semi-Auto Desktop Wire Winding And Binding Machine

Availability:
Quantity:
  • 3Q machine

详情_01详情_02详情_03详情_04

工厂展示_01工厂展示_02工厂展示_03独立站证书

WIRE STRIPPING MACHINE

Overview introduction:

Product name: Automatic meter winding machine



Features:

1. Cut off

2. Meter/tie

3. Winding/rank

4. Adjustable speed

5. Adjustable circle diameter

6. PLC program control: Arbitrarily set the number of windings and the length of the wire.

7. Stepper motor: High-speed rotating speed is electric driven, high efficiency

8. Touch screen panel: Intuitive and convenient to set the number of times, simple and 9

9. convenient operation: Imported steel. Anti-rust material, long life, imported steel material, strong and sturdy.

10. Imported steel: Anti-rust material, long life, imported steel material, strong and sturdy.


Data Sheet

ModelDesktop type meter winding machine
Winding speed1-10 laps per second
Bundle diameter5-30 mm
Outer diameter of circleNon-standard type
(Can be customized)
Rated power<200W
Input voltageAC220V 50/60HZ
(Special can be customized)
Winding error土25 mm
Equipment efficiencyThree strips per minute for 10 meters
(without cable tie)
WeightAbout 40KG
ModelDesktop type meter winding and binding machine
Winding speed1-10 laps per second
Bundle diameter5-30 mm
Outer diameter of circle Non-standard type
(Can be customized)
Rated power<200W
Input voltageAC220V 50/60HZ
(Special can be customized)
Winding error土25 mm
Equipment efficiencyThree strips per minute for 10 meters
(without cable tie)
WeightAbout 45KG
Equipment tieRubberized iron core
ModelFloor type meter winding machine
Winding speed 1-10 laps per second .
Inner diameter of winding50-280 mm
Outer diameter of circle350 mm
Rated power<2500W
Input voltageAC220V 50/60HZ
(Special can be customized)
Winding error土25MM
Winding load<2.5KG
WeightAbout 230KG
Equipment efficiencyThree strips per minute for 10 meters
(without cable tie)
ModelFloor-standing meter
winding and binding machine
Winding speed1-10 laps per second
Inner diameter of winding50-280 mm
Outer diameter of circle350 mm
Rated power<2500W !
Input voltageAC220V 50/60HZ
(Special can be customized)
Winding error土25MM
Winding load<2.5KG
WeightAbout 235KG
Equipment efficiencyThree strips per minute for 10 meters
(without cable tie)
Equipment tieRubberized iron core
