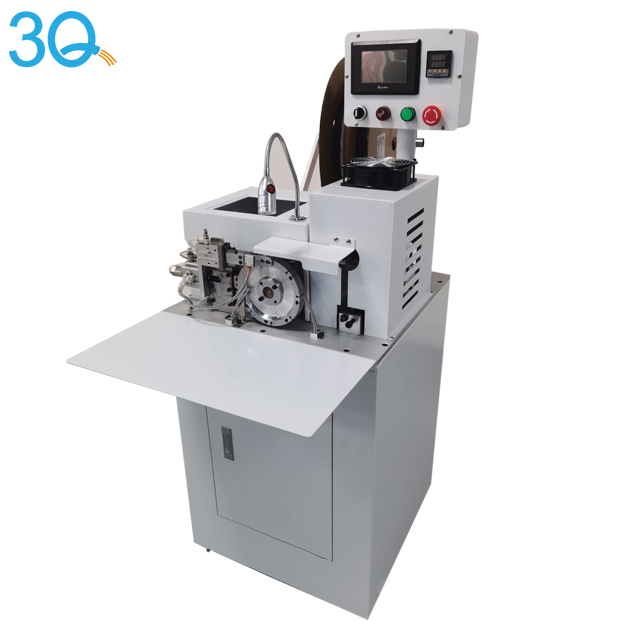

Heat Shrinkable Tubing Loading Machine

Availability:
Quantity:
  • 3Q machine

Tubing Loading MachineTubing Loading Machine detailsTubing Loading Machine detailsTubing Loading MachineTubing Loading Machine work processTubing Loading MachineTubing Loading Machine

工厂展示_01工厂展示_02工厂展示_03独立站证书

Overview introduction

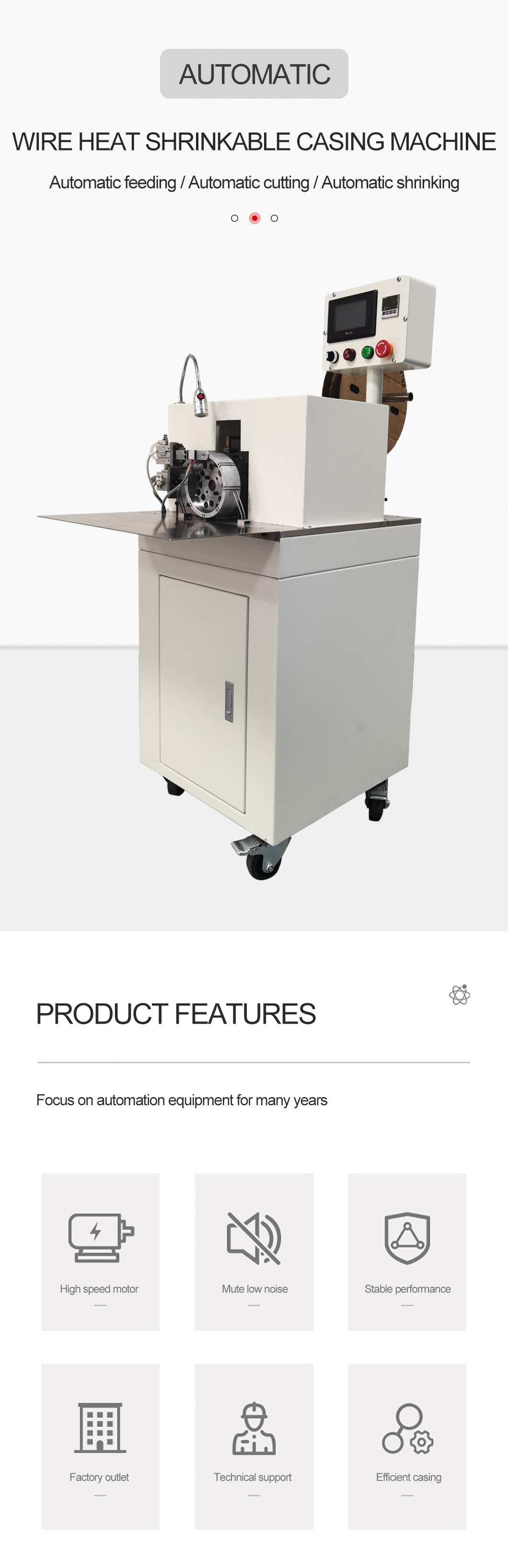

Product name: Automatic wire heat shrinkable casing machine



Features:

1. Automatic feeding

2. Automatic cutting

3. Automatic shrinking

4. Focus on automation equipment for many years

5. High speed motor

6. Mute low noise

7. Stable performance

8. Factory outlet

9. Technical support

10. Efficient casing

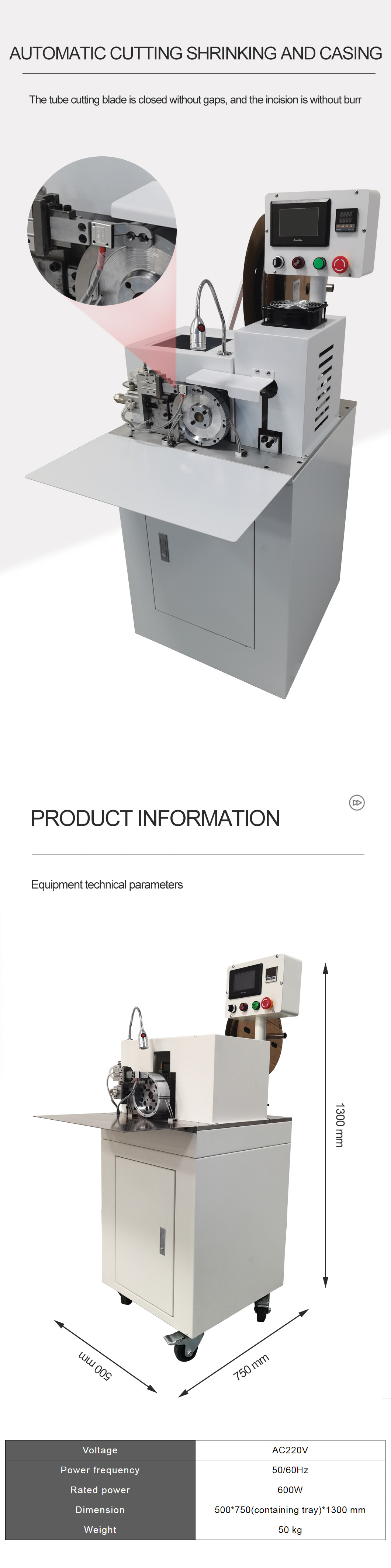

11. Automatic cutting shrinking ans casing

12. The tube cutting blade is closed without gaps, and the incision is without burr

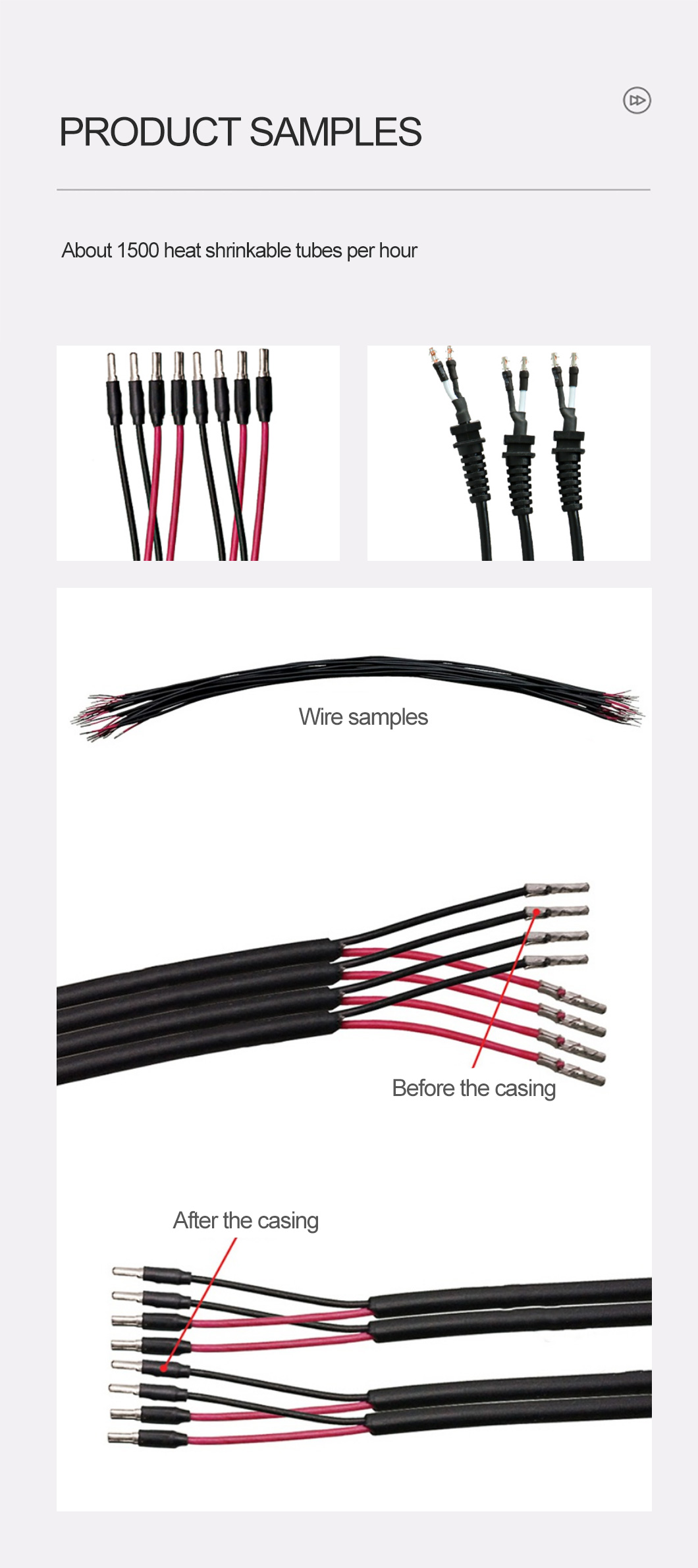

13. About 1500 heat shrinkable tubes per hour

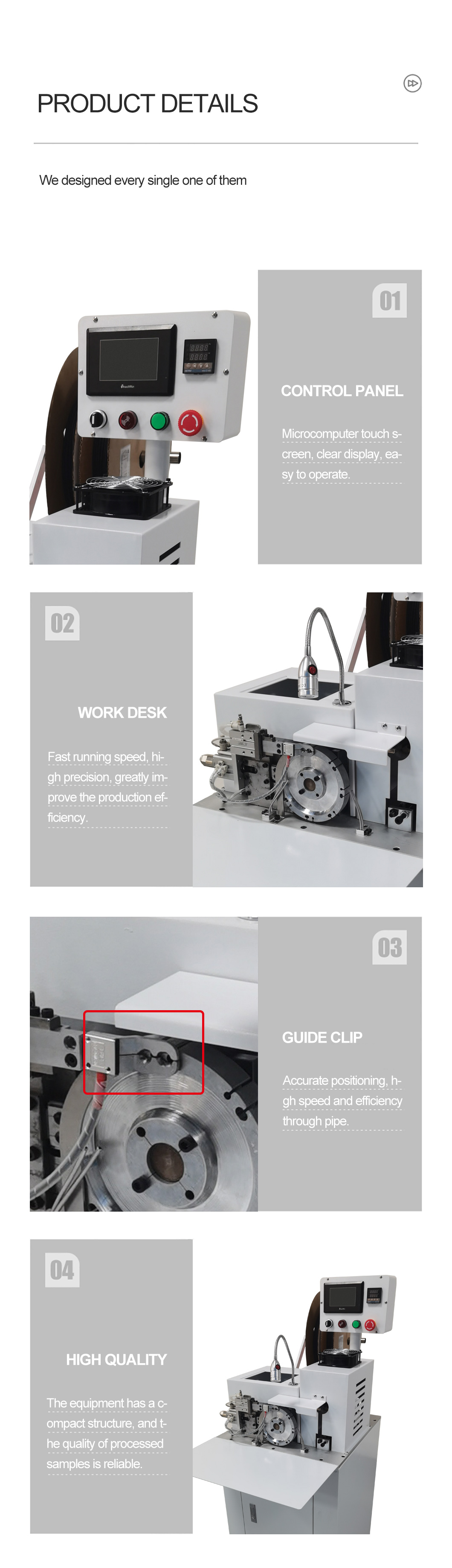

14. Control panel: Microcomputer touch Screen, clear display, easy to operate.

15. Work desk: Fast running speed, high precision, greatly improve the production efficiency.

16. Guide clip: Accurate positioning, high speed and efficiency through pipe.

HIGH QUALITY

17. High quality: The equipment has a Compact structure, and the quality of processed samples is reliable.



Work process:

Efficient operation of processed products

01. Send the pipe

The pipe feeder delivers the required length of casing and

adjusts the pressure.

02. Cut off

The pipe cutting mechanism will cut off the casing sent out

by the pipe feeding mechanism.

03. Threading

Manually run the wire through the boot clip and the boot clip

inserts the product into the sleeve.

04. Bake

The outlet can be directional adjusted to make efficient use

of heat energy.

05. Finished product

After baking, the guide clip can be opened to take out the

finished wire.



 Data Sheet:

VoltageAC220V
Power frequency50/60Hz
Rated power600W
Dimension500*750(containing tray)*1300 mm
Weight50 kg



WIRE STRIPPING MACHINE
