Overview introduction:

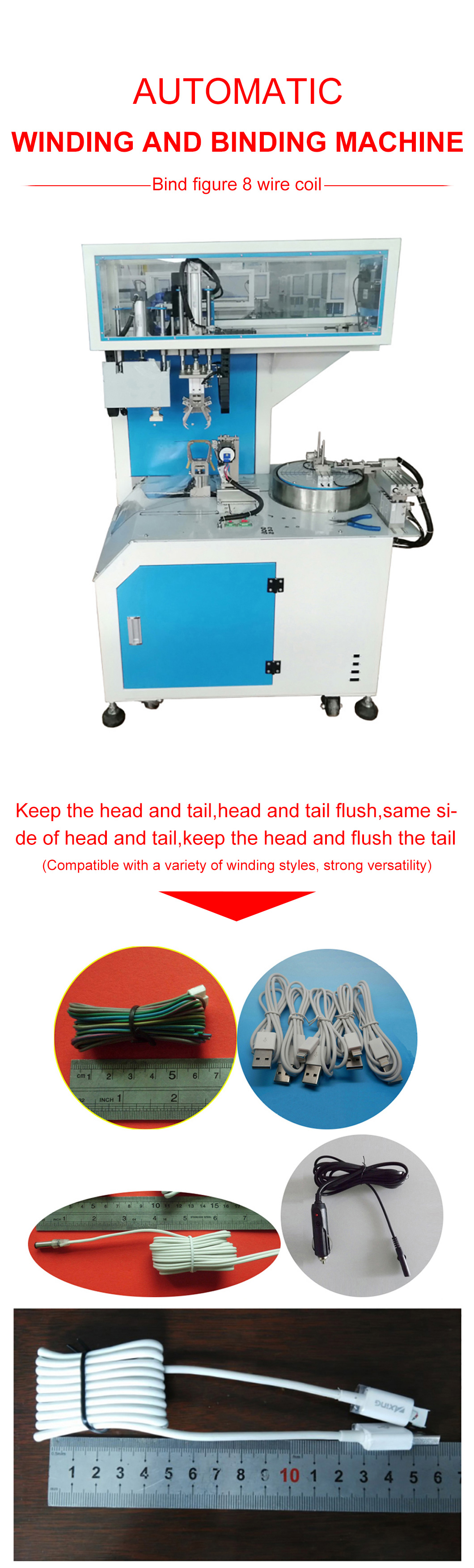

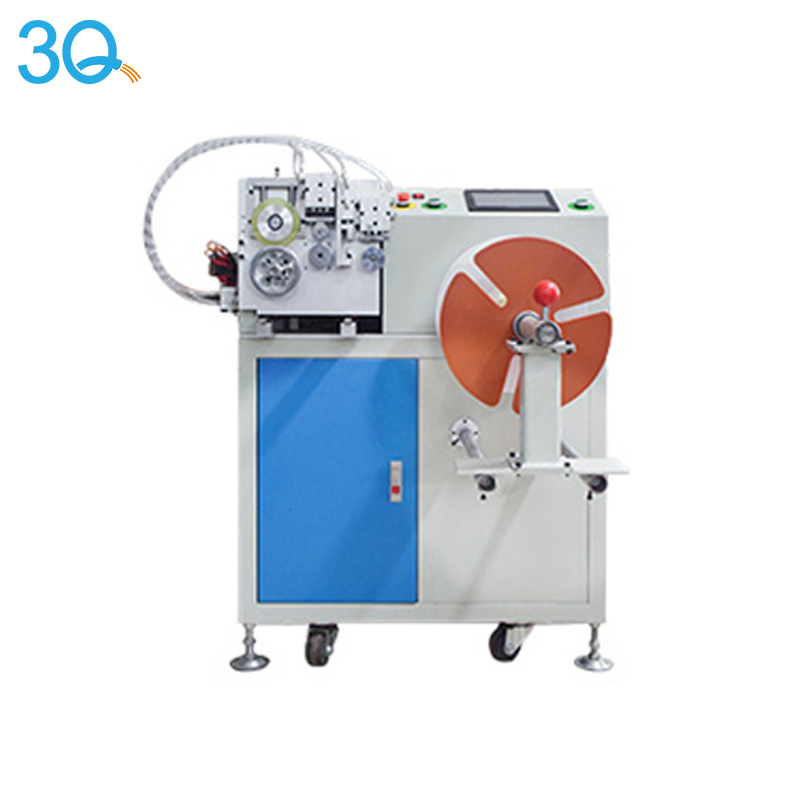

Product name: Automatic meter winding machine
Features:
1. Cut off
2. Meter/tie
3. Winding/rank
4. Adjustable speed
5. Adjustable circle diameter
6. PLC program control: Arbitrarily set the number of windings and the length of the wire.

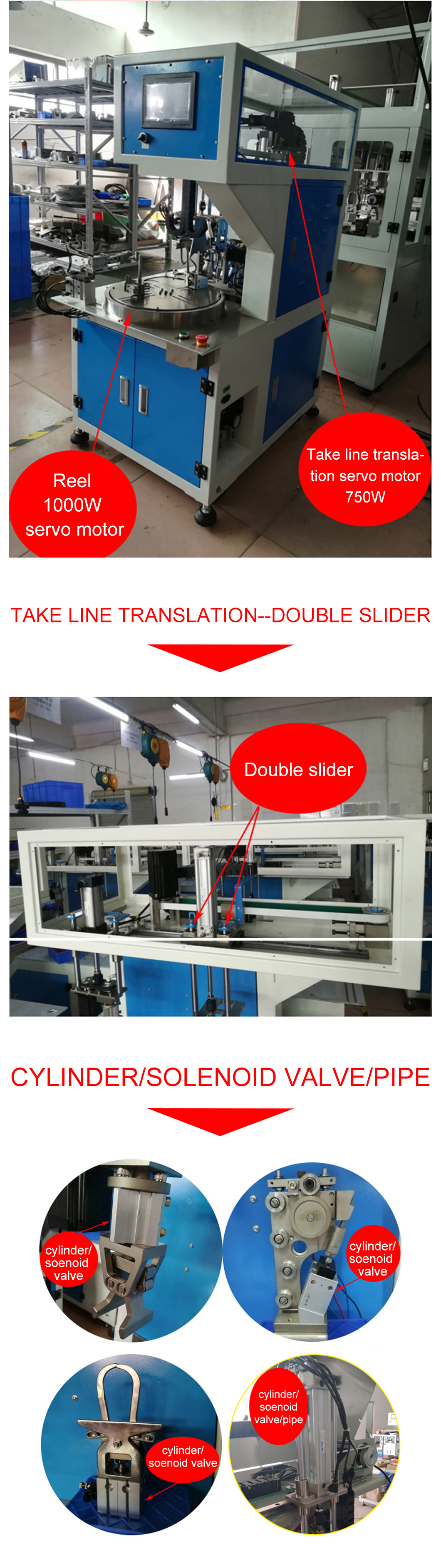

7. Stepper motor: High-speed rotating speed is electric driven, high efficiency

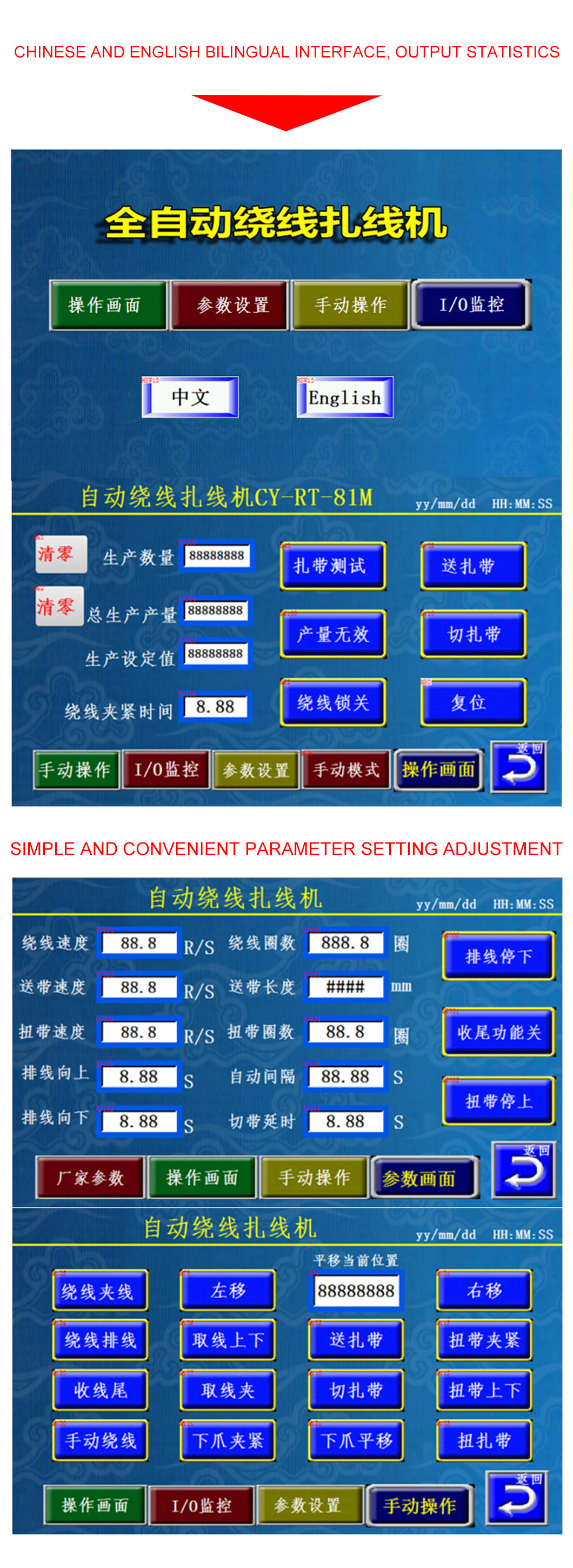

8. Touch screen panel: Intuitive and convenient to set the number of times, simple and 9

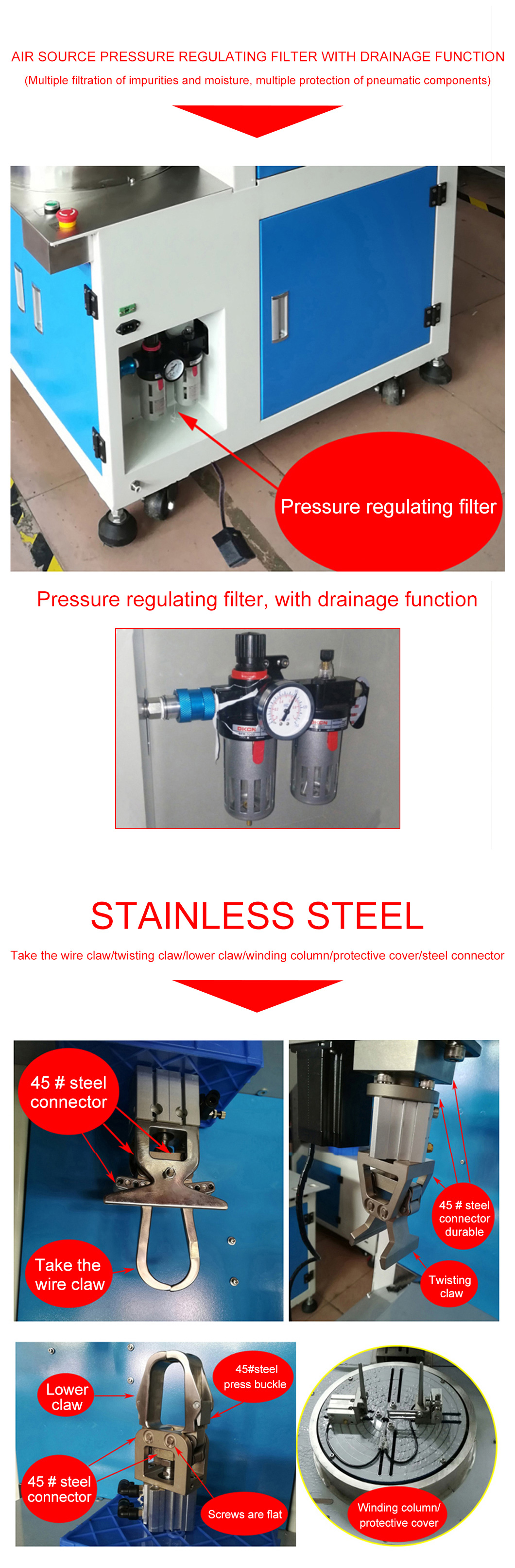

9. convenient operation: Imported steel. Anti-rust material, long life, imported steel material, strong and sturdy.
10. Imported steel: Anti-rust material, long life, imported steel material, strong and sturdy.
Data Sheet
| Model | Desktop type meter winding machine |
| Winding speed | 1-10 laps per second |
| Bundle diameter | 5-30 mm |
| Outer diameter of circle | Non-standard type
(Can be customized) |
| Rated power | <200W |
| Input voltage | AC220V 50/60HZ
(Special can be customized) |
| Winding error | 土25 mm |
| Equipment efficiency | Three strips per minute for 10 meters
(without cable tie) |
| Weight | About 40KG |
| Model | Desktop type meter winding and binding machine |
| Winding speed | 1-10 laps per second |
| Bundle diameter | 5-30 mm |
| Outer diameter of circle | Non-standard type
(Can be customized) |
| Rated power | <200W |
| Input voltage | AC220V 50/60HZ
(Special can be customized) |
| Winding error | 土25 mm |
| Equipment efficiency | Three strips per minute for 10 meters
(without cable tie) |
| Weight | About 45KG |

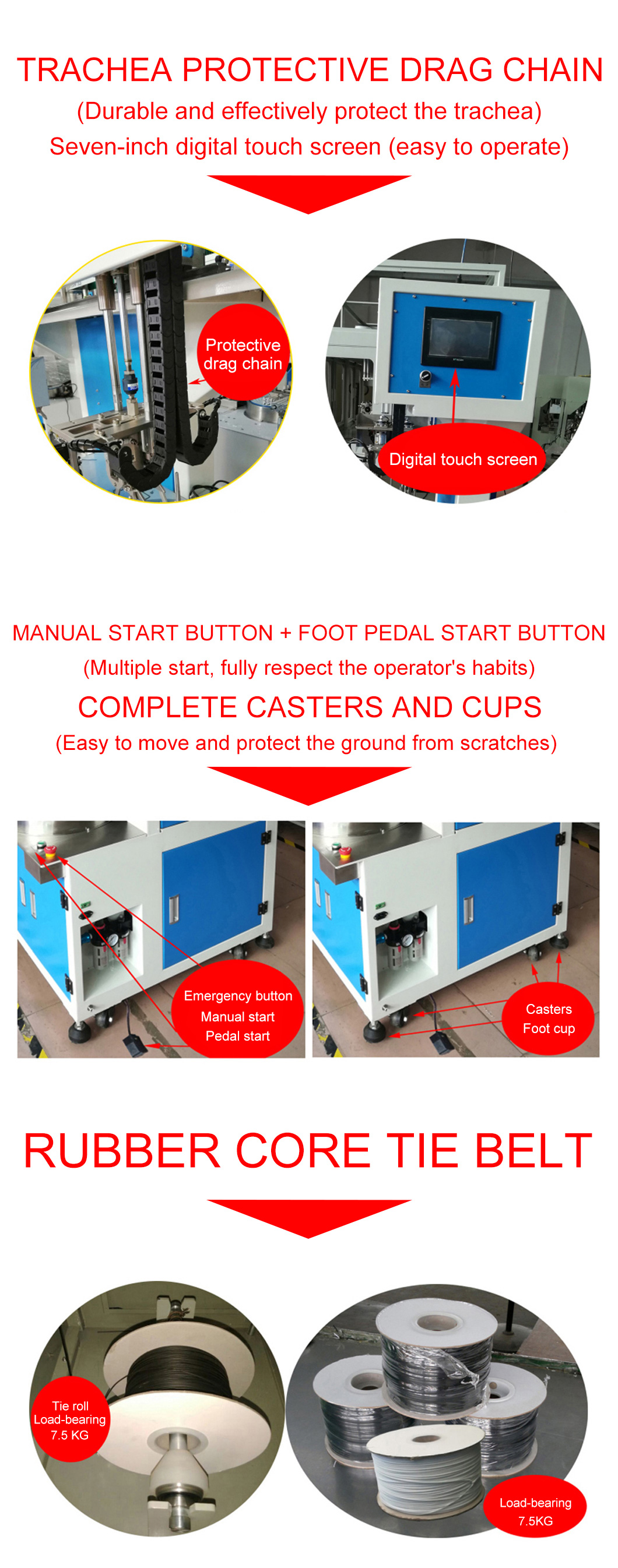

| Equipment tie | Rubberized iron core |
| Model | Floor type meter winding machine |
| Winding speed | 1-10 laps per second . |
| Inner diameter of winding | 50-280 mm |
| Outer diameter of circle | 350 mm |
| Rated power | <2500W |
| Input voltage | AC220V 50/60HZ
(Special can be customized) |
| Winding error | 土25MM |
| Winding load | <2.5KG |
| Weight | About 230KG |
| Equipment efficiency | Three strips per minute for 10 meters
(without cable tie) |
| Model | Floor-standing meter
winding and binding machine |
| Winding speed | 1-10 laps per second |
| Inner diameter of winding | 50-280 mm |
| Outer diameter of circle | 350 mm |
| Rated power | <2500W ! |
| Input voltage | AC220V 50/60HZ
(Special can be customized) |
| Winding error | 土25MM |
| Winding load | <2.5KG |
| Weight | About 235KG |
| Equipment efficiency | Three strips per minute for 10 meters
(without cable tie) |
| Equipment tie | Rubberized iron core |
