Overview introduction:

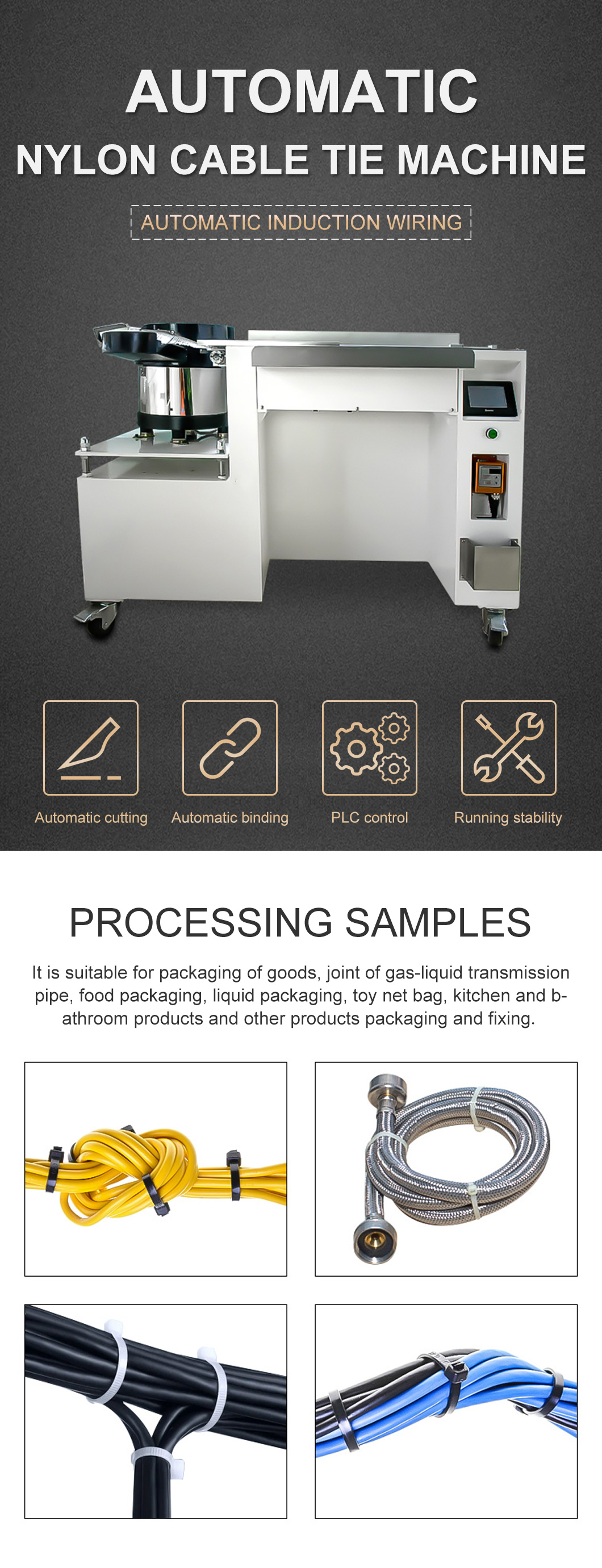

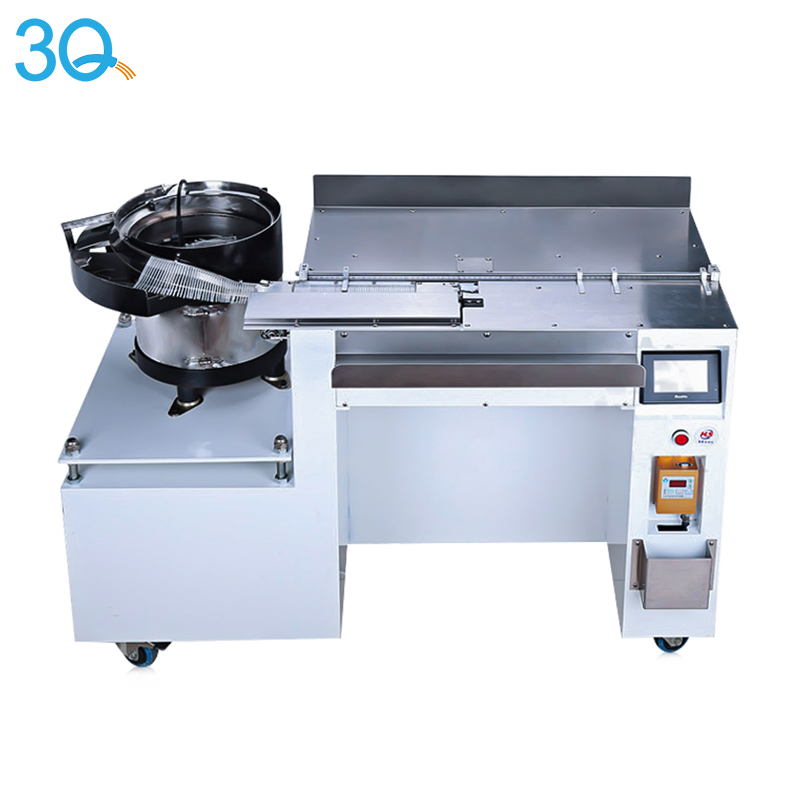

Product name: automatic nylon cable tie machine
Features:
1. Automatic induction wiring
2. Automatic cutting
3. Automatic binding
4. PLC control
5. Running stability

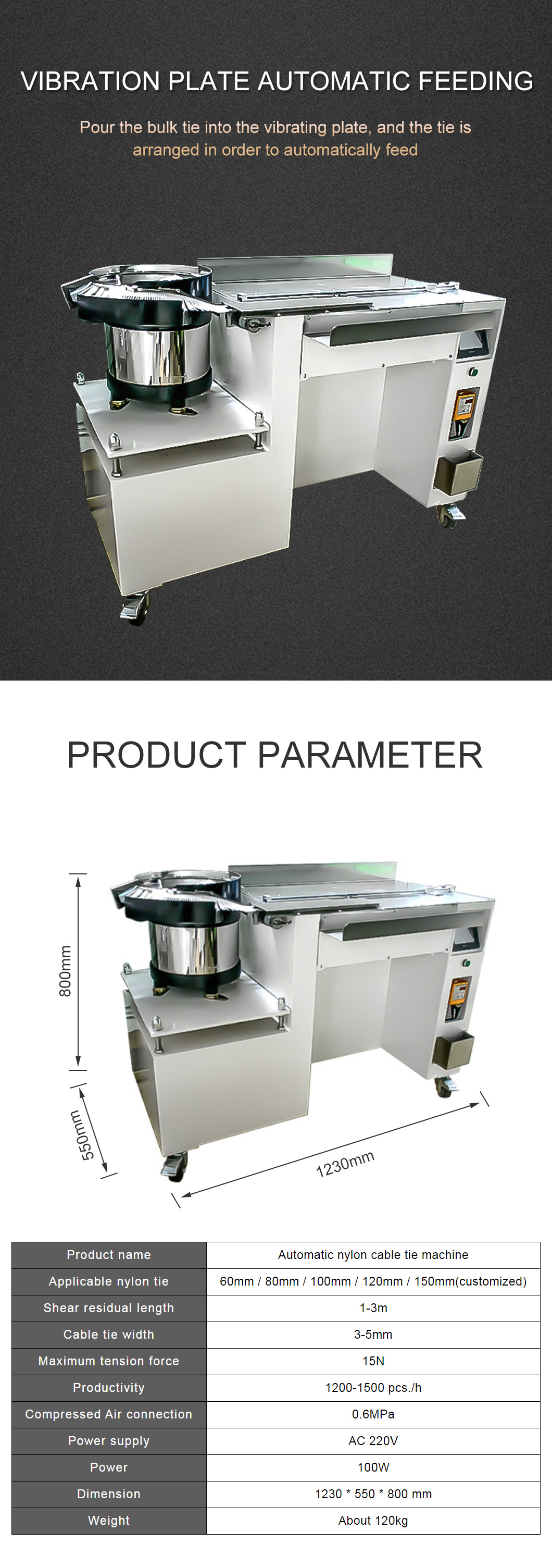

6. Vibration plate automatic feeding: Pour the bulk tie into the vibrating plate, and the tie is arranged in order to automatically feed
7. LCD touch screen: Simple and convenient operation, good stability.

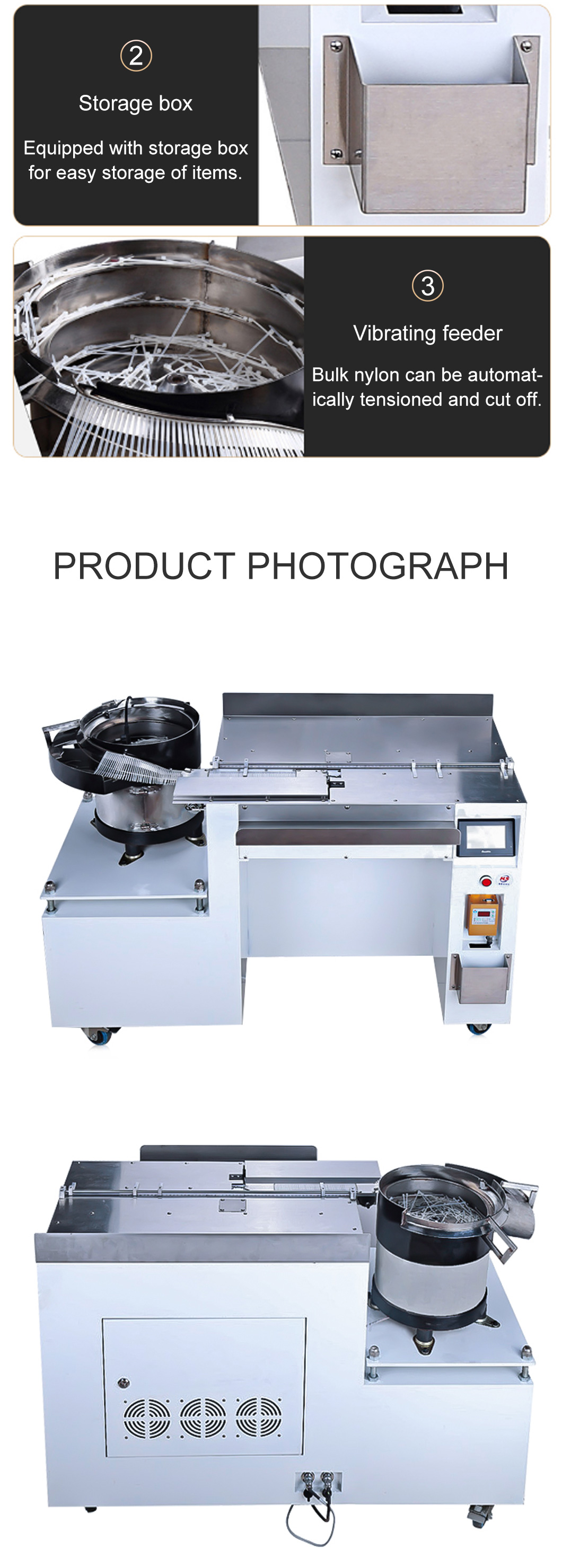

8. Storage box: Equipped with storage box for easy storage of items.
9. Vibrating feeder Bulk nylon can be automatically tensioned and cut off.
Application:
1. It is suitable for packaging of goods, joint of gas-liquid transmission pipe, food packaging, liquid packaging, toy net bag, kitchen and bathroom products and other products packaging and fixing.

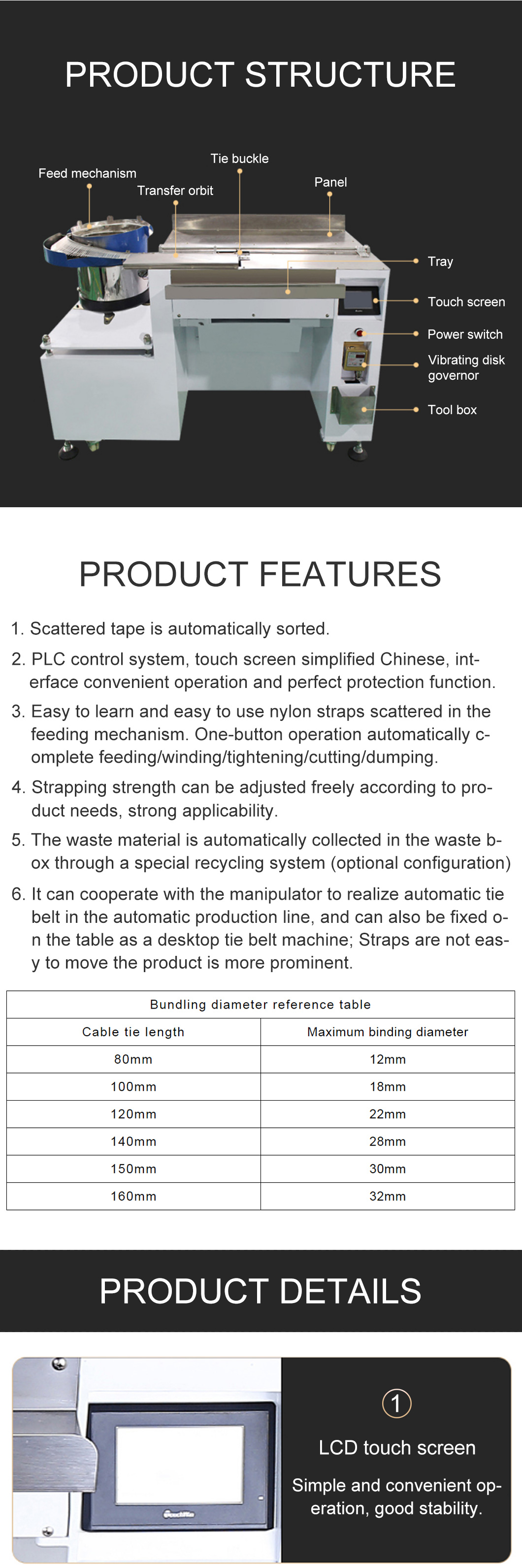

2. Scattered tape is automatically sorted.
3. PLC control system, touch screen simplified Chinese, interface convenient operation and perfect protection function.
4. Easy to learn and easy to use nylon straps scattered in the feeding mechanism. One-button operation automatically Complete feeding/winding/tightening/cutting/dumping.
5. Strapping strength can be adjusted freely according to product needs, strong applicability.
6. The waste material is automatically collected in the waste box through a special recycling system (optional configuration)
7. It can cooperate with the manipulator to realize automatic tie belt in the automatic production line, and can also be fixed 0n the table as a desktop tie belt machine; Straps are not easy to move the product is more prominent.
Data Sheet:
Product name | Automatic nylon cable tie machine |
Applicable nylon tie | 60mm / 80mm 1100mm / 120mm 1 150mm(customized) |
Shear residual length | 1-3m |
Cable tie width | 3-5mm |
Maximum tension force | 15N |
Productivity | 1200-1500 pcs./h |
Compressed Air connection | 0.6MPa |
Power supply | AC 220V |
P ower | 1 00W |
Dimension | 1230*550*800mm |
Weight | About 120kg |
Bundling diameter reference table | |
Cable tie length | Maximum binding diameter |
80mm | 1 2mm |
100mm | 18mm |
1 20mm | 22mm |
1 40mm | 28mm |
1 50mm | 30mm |
1 60mm | 32mm |
