Machine AccessoriesInstructions for Use of Smart Label Rewinder

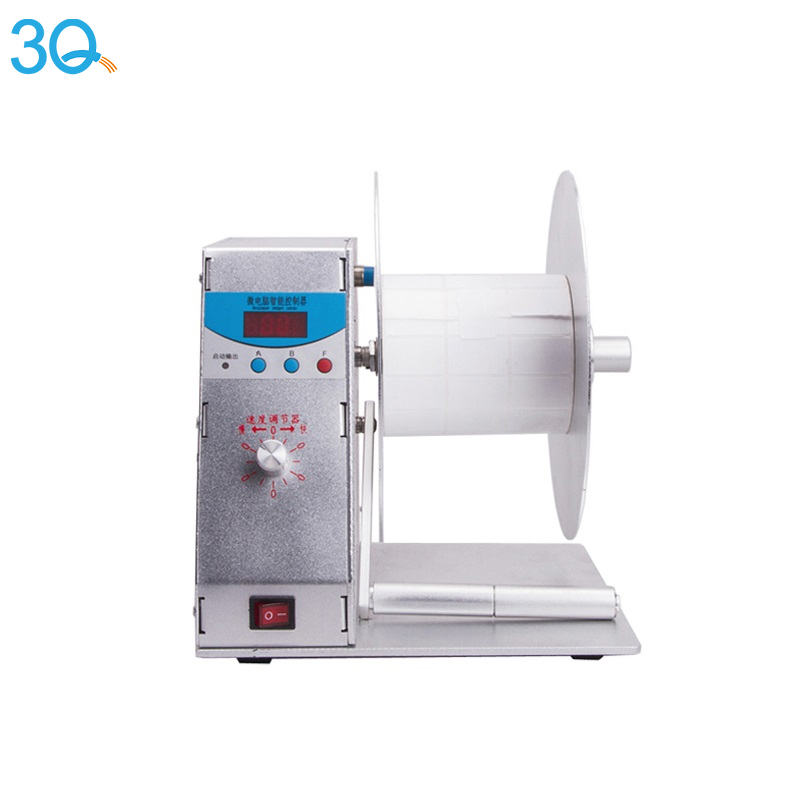

External Label Rewinder Overview Introduction
Product Name: smart label rewinder
Roll Label Rewinder Machine Features
1. model
2. color: White
3. Maximum width of rollable label: 11 5mm

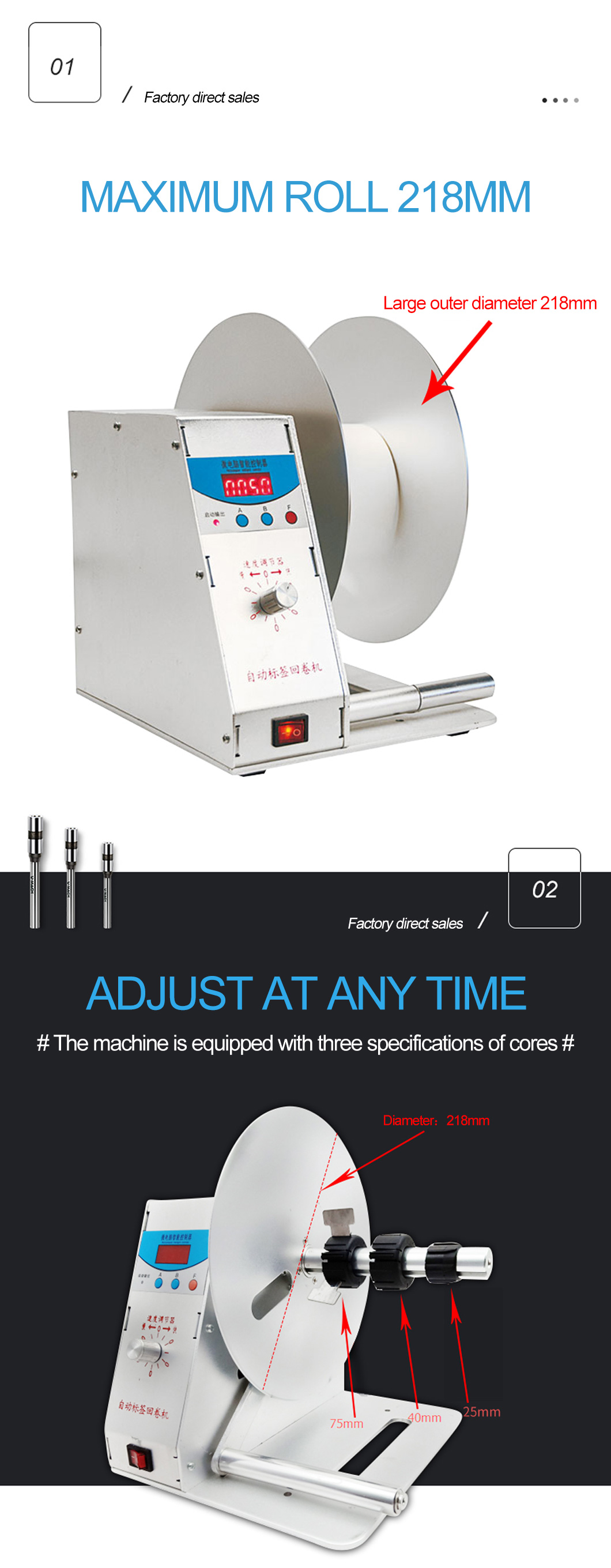

4. Maximum label outer diameter that can be rolled: 218mm
5. Inner diameter of label paper roll core: 25.4-26.5mm above 25mm
6. Rewind speed: adjustable speed
7. Functions include: manual rewinding, automatic rewinding, fixed quantity.
8. Two-way rewinding: rewind labels in the forward and reverse directions, the function can be selected
9. Maximum count: 9999
10. Sensor selection: mechanical magnetic control combination control, push type.
11. Power supply voltage: AC 220V (110V DSZ can be customized)
12. Approximate weight of the machine with packaging: about 3 kg
Usage OF Label Printer Rewinder

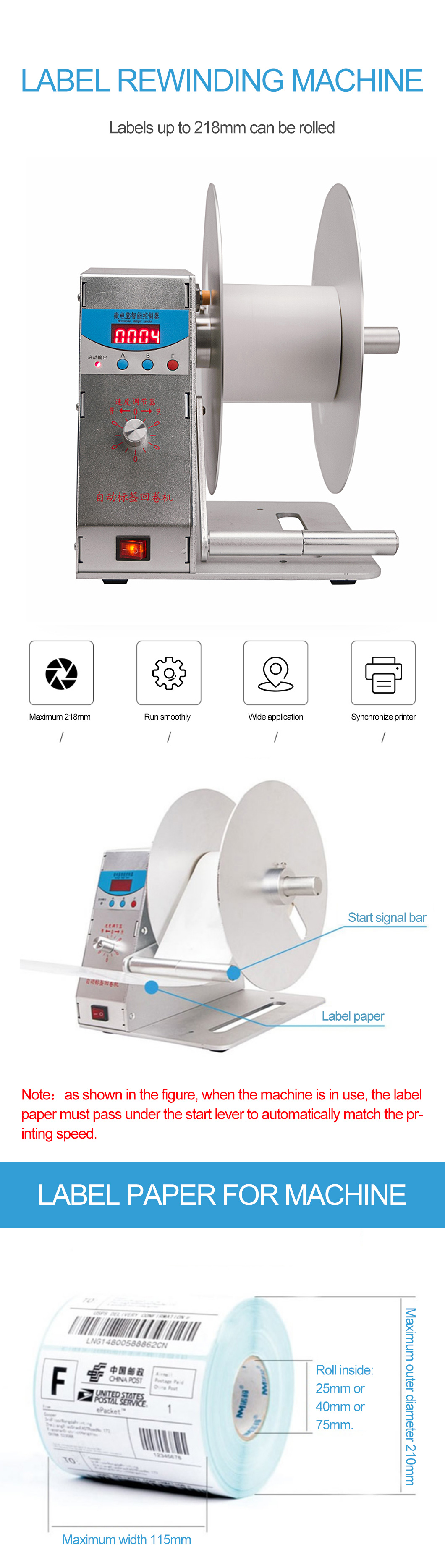

The function of this machine is to rewind the label tape printed by the label printer into a roll.

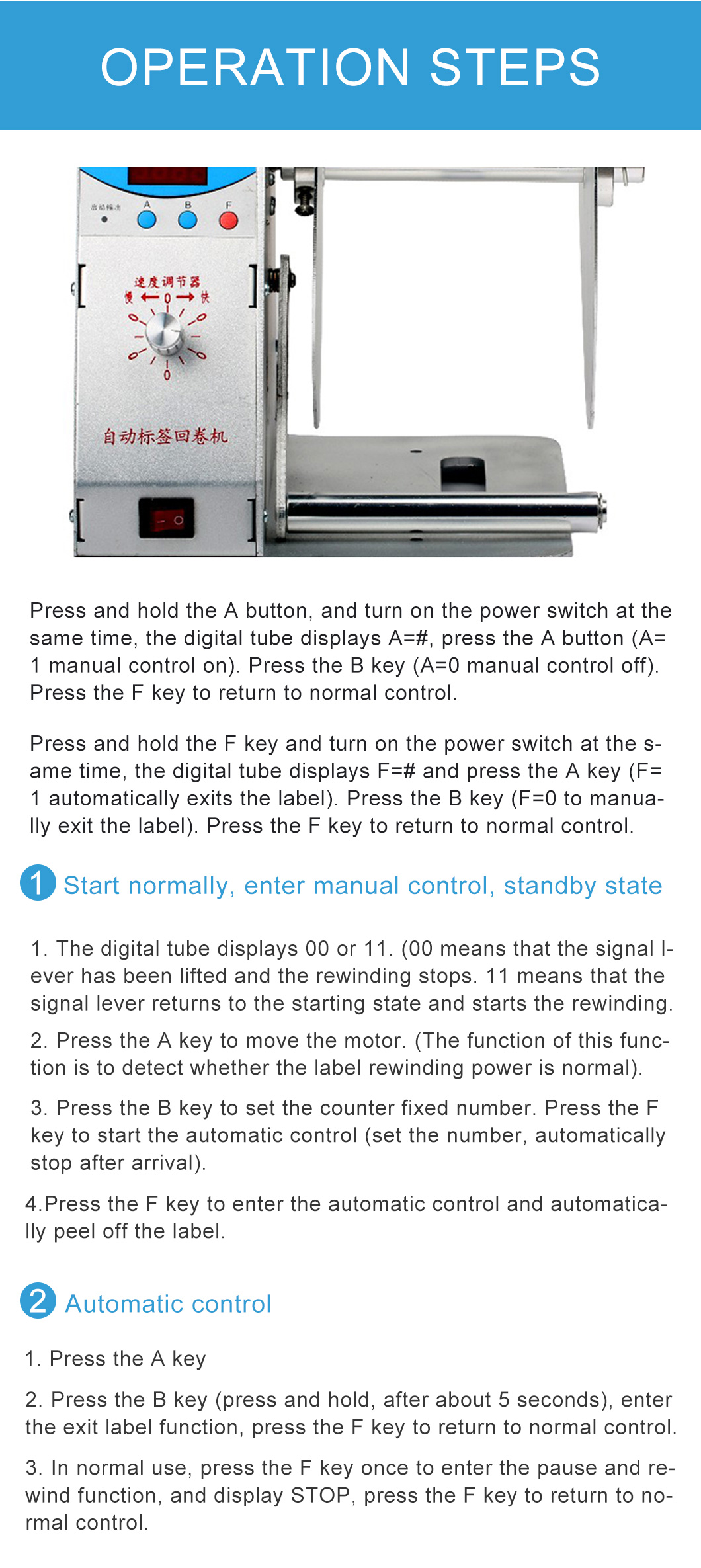

How To Use The Buttons of The Label Rewinder Machine
1. Press and hold the A button, and turn on the power switch at the same time, the digital tube displays A==#, press the A button (A==1 manual control on). Press the B key (A==0 manual control off). Press the F key to return to normal control.
2. Hold down the F key and turn on the power switch at the same time, the digital tube displays F==#, press the A key (F==1 automatically exit the label). Press the B key (F==0 to manually exit the label). Press the F key to return to normal control.
One: Start Normally, Enter Manual Control And Standby Mode OF Label Unwinder
1. The digital tube displays 00 or 11. (00 indicates that the signal lever has been lifted and the rewinding stops. 11 indicates that the signal lever returns to the starting state and starts the rewinding.
2. Press the A key to move the motor. (The function of this function is to detect whether the label rewinding power is normal)
3. Press the B key to set the counter fixed number. Press the F key to start automatic control (set the number, automatically stop after arrival)
4. Press the F key to enter the automatic control, automatically peel off the label, and automatically count.
Two: Automatic Control And Automatic Counting OF Table Top Rewinder
1. Press the A key to reset the counter
2. Press the B key (press and hold, after about 5 seconds), enter the exit label function, press the F key to return to normal control.
3. In normal use, press the F key once to enter the pause and rewind function, and display STOP, press the F key to return to normal control.

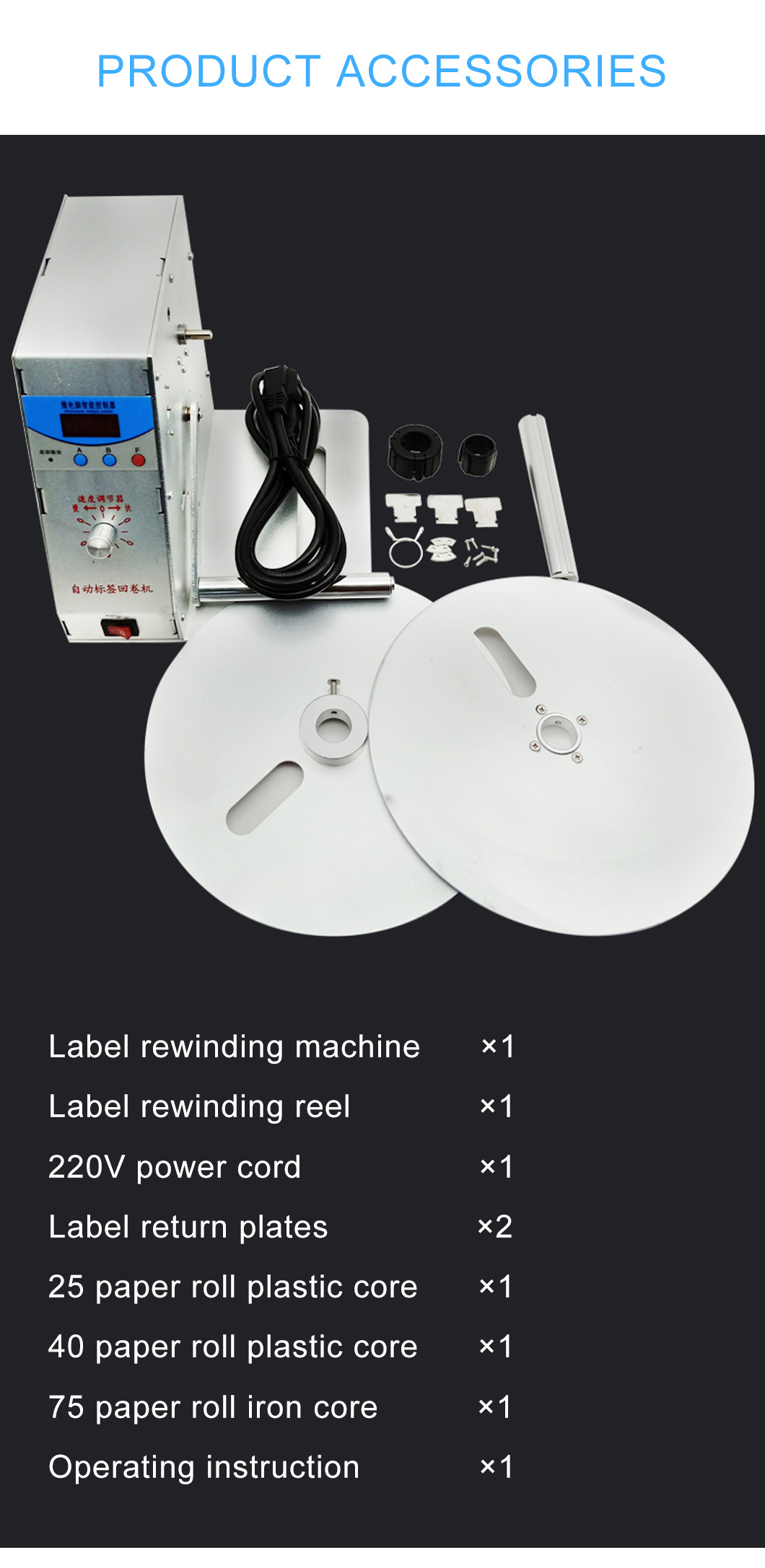

Packing List OF Label Winding Machine
1. Label rewinder-set
2. One 220V power cord
3. One label rewinding reel
4. Two round label baffles
5. A plastic core of 25 paper rolls
6. One 40 paper roll plastic core
7. One 75 paper roll iron core
8. One instruction manual

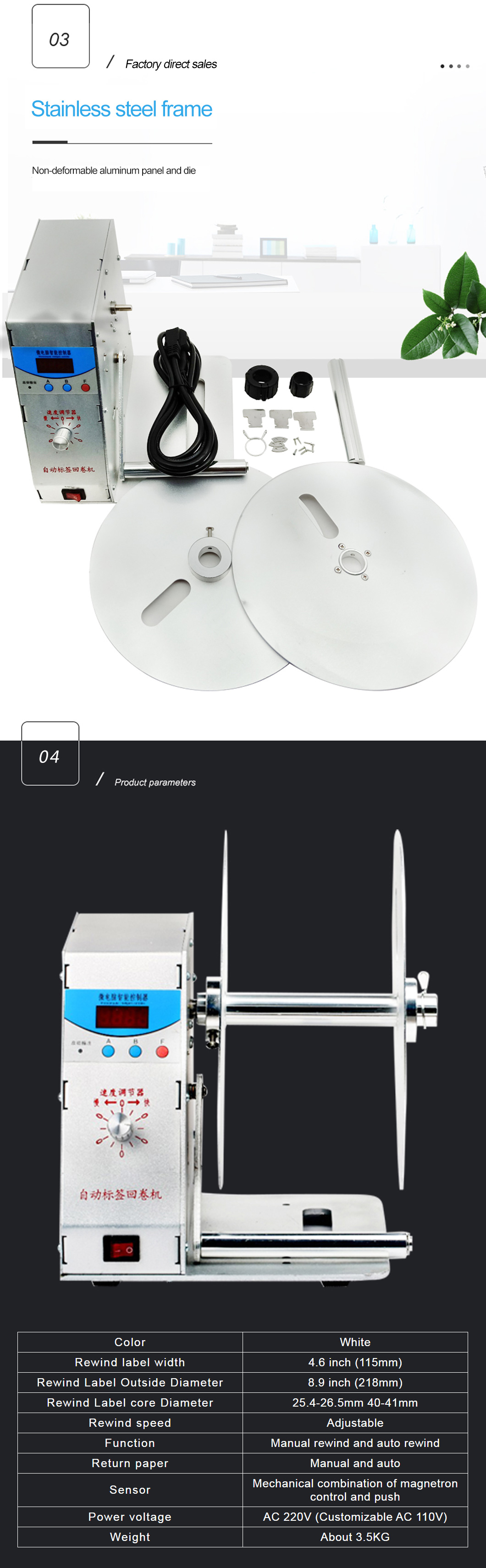

Data Sheet
| Model | 3QMachine automatic label rewinder |
| Color | White |
| Rewind label width | 4.6 inch (115mm) |
| Rewind label outside diameter | 8.9 inch (218mm) |
| Rewind label core diameter | 25.4-26.5mm,40-41mm |
| Rewind speed | Adjustable |
| Function | Manual rewinder and auto rewinder |
| Return paper | Manual and auto |
| Can it be used without a paper roll core | You can use the stainless steel U-shaped card to jam the label paper |
| Sensor | Mechanical magnetic control combination control, push type. |
| Power voltage | AC 220V (Customizable AC 110V) |
| Weight | About 3.5KG |
