3Q machine

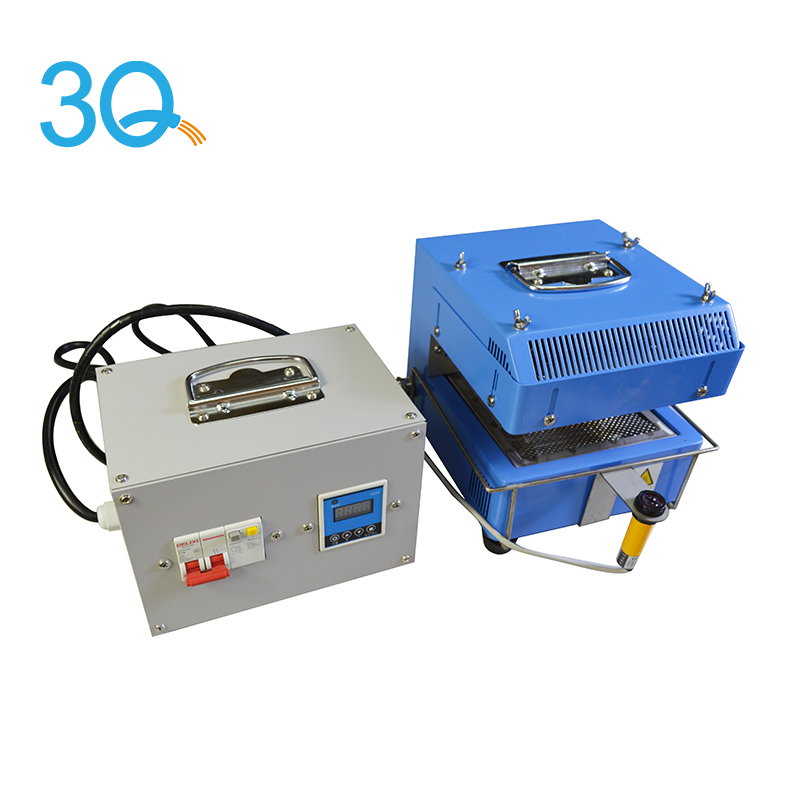

Product name:Automatic electric heat shrink tube heater.
Function:Suitable for heat shrink tube heating
Wire harness heating length:0-80mm, heating diameter:0-40mm
Feature:
1. Small volume
2. Light weight
3. Double-sided heating
4. Two controls
5. Free adjustment
6. 24 hours work

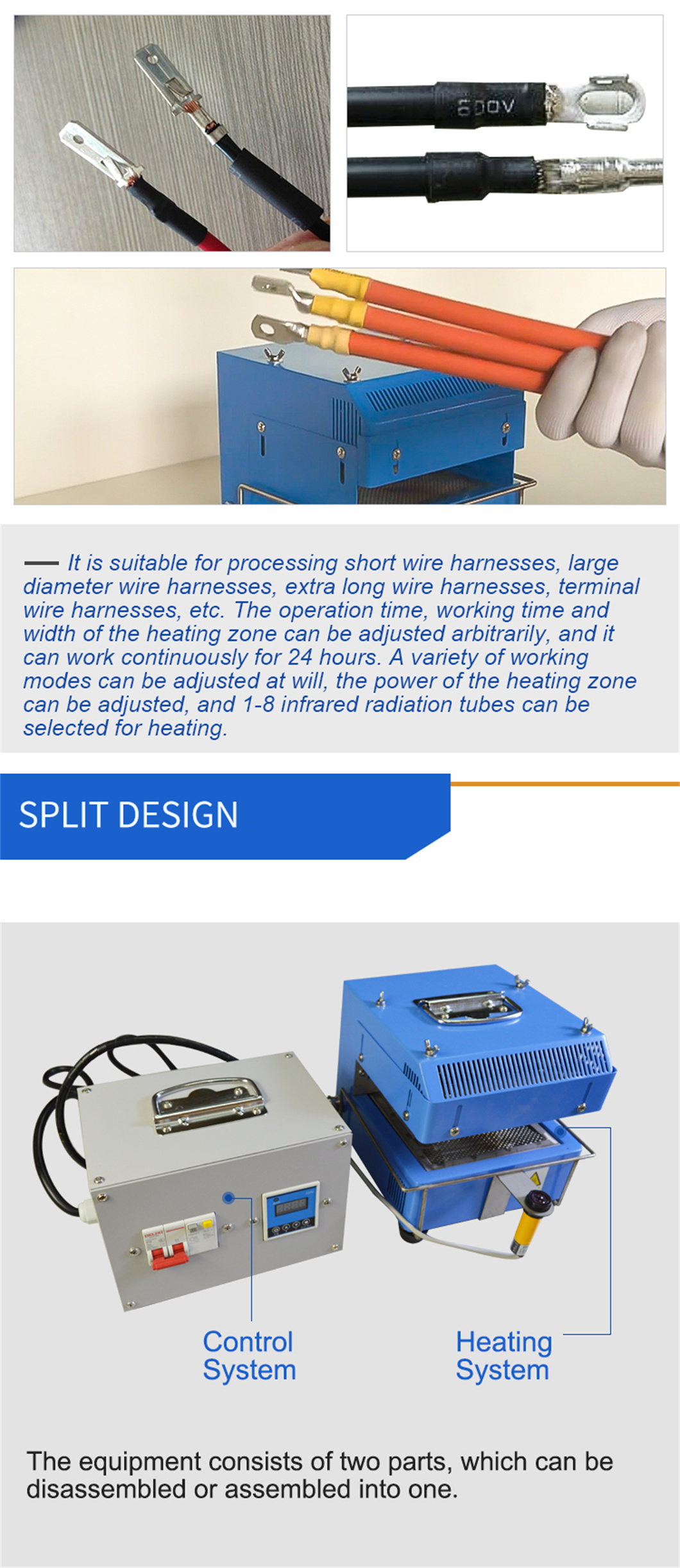

7. Split design: one control system and one heating system /The equipment consists of two parts, which can be disassembled or assembled into one.
Suitable areas:
It is suitable for processing short wire harnesses, large diameter wire harnesses, extra long wire harnesses, terminal wire harnesses, etc. The operation time, working time and width of the heating zone can be adjusted arbitrarily, and it can work continuously for 24 hours. A variety of working modes can be adjusted at will, the power of the heating zone can be adjusted, and 1-8 infrared radiation tubes can be selected for heating.
Data sheet:
Product name | Heat shrink tube heater |
Whole machine | 190x258x 180mm |
Control power | 194x 194x140mm |
Heating zone | 170x150x40mm |
Harness heating length | 0~80mm |
Harness heating diameter | 0~40mm |
Heating tube name | Infrared Radiant Tube |
Heating tube power max | 300W*6 (standard) |
Power Specifications | 220V |
Total power | 1900W (standard) |
Security Level | ground wire |
