Views: 317 Author: Site Editor Publish Time: 2022-03-17 Origin: Site
Stripper Bending Machine is automated equipment for cutting and stripping coaxial cables or coaxial cables. The advent and widespread use of Stripper Bending Machine are used to save labor and improve efficiency, and the stripping machine for coaxial cable was created.
What are the springs of the Stripper Bending Machine?
What accessories are supplied with the Stripper Bending Machine?
What should I pay attention to when using Stripper Bending Machine?

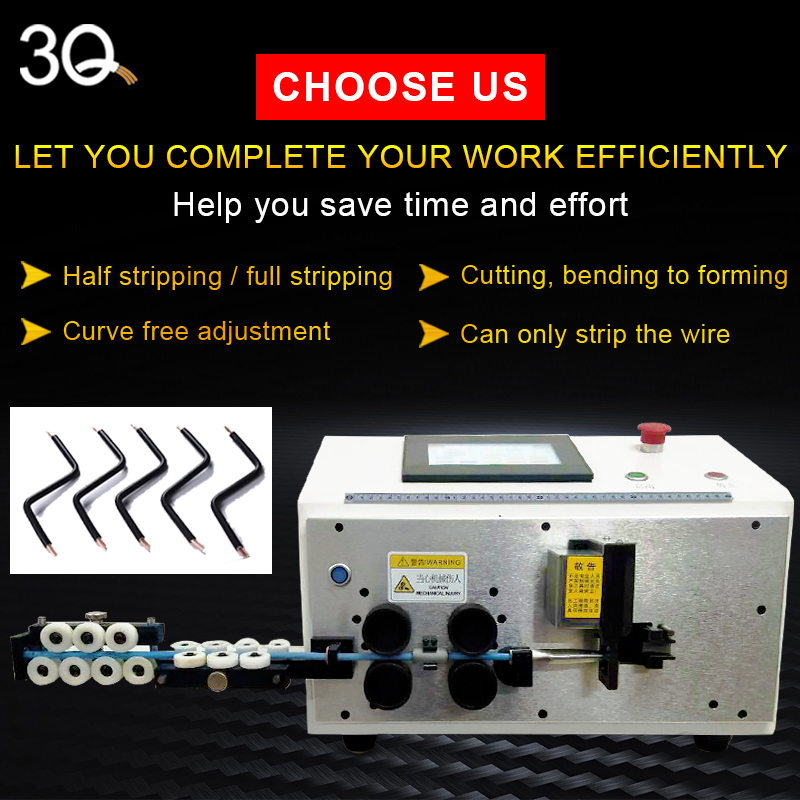

1. All-wheel drive at the same time
2. Cutting, stripping, bending
3. Running stability
4. Quality assurance
5. Easy to use
6. Efficient time savings
7. The machine can only strip the wire
8. Wire can be stripped or half stripped
9. Straightening, cutting, bending to forming
10. The degree of curvature can be adjusted freely
11. Microcomputer touch screen: Chinese-English switch to clear display
12. Metal Straightener: Improve the adhesion of the wire
13. Pneumatic valve device: High quality voltmeter
14. Dual cooling fan: Prevents machine heat
1. Thread feed lifting knob: lift the thread feed when the Stripper Bending Machine threads, turn the knob clockwise to lift the thread feed so that the wire can be passed smoothly; Lower the thread feed while working and turn the knob counterclockwise to lower the thread feed. Push the wire into the wire roller.
2. Adjust the gap of the outlet disc: Adjust the gap of the outlet disc for the Stripper Bending Machine. Turn the distance up to increase it and down to decrease it (adjusted to the thickness of the wire).
3. Adjust the pressure of the outlet wheel: Adjust the pressure of the outlet wheel for the Stripper Bending Machine. After pulling out, turn counterclockwise to increase the pressure of the exhaust wheel. After pulling it out, turn it clockwise to reduce the inlet wheel pressure. (It is determined according to the thickness of the wire skin of the wire, that is, the difficulty of insulating the wire skin of the wire stripping machine, the pressure increases when it is difficult, and the pressure decreases when it is easy.)
4. Lifting knob for wire outlet roller: lift the wire outlet wheel, when you take out the wire, turn the knob counterclockwise to lift the wire outlet wheel, so that the wire can be removed smoothly; Remove the wire outlet wheel while working and turn the knob clockwise to lower the wire outlet wheel. (In the short stripping process, the outlet drum should be raised)
5. Assembly of the tool holder: In the Stripper Bending Machine, it is responsible for cutting and stripping the head and end of the wire. When idle, the upper and lower blades must be maximally open so that the wire can be passed through the tool without any problems.
1. Turn on the power switch of the terminal crimping machine and the operating indicator lights up.
2. Be sure to hear any obvious abnormal noise inside or outside the Stripper Bending Machine. If operation is interrupted, ask the mechanic if it needs to be repaired.
3. Selection and installation of knife: It is operated by professionals. Before installing the knife, a technical comparison is required to see if the selected blade is suitable. After the comparison is correct, the knife can be installed. Power supply of crimping machine, maintenance of Stripper Bending Machine, press the adjustment button, use the special wrench to pivot the driven main wheel to bring the punching stroke of crimping machine to an extra large value. If the hand does not move, check if the pressure is too high or other Check in case of doubt and debug on OK. Before the operation, it is necessary to check the locking screws and ensure that they are not loose.
The Stripper Bending Machines are widely used in daily life and industrial production. Wenzhou Sanqi Technology Machinery Equipment Co., Ltd. can offer its customers the best Stripper Bending Machines.
